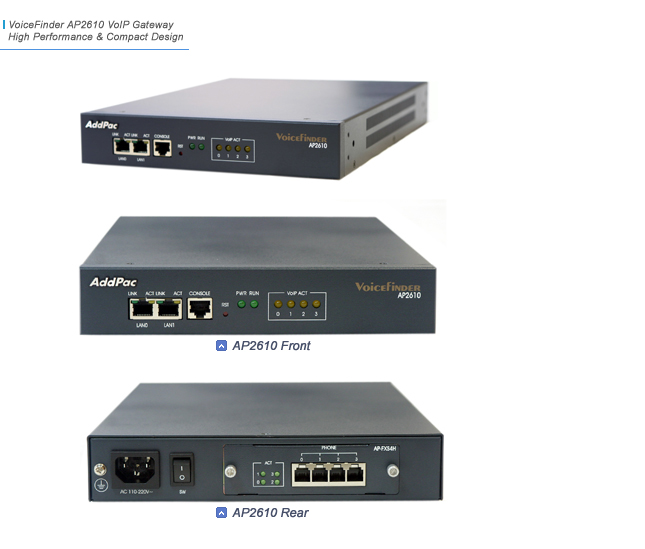

AP2610 VoIP 게이트웨이

고성능 PowerPC RISC Microprocessor Architectures

고성능 네트워크 모듈러 구조

One(1) Voice Interface Slots

VoIP 모듈

①
AP-FXS4

4-Port FXS Voice Processing Module (4 x RJ11)

②
AP-FXO4

4-Port FXO Voice Processing Module (4 x RJ11)

③
AP-E&M4

4-Port E&M Voice Processing Module (4 x RJ11)

④
AP-FXS4H
　
4-Port FXS4H Voice Processing Module (4 x RJ11)

⑤
AP-FXO2S2

2-Port FXO & 2-Port FXS Voice Processing Module
(4 x RJ11)

⑥
AP-FXS2P2
　
2-Port FXS Voice Interface & 2-Port PSTN Backup Interface Module(4 x RJ45)

⑦
AP-FXS3O1

3-Port FXS Voice Interface & 1-Port FXO Interface Module(4 x RJ11)

플래시 메모리 4MB, SDRAM 32MB

아날로그 보이스 인터페이스 모듈 FXS4, FXO4, FXS2O2, E&M4 등

2포트의 10/100Mbps 패스트 이더넷 인터페이스

SIP, H.323, MGCP 컨커런트 트리플 스택

Support Voice Processing Features
· VAD, DTMF,CNG,G.168, and T.38 G3 Fax Relay
· G.723.1,G.729A,G.711 Voice Compressions

High-performance IP-Routing Capability with Reliability

Static, RIP v1/2, OSPF v2 and IEEE 802.1Q VLAN Routing Protocols including VRRP

Traffic Queuing, and SNMP MIB v2 for Network Management Features

Standard & Extended Access List for Security Functions

Essential Scalability Features such as DHCP Server & Relay, NAT/PAT, IEEE Transparent Bridging,
· IP Accounting, and Debugging/Diagnostics, etc.
· DNSProxy Support
· UPnP Support
· MAC Address Filter Service

Routing 프로토콜	Static and IEEE 802.1Q VLAN Routing, RIP v1/v2, OSPF v2
WAN 프로토콜	Point-to-Point Protocol (PPPoE for ADSL),IPoA, PPPoA, HDLC, etc.
Voice over IP Services	H.323, SIP, and MGCP Triple Stack Support
	ISDN-PRI, R2, SS7* Signaling Protocol Support
	ITU-T H.323 v3 VoIP Protocol with ITU-T H.235 Security Feature
	SIP protocol support compliant with IETF RFC3261(or RFC2543)
	G.723.1, G.729.A, G.711 Voice Compressions
	Voice Processing Features Supports - VAD, DTMF, CNG, G.168 and T.38 FAX Relay
	ITU-T H.323 Gateway, Gatekeeper Support
	Enhanced QoS Management Features for Voice Traffics
Network Management	Standard SNMP Agent (MIB v2) Support
	Traffic Queuing and Frame-Relay Flow Control
	Remote Management using Console, Rlogin, Telnet
	Web based Managements using HTTP Server Interface
Security Functions	Standard & Extended IP Access List
	Access Control and Data Protections
	Enable/Disable for Specific Protocols
	Multi-Level User Account Management
	Auto-disconnect for Telnet/Console Sessions
	PPP User Authentication Supports → Password Authentication Protocol(PAP) → Challenge Handshake Authentication Protocol (CHAP)
Operation & Management	System Performance Analysis for Process, CPU, Connection I/F
	Configuration Backup & Restore for APOS Managements
	Debugging, System Auditing, and Diagnostics Support
	System Booting and Auto-rebooting with Watchdog Feature
	System Managements with Data Logging
	IP Traffic Statistics with Accounting
	PC based Key management scheme
Other Scalability Features	DHCP Server & Relay Functions
	Network Address Translation (NAT) Function
	Port Address Translation (PAT) Function
	Transparent Bridging (IEEE Standard) Function → Spanning Tree Bridging Protocol Support → Remote Bridging Support → Concurrent Routing and Bridging Support
	Cisco Style Command Line Interface(CLI)
	Network time Protocol(NTP) Support
