VoiceFinder AP1810은 컴팩트한 사이즈에 최대 8포트 아날로그 VoIP 인터페이스을 지원하는, BcN(Broadband convergence Network)을 겨냥한 차세대 VoIP 게이트웨이입니다. 1개의 음성 VoIP 슬롯에 다양한 아날로그 VoIP 모듈을 장착할 수 있어 확장성과 환경 적응성 측면에서 뛰어난 사양의 제품입니다. 아날로그 FXS, FXO VoIP 모듈은 4포트/8포트 모듈을 지원하고, E&M 모듈은 4포트 모듈을 지원합니다.
경제성과 확장성 동시에 만족
메트로 이더넷 등 브로드밴드 WAN 서비스의 급속한 확산은 기존 전화 서비스의 데이터망으로의 통합을 앞당기고 있습니다. VoIP 게이트웨이는 전화를 IP 네트워크로 통합하는 첫번째 단계이기 때문에 도입에 신중을 기해야 합니다. 부담 없는 가격에 높은 확장성과 검증된 기능의 제품을 선택해야 한다면AP1810에 주목하십시오. AP1810은 크게 보고 작게 시작할 수 있는 확실한 기회를 제공하는 차세대 VoIP 게이트웨이 입니다.
2개의 10/100Mbps 패스트 이더넷 지원
AP1810은 2개의 10/100Mbps 패스트 이더넷을 포트를 갖고 있습니다. 이는 LAN-to-LAN 라우팅 서비스, 브리지 서비스, NAT/PAT 서비스 등을 위한 애드팍 VoIP 게이트웨이 시리즈만의 차별화한 부분입니다.
높은 만족도의 통화 품질과 부가 서비스
애드팍의 다양한 VoIP 게이트웨이 시리즈는 한국은 물론, 세계 시장에서 그 성능과 안정성을 인정받고 있습니다. 애드팍이 그동안 엔터프라이즈 시장과 통신 사업자 시장에서 쌓은 경험과 노하우가 스며들어 있는 AP1810은 고품질 VoIP 서비스를 원하는 고객의 요구를 충족하기 위한 다양한 서비스 측면에서도 높은 만족을 드릴 것입니다. 우선 VoIP 호 제어 프로토콜 측면에서AP1810은 H323, SIP등을 컨커런트하게 지원합니다. 또한 어떠한 네트워크 환경에서도 우수한 통화품질을 지원하기 위해 일반 QoS(Quality of Service) 알고리즘에 애드팍 고유의 QoS 알고리즘을 더했습니다.

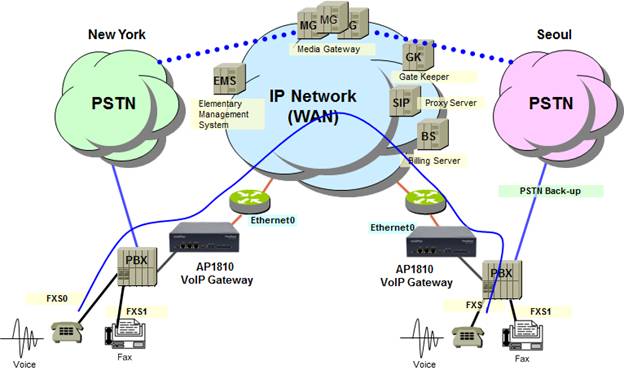

Network Diagram
High performance PowerPC RISC Microprocessor Architectures
High-performance VoIP Modular Architecture
Two(2) Voice Interface Slots
①
AP-N1-FXS8
8-Port FXS Voice Processing Module (8 x RJ11)
②
AP-N1-FXO8
8-Port FXO Voice Processing Module (8 x RJ11)
③
AP-N1-FXO4S4
4-Port FXO & 4-Port FXS Voice Processing Module(8 x RJ11)
④
AP-N1-FXS4
4-Port FXS Voice Processing Module (4 x RJ11)
⑤
AP-N1-FXO4
4-Port FXO Voice Processing Module (4 x RJ11)
⑥
AP-N1-E&M4
4-Port E&M VoIP Interface Module(4 x RJ45)
Supports maximum 8-port analog interface
Flash Memory: 512Mbyte NAND, Main Memory : DDR2 128MB
Analog voice interface module: 8-Port FXS VoIP Module, 8-Port FXO VoIP Module, 4-Port FXS 4-Port FXO VoIP Module
Two port 10/100Mbps Fast Ethernet interface
SIP, H.323, MGCP concurrent triple stack
Support Voice Processing Features
- VAD, DTMF,CNG,G.168, and T.38 G3 Fax Relay
- G.723.1,G.729A,G.711 Voice Compressions
High-performance IP-Routing Capability with Reliability
Static and IEEE 802.1Q VLAN Routing Protocols including VRRP
Traffic Queuing, and SNMP MIB v2 for Network Management Features
Standard & Extended Access List for Security Functions
Essential Scalability Features such as DHCP Server & Relay, NAT/PAT, IEEE
Transparent Bridging,
IP Accounting, and Debugging/Diagnostics, etc.
- DNSProxy Support
- UPnP Support
- MAC Address Filter Service
Microprocessor
PowerPC RISC Microprocessor
Memory
Flash Memory
512Mbyte NAND
Main Memory
128Mbyte DDR2
Network Interface Module
Fixed LAN0 Port
One(1) 10/100Mbps Fast Ethernet
Fixed LAN1 Port
One(1) 10/100Mbps Fast Ethernet
Console Port
One(1) RS-232C Interface
Voice Interface Module
AP-N1-FXS8
8-Port FXS Voice Processing Module (8 x RJ11)
AP-N1-FXO8
8-Port FXO Voice Processing Module (8 x RJ11)
AP-N1-FXO4S4
4-Port E&M Voice Processing Module (4 x RJ11)
AP-N1-FXS4
4-Port FXS Voice Interface Module (4 x RJ11)
AP-N1-FXO4
4-Port FXO Voice Interface Module (4 x RJ11)
AP-N1-E&M4
4-Port E&M Voice Interface Module (4 x RJ45)
Power Requirement
VAC 110~220V, 50/60Hz, 5V 8A
Operating Temperature
0°C to + 50°C (32° to 122°F)
Storage Temperature
-40°C to + 85°C (-40° to 176°F)
Relative Humidity
5% to 95% (Non-condensing)
Dimension(H x W x D)
60mm x 214mm x 266mm
Weight(kg)
2.14Kg
Routing Protocol
IPv4 Static and IEEE 802.1Q VLAN Routing
Basic Network Protocols
ARP, IPv4, TCP, UDP, ICMP, SCTP, IGMP, MLD
Voice over IP Services
H.323, SIP, and MGCP Triple Stack Support
ISDN-PRI, R2 Signaling Protocol Support
ITU-T H.323 v3 VoIP Protocol with ITU-T H.235 Security
Feature
SIP protocol support compliant with IETF RFC3261(or RFC2543)
G.723.1, G.729.A, G.711 Voice Compressions
Voice Processing Features Supports
- VAD, DRMF, CNG, G.168 and T.38 FAX Relay
ITU-T H.323 Gateway, Gatekeeper Support
Enhanced QoS Management Features for Voice Traffics
System Performance Analysis for Process, CPU, Connection I/F
Configuration Backup & Restore for APOS Managements
Debugging, System Auditing, and Diagnostics Support
System Booting and Auto-rebooting with Watchdog Feature
System Managements with Data Logging
IP Traffic Statistics with Accounting
Other Scalability Features
DHCP Server & Relay Functions
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging (IEEE Standard) Function
→ Spanning Tree Bridging Protocol Support
→ Remote Bridging Support
→ Concurrent Routing and Bridging Support
