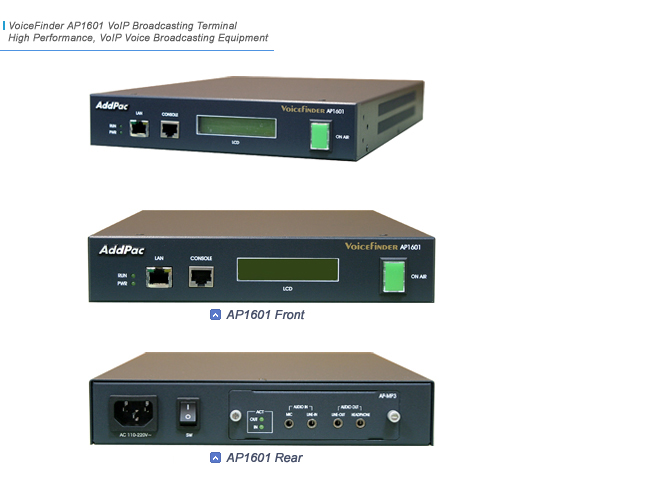

AP1601 IP 방송터미널

High-end 32bit RISC Microprocessor Architecture

High-performance Modular Architecture

· One(1) Analog Voice Interface Slot

　　

Broadcasting Module

①
AP-AUDIO2

AP-AUDIO2 Audio Processing Module(4 x 3.5mm Female)

②
AP-AUD1S3

AP-AUD1S3 Audio/Voice Processing Module
(2 x 3.5mm Female/ 3 x RJ11)

③
AP-AUD1S2O1

AP-AUD1S2O1 Audio/Voice Processing Module
(2 x 3.5mm Female/ 3 x RJ11)

④
AP-MP3

Audio Processing Module(4 x 3.5mm Female)

⑤
AP-HQA

High Quality VoIP Audio Broadcasting Interface Module
(2 x 3.5mm Female/ PSB)

⑥
AP-AV500

Video & Audio Encoder/Decoder Interface Module
(2 × 3.5mm Female/ 2×BNC·RCA/ PSB)

VoIP Module

①
AP-FXS4

4-Port FXS Voice Processing Module (4 x RJ11)

②
AP-FXO4

4-Port FXO Voice Processing Module (4 x RJ11)

③
AP-E&M4

4-Port E&M Voice Processing Module (4 x RJ11)

④
AP-FXO2S2

2-Port FXO & 2-Port FXS Voice Processing Module
(4 x RJ11)

　

IGMP Multicasting Routing Protocols

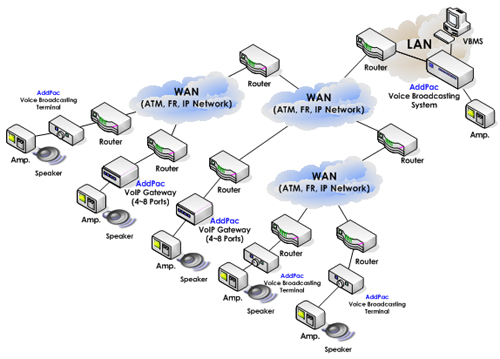

Support Multiple PTP (Point-to-Point) based Voice Broadcasting Service Scheme

Support Multicast Routing Protocol based Voice Broadcasting Service Scheme

Web based Managements using HTTP sever

Multi-protocol Routing Solutions between WAN and LAN Access with H.323 and SIP based VoIP Protocol

　 ITU-T H.323 v3 VoIP Protocol with ITU-T H.235 Security Feature

　 SIP protocol support compliant with IETF RFC3261 (or RFC2543)

　 Supports Triple stack of H.323, SIP and MGCP

AddPac APOS Internetworking Software to provide Scalability, Functionality, Stability, and QoS Control

　 Static, RIP v1/v2, OSPF v2, and IEEE 802.1Q VLAN Routing Protocols

Standard SNMP Agent (MIB v2) Support for Network Management

Standard & Extended Access List for Security Functions

　 Essential Scalability Features such as DHCP Server & Relay, NAT/PAT, IEEE Transparent Bridging, IP Accounting, and Debugging/ Diagnostics, etc.

Remote Software Upgrade using FTP & TFTP

Internal Power Supply Unit

Routing Protocol Service	Static
	RIP v1/v2
	OSPF v2, and IEEE 802.1Q VLAN Routing
	IGMP Protocol, Multicasting Join
Voice over IP Service	Supports VoIP based Voice Broadcasting Terminal Function
	Supports Multiple Point-to-Point(PTP) VoIP based Voice Broadcasting Terminal service
	ITU-T H.323 v3 VoIP Protocol with ITU-T H.235 Security Feature
	SIP protocol support compliant with IETF RFC3261(or RFC2543)
	Supports Triple stack of H.323, SIP and MGCP
	ITU-T H.323 Gateway, Gatekeeper Support
	Supports Session Initiation Protocol (SIP)
	Supports the G.723.1, G.729.A, G.711 Voice Compression Algorithms using High Performance DSP
	Voice Processing Feature Supports → VAD(Voice Activity Detection) → T.38 G3 FAX Relay → DTMF(Dual Tone Multi Frequency) → CNG (Comfort Noise Generation) →G.168 Echo Cancellation
	Enhanced QoS Management Features for Voice Traffics
	IP packet filtering function
Security Functions	Standard & Extended IP Access List
	Enable/Disable for Specific Protocols
	Multi-Level User Account Management
	Auto-disconnect for Telnet/Console Sessions
Network Managements	Standard SNMP Agent (MIB v2) Support
	Remote Management using Console, Rlogin, Telnet
	Web based Management using HTTP Server Interface
	Traffic Queuing
Other Scalability Features	DHCP Server & Relay Functions
	IP Accounting
	Transparent Bridging (IEEE Standard) Function → Spanning Tree Bridging Protocol Support → Remote Bridging Support → Concurrent Routing and Bridging Support
	Port Address Translation(PAT) Support
	Network Address Translation(NAT) Support
	Cisco Style Command Line Interface(CLI) Support
	Network Time Protocol(NTP) Support
	Remote Software Upgrade using FTP & TFTP
