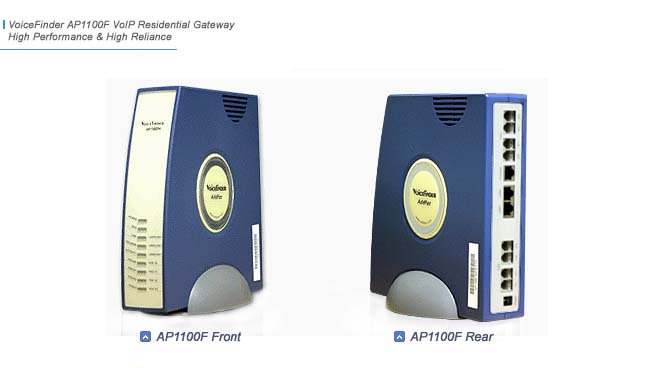

VoiceFinder AP1100F VoIP Residential Gateway는 기업, 관공서, SMB(Small Medium Business) 및 SOHO 환경에서 인터넷을 이용한 음성통화를 지원하여 저렴한 가격으로 전화를 이용할 수 있게 하여주는 VoIP 제품입니다. 이 제품은 최신의 음성 압축 알고리즘과 AddPac의 특허 기술인 고유의 QoS알고리즘을 사용하여 고속의 회선 뿐 아니라 저속의 인터넷 회선에서도 음성의 품질을 최상으로 유지하게 하여 줍니다. 또한 이 제품은 사용자의 요구에 따라 FXS, FXO 등의 다양한 음성 인터페이스 포트를 제공하여 고객의 환경에 맞는 최적의 구성이 가능하게 하여 줍니다.
VoiceFinder AP1100F VoIP Residential Gateway는 전용선 환경 뿐 아니라, ADSL환경, Cable환경 등 고정 IP Address 및 유동 IP환경 모두를 지원하여 사용자 환경에 적절한 선택을 할 수 있으며, Static, Default 라우팅 기능과 NAT/PAT등의 인터넷 어플리케이션 기능을 제공하여, IP 공유기 기능과 VoIP Gateway기능을 한 Platform에서 제공하므로, 초고속 인터넷 접속 환경에서 가장 경제적이고 효과적인 솔루션을 제공하는 제품입니다.

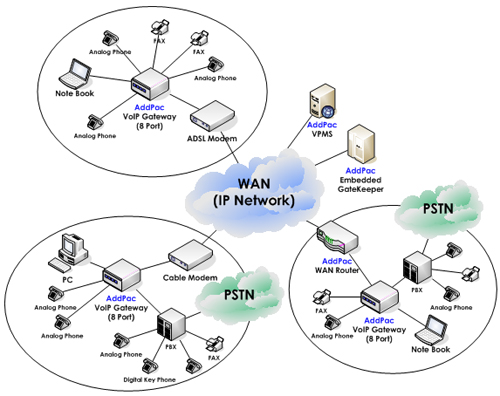

Network Diagram
Powerful 32bit RISC Microprocessor Architectures
One(1) 10Mbps Ethernet Interfaces
One(1) 10/100Mbps Fast Ethernet Interfaces
8-Port FXS Analog Voice Interfaces(AP1100F-S8 Model)
8-Port FXO Analog Voice Interfaces(AP1100F-O8 Model)
4-Port FXS, 4-Port FXO Analog Voice Interfaces(AP1100F-S4O4 Model)
Standard High-performance VoIP Gateway for Voice Networking
Applications
Multi-protocol Routing Solutions between WAN and LAN Access
with H.323 based VoIP Protocol
ITU-T H.323 v3 VoIP Protocol with ITU-T H.235 Security
Feature
SIP protocol support compliant with IETF RFC3261 (or RFC2543)
H.323, SIP, and MGCP triple stack support
AddPac APOS Internetworking Software to provide Scalability,
Functionality, Stability, and QoS Control for AddPac VoIP Gateway
High-performance IP-Routing Capability with Reliability
Static, Default IP-Routing and IEEE 802.1Q VLAN Routing
Protocols
High-performance IP-Routing Capability with Reliability
Point to Point Protocol for ADSL based Broadband Network
Enhanced QoS Managements for Voice Traffic
SNMP MIB v2 for Network Management Features
Essential Scalability Features such as DHCP Server & Relay,
NAT/PAT, IEEE Transparent Bridging, IP Accounting, and Debugging/
Diagnostics, etc.
Remote Software Upgrade using FTP & TFTP
Graceful Compact Enclosure Design with beautiful color
Microprocessor
· CPU
32bit RISC Microprocessor
Memory
· Flash Memory
4Mbyte
· Main Memory
32Mbyte High-Speed SDRAM
· Boot Memory
512Kbyte Flash Memory
Network Interface
· LAN0 Port
1-Port 10/100Mbps Fast Ethernet
· LAN1 Port
1-Port 10Mbps Ethernet
· Console Port
One(1) RS-232C Interface (RJ45)
Voice Interface
· AP1100-S8
8-Port FXS Analog Voice Interfaces
· AP1100-O8
8-Port FXO Analog Voice Interfaces
· AP1100-S4O4
4-Port FXS, 4-Port FXO Analog Voice Interfaces
Power & Operation Environments
· Power Requirement
VAC 110~220V, 50/60Hz, 15Watt
· Operating Temperature
0°C to + 50°C (32° to 122°F)
· Storage Temperature
-40°C to + 85°C (-40° to 185°F)
· Relative Humidity
5% to 95% (Non-condensing)
Dimension
· H x W x D (mm)
50mm x 210mm x 210mm
· Weight (g)
800g
IP Routing Protocols
Static and IEEE 802.1Q VLAN Routing
WAN Protocols
Point-to-Point Ptotocol(PPP) over Ethernet for ADSL
Networking(PPPoE)
Voice over IP Service
ITU-T H.323 v3 VoIP Protocol with ITU-T H.235 Security
Feature
SIP protocol support compliant with IETF RFC3261(or RFC2543)
H.323, SIP, and MGCP triple stack support
G.723.1, G.729.A, G.711 Voice Compressions
Voice Processing Features Supports
→ VAD, DTMF, CNG, G.168 and T.38 G3 FAX Relay
ITU-T H.323 Gateway, Gatekeeper Support
Enhanced QoS Management Features for Voice Traffics
System Performance Analysis for Process, CPU, Connection I/F
Configuration Backup & Restore for APOS Managements
Debugging, System Auditing, and Diagnostics Support
System Booting and Auto-rebooting with Watchdog Feature
System Managements with Data Logging
IP Traffic Statistics with Accounting
Other
Scalability
Features
DHCP Server & Relay Functions
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging (IEEE Standard) Function
→ Spanning Tree Bridging Protocol Support
→ Remote Bridging Support
→ Concurrent Routing and Bridging Support
