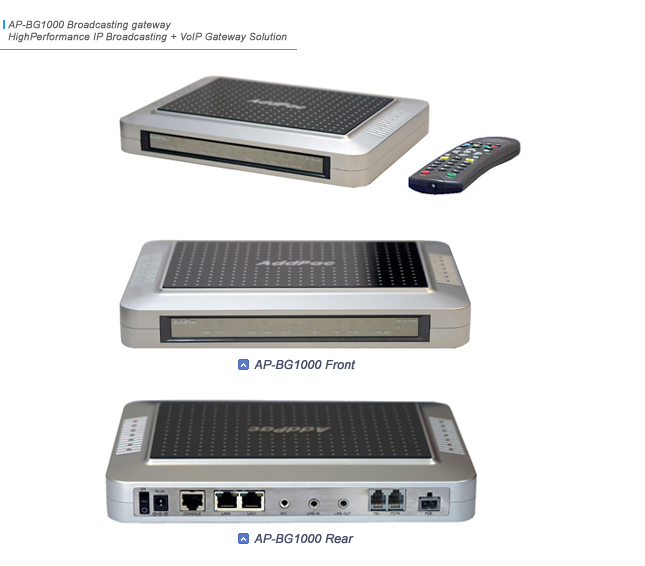

AP-BG1000 broadcasting gateway is a versatile and potent IP communication solution delivering powerful voice communication and broadcasting with built-in internal Speaker or extra devices such as MIC, external Speaker. It supports various voice codecs and VoIP & broadcasting service on the basis of firmware upgradeable MIPS+DSP architecture. Its built-in internal flash memory(optional) can be used to provide local record/play function and operate broadcasting in non-real time by delivering schedule data from broadcasting server. It also provides real time play function for previously restored roadcasting contents by delivering schedule data. In addition, It supports FXS port for VoIP telephony which is connected to analog phone along with PSTN backup function in case of internet network failure.
Table 1. Various applications of AP-BG1000
Application
Description
Peripherals
Real-time voice broadcasting
Voice broadcasting service terminal equipment for home and enterprise featuring flash memory(optional) for local record/play.
· AddPac voice broadcasting server
Non-real time voice broadcasting
Features flash memory (optional) for local record/play by elivering voice data in non-real time. This feature is implemented by internal flash memory which voice data is delivered from server to. Previously restored broadcasting contents can be played in real-time with schedule data delivering.
· AddPac voice broadcasting server
VoIP Phone
As a VoIP gateway, It provides VoIP telephony service using existing PSTN telephone.
· PSTN telephone
Versatile solution for Intelligent Voice Broadcasting
AddPac AP-BG1000 is a VoIP broadcasting equipment which adopts cutting-edge DSP chip based architecture with internal SPEAKER and is used to operate broadcasting from both HQ and remote site with 3.5mm stereo line-in, MIC-in connector as external input interfaces. Newly equipped internal flash memory empower this versatile virtual communication system to operate both real-time and non-real time voice broadcasting. In case of not enough bandwidth for real-time voice broadcasting, AP-BG1000 has capabilities of local record/play function featuring internal flash memory which voice contents is delivered from server to. For when broadcasting contents can't be received, flash memory can be used to record contents and play when necessary. It also provides real-time play function for previously restored broadcasting contents by delivering schedule data. Previously restored broadcasting contests can be updated by schedule broadcasting function from remote site.
Take advantage of Internal Speaker and Internet
AddPac AP-BG1000 provides internal speaker to support internet voice broadcasting without heavy investment for the initial deployment. AP-BG1000 features both built-in internal stereo speaker(1Wattx2) and external 3.5mm stereo line out interface. If higher output power than built-in speaker's is needed, external high output power AMP/speaker can be connected to AP-BG1000 through line-out interface. Moreover, It offers the diverse and compelling features such as power control port to turn on/off external AMP, REMOCON to control volume of internal speaker and LED of front part to check the status and functions of the gateway.
Firmware upgradeable DSP based HW Codec
AP-BG1000's high performance MIPS CPU is designed on programmable architecture, which allows for future compatibility in adopting new capabilities and advanced features by downloading the latest firmware from the AddPac website or with its automated-upgrade software.
Voice broadcasting solution with Outstanding Network Service Capability
Not only audio/video service, AP-BG1000 is an integrated, feature-rich network equipment delivering routing NAT/PAT, DHCP Server/Relay, public IP sharing, QoS features. In today's mixed network of xDSL, Cable, FTTH, Metro Ethernet, Metro ATM, Leased line and dynamic IP environment, not only the ample network service features, but also high-end QoS and security features are requested. Based on two(2) 10/100Mbps Fast Ethernet ports, AP-BG1000 offers integrated network and security service of LAN-to-LAN routing, bridge and NAT/PAT.
AddPac's various VoIP gateway series, multi service routers and comprehensive family of cutting-edge solutions have delivered high performance and stability to maximize customer satisfaction throughout the world. They provide high level of flexibility and scalability for each organization to find the solution that best fits their application needs and budget. With years of experience and know-how in enterprise and carrier market, AddPac provides AP-BG1000 with which customers can best optimize high performance, market strategy and budget for next-generation communication solution.

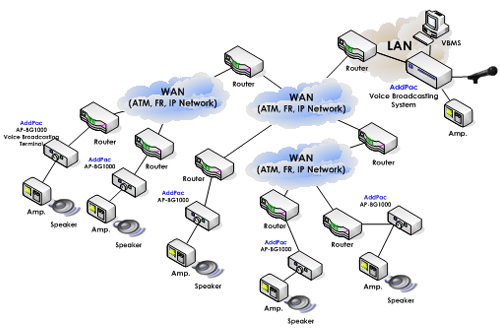

Network Diagram
Overall Features
High-performance CPU & DSP Architecture
Boot Memory : Flash 512KByte
System Memory : Flash 2MByte, SDRAM 32MByte
User Memory : Module Type Flash Memory - 2Mbyte(default)
Expandable Audio In/Out interface : 3.5mm Stereo Female Audio
In/Out, MIC In
Network Interface : 10/100Mbps Fast Ethernet Interface×2
User Interface : 1-port RS-232C Serial Console Interface ,
REMOCON
Voice Features
Supported Codec : Voice Band - G.711, G.726, G729, G.723.1
etc.
Audio Interfaces : 3.5mm Stereo Female Audio-In, Direct MIC
In (for supporting direct MIC-In)
System Performance
Analysis for Process, CPU, Connection I/F
Configuration
Backup & Restore for APOS Managements
Debugging, System
Auditing, and Diagnostics Support
System Booting and
Auto-rebooting with Watchdog Feature
System Managements
with Data Logging
IP Traffic
Statistics with Accounting
PC based Key
management scheme
Other Scalability Features
DHCP Server &
Relay Functions
Network Address
Translation (NAT) Function
Port Address
Translation (PAT) Function
Transparent
Bridging (IEEE Standard) Function
→ Spanning Tree Bridging Protocol Support
→ Remote Bridging Support
→ Concurrent Routing and Bridging Support
