VoiceFinder AP800 VoIP Gateway provides high-performance Voice over IP(VoIP) solution including IP-routing services for small enterprise, and other public offices as well as Internet game room and Internet based cyber apartment. Moreover, VoiceFinder AP800 VoIP Gateway maintains best voice quality under not only high network bandwidth but also low network bandwidth using the latest voice compression algorithm and enhanced QoS management features of AddPac Technologies.
Powerful Network-CPU Interface

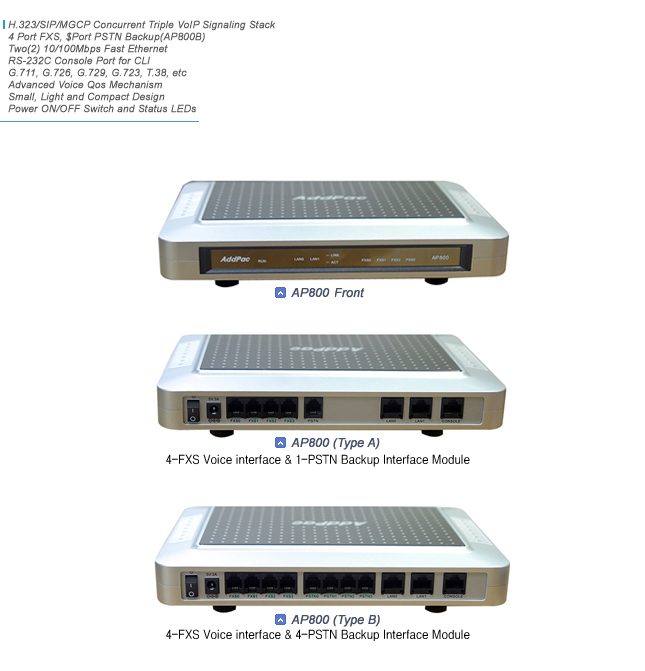

AP800 is designed to provide high-performance service as a media gateway. It provides LEDs on the front panel indicating operational status, line status, and LAN Interface status of gateway. Two 10/100Mbps fast Ethernet ports and RS232C console interface is the base for delivering various network services such as LAN-to-LAN routing, Bridge and NAT/PAT service etc
High quality of communication and additional services
Various VoIP gateway series of AddPac is approved for its high performance and reliability in world wide markets. AddPac provides highly advanced VoIP services in order to meet demanding and evolving business requirements of customers. Especially AP800 has been developed through years of experiences and accumulated know-how from existing enterprises and communication markets. AP800 provides concurrent triple VoIP stack (H323, SIP, and MGCP) and QoS (Quality of Service) for high quality of communication service. This will satisfy customers with high expectation.
APOS Internetworking Software for AP VoIP Gateway
AddPac VoiceFinder Operating System (APOS) is best VoIP and router software to provide scalability, reliability, stability, and QoS for internetworking solutions. APOS also provides optimized performance and industry standard network functionality with easy-to-use, easy-to-installation, and maintenance.

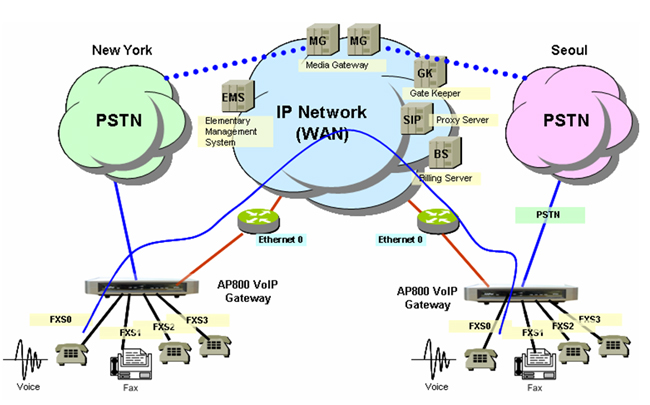

Network Diagram
Powerful RISC Microprocessor + DSP Architectures
Dual 10/100Mbps Fast Ethernet Interfaces for WAN, LAN
1-Port RS-232C Console Interface for CLI
High-performance Four(4) FXS Voice Interfaces
One(1) PSTN Back Up Port (AP800A), Four(4)
PSTN Back Up Port (AP800B)
Standard High-performance VoIP Gateway for
Voice Networking Applications
Multi-protocol Routing Solutions between WAN
and LAN Access with H.323 based VoIP Protocol
ITU-T H.323 v3 VoIP Protocol with ITU-T
H.235 Security Feature
SIP protocol support compliant with IETF
RFC3261 (or RFC2543)
Supports Triple stack of H.323, SIP and MGCP
AddPac APOS Internetworking Software to
provide Scalability, Functionality, Stability, and QoS Control for
AddPac VoIP Gateway
High-performance IP-Routing Capability with
Reliability
Static, Default IP-Routing and IEEE 802.1Q
VLAN Routing Protocols
Point to Point over Ethernet Protocol for
ADSL based Broadband Network
Enhanced QoS Managements for Voice Traffic
SNMP MIB v2 for Network Management Features
Essential Scalability
Features such as DHCP Server & Relay, NAT/PAT, IEEE Transparent
Bridging, IP Accounting, and Debugging/ Diagnostics, etc.
Remote Software Upgrade using
FTP & TFTP
Graceful Compact Enclosure
Design with beautiful color
CPU
RISC + DSP Hybrid Microprocessor Architecture
Memory
Flash Memory
4Mbyte Flash Memory
Main Memory
32Mbyte SDRAM
Network Interface Module
LAN Port
Two(2) 10/100Mbps Fast Ethernet Interface (2 x RJ45)
Console Port
One(1) RS-232C Interface (RJ45)
Voice Interface
FXS Voice Interface
Four(4) FXS Voice Interface (4 x RJ11)
PSTN Back up Interface
One(1) PSTN Back up Interface (1 x RJ11) : AP800A
Four(4) PSTN Back up Interface (4 x RJ11) : AP800B
Power & Operation Environments
Power Requirement
External Power Adaptor / VAC 110~220V, 50/60Hz, 15 Watt
Operating Temperature
0°C ~ 50°C (32° ~ 122°F)
Storage Temperature
-40°C ~ +85°C (-40° ~ +185°F)
Relative Humidity
5% ~ 95% (Non-condensing)
Dimension
H x W x D (mm)
44mm x 265mm x 165mm (H x W x D)
Weight (Kg)
1.2Kg
IP Routing Protocols
Static and IEEE 802.1Q VLAN Routing
WAN Protocols
Point-to-Point over Ethernet Protocol for ADSL Networking (PPPoE)
Voice over IP Services
ITU-T H.323 v3 VoIP Protocol with ITU-T H.235 Security
Feature
SIP protocol support compliant with IETF RFC3261(or RFC2543)
Supports Triple stack of H.323, SIP and MGCP
G.723.1, G.729.A, G.711 Voice Compressions
Voice Processing Features Supports
- VAD, DTMF, CNG, G.168, and T.38 G3 FAX Relay
ITU-T H.323 Gateway, Gatekeeper Support
Enhanced QoS Management Features for Voice Traffics
System Performance Analysis for Process, CPU, Connection I/F
Configuration Backup & Restore for APOS Managements
Debugging, System Auditing, and Diagnostics Support
System Booting and Auto-rebooting with Watchdog Feature
System Managements with Data Logging
IP Traffic Statistics with Accounting
Other Scalability Features
DHCP Server & Relay Functions
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging (IEEE Standard) Function
- Spanning Tree Bridging Protocol Support
- Remote Bridging Support
- Concurrent Routing and Bridging Support
