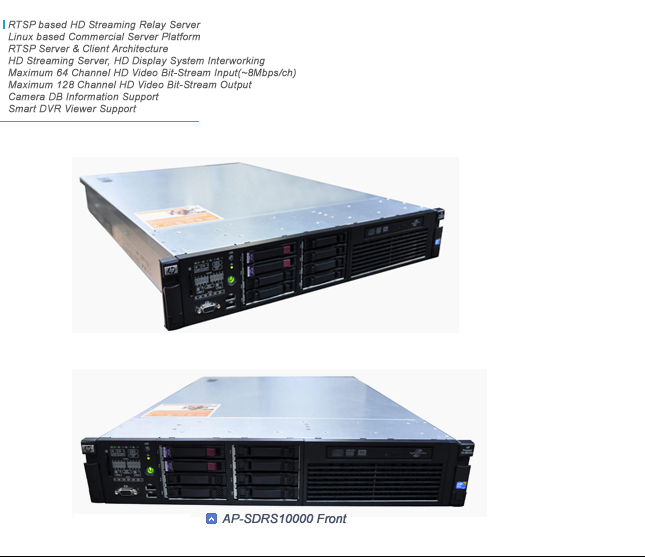

AP-SDRS10000 HD Recording Server

AP-SDRS10000 HD Recording Server | AddPac

AP-SDRS10000 is commercial server based HD video recording server which is based on high performance network based digital video recording and processing device. It is a server to save multi-channel HD video bit-stream by accessing into HD streaming server based on RTSP protocol. AP-SDRS10000 has an outstanding scalability due to its design for Large Scale Network DVR structure optimization. It is applicable to various video applications such as video surveillance, traffic control, environment surveillance and disaster surveillance.

The popularity of IP based network DVR has been increasing as much as high interest in IP network based high performance video communication. AP-SDRS10000 HD recording server is applicable to video surveillance, traffic control, environment surveillance, and disaster surveillance by combining with HD video codec, HD streaming server, HD video display device, HD subtitle generator, and HD video splitter. AP-SDRS10000 HD recording server is compatible with RTSP based variousvideo solutions (HD streaming server, HD encoder, HD decoder) so that you may build an efficient HD network DVR system environment in accordance with the range of application or the range of field.

High Performance Large Capacity Storage Server

AP-SDRS10000 HD recording server supports to store/play the video encoding bit stream in hard disk based on RTSP in network DVR system structure. AP-SDRS10000 HD recording server supports both 8Mbps HD video bit stream input channel (32 channels) and 1Mbps D1 video bit stream (128 channels). It is designed to support both all-in-one type (recording server + streaming server) and separated type (recording server, streaming sever each) on the basis of the Linux commercial server platform.

all-in-onetype (recording server + streaming server)

separated type (recording server, streaming sever each)

RTSP Server Client HD Recording Server

AP-SDRS10000 HD recording server performs RTSP Client function in input which receives the video bit stream. Compressed video information from the video encoder device or streaming server will be saved in hard disk. To play saved video bit stream, output performs the RTSP Server function to transmit the video data to video decoder (RTSP Client) through On-Demand. For the stable packet transmission, transport layer protocol uses TCP protocol as a mandatory. To cope with the various application services such as video decoder in RTSP server output, it is designed to support both TCP and UDP protocol concurrently as an option.

RTSP Client Accessibility

AP-SDRS10000 HD recording server supports standard protocol to play the saved video information and live video based on RTSP. A recording server output is embedded with RTSP server in order to connect with various RTSP client terminals. Hardware based HD video decoder and media player (AddPac Smart DVR Viewer, VLC, GOM Player, etc) can be RTSP clients. It can also perform video streaming service in the form of On-Demand.

Outstanding Scalability for Large Scale NDVR Network

AP-SDRS10000 HD recording server is designed on the basis of RTSP standard protocol. It is optimized to design the Large Scale NDVR (Network DVR). AS-SDRS10000 HD recording server can be interworked with parallel, cascade structure and may apply to various topologies. By installing a large storage server in headquarter and a small storage server in branch, it enables to backup the video data in headquarter storage server based on RTSP. Also, it is capable of managing several slave distributing servers under one master server as well as to manage each distributing server independently.

Firmware Upgradeable HD Storage Server based on Commercial Server

AP-SDRS10000 HD recording server uses Linux Platform. All application software’s are programmable structure so that it is capable of improving, modifying, and adding new features constantly. When an additional feature or modification isrequired, just directly download from the homepage or setting an auto upgrade option.You may use the latest features without much effort.

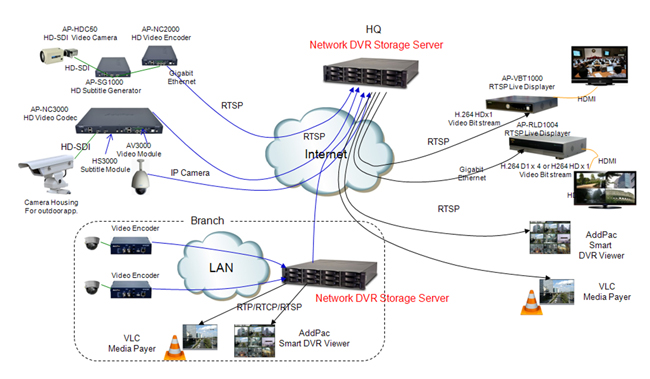

Network Diagram

Presentation
