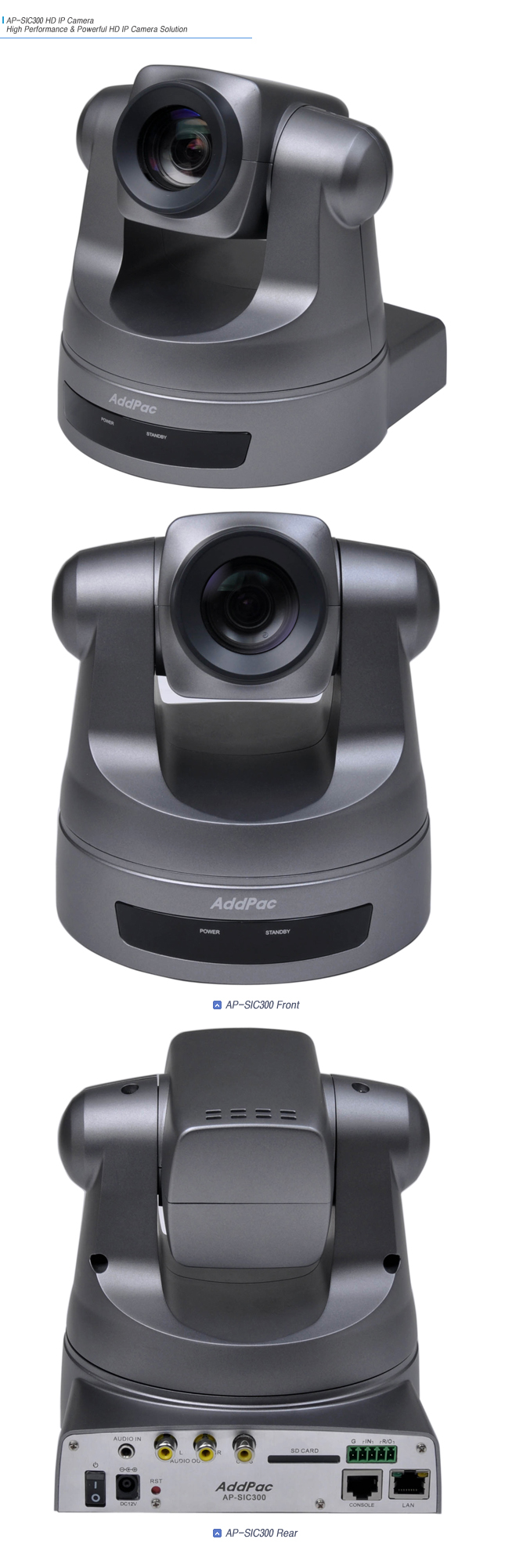

AP-SIC300 Indoor IP camera is DSP based all-in-one encoding device which support 37x optical zoom lens, PTZ feature, 1-Port 10/100Mbps Ethernet interface, 1 port audio input/output interface, and 2 port alarm & 1 port relay port. It is applicable to various real time video transmission fields such as surveillance.

The popularity of IP based network DVR video device has been increasing as much as the interest in IP network based high performance video solution. IP camera solution that support installation/location free feature is hard to access due to the high cost of introduction. All-in-one IP camera opens a whole new world with reasonable price. AP-SIC300 indoor IP surveillance camera supports 37x optical zoom as well as speed dome feature.

AddPac AP-SIC300 is applicable to various fields such as monitoring, environment surveillance, and disaster surveillance by combining with various WAN environments such as xDSL, internet, metro Ethernet, and lease line. Especially, AP-SIC300 is compatible with various AddPac video solutions such as RTSP based multi-channel network DVR solution to build an efficient video communication environment.

Process 30 Frames of D1 Images per Second

AP-SIC300 processes 30 frames of D1 (720x480) images per second based on H.264 compressed codec standard and setup an appropriate frame rate/bit rate in accordance with network status. It supports maximum of D1 video resolution using CCD camera sensor and user may select video resolution in accordance with network bandwidth such as D1, VGA, 4CIF and user environment.

Remote Management

To secure the device security, AP-SIC300 is possible to check the device status/feature setup/software upgrade through telnet and ftp. Also, it supports a separate GUI based management system for several AP-SIC300 environments from several sites. User may check the operating status of several AP-SIC300 and transmits audio.

Multi-Channel DVR Feature

AP-SIC300 is equipped with audio input/output, video encoding feature. Saved audio/video image from AP-HNR1004, AP-SDRS2000 in head quarter is transmitted/saved to AddPac network DVR server in real time and user may monitor. It is applicable to various fields such as unattended duty, environment surveillance, and disaster prevention in real time. Especially, user may build an efficient communication environment in one device by combining with interphone feature and video monitoring feature when using audio input/output port as unattended duty or unattended support system.

IP Voice Broadcasting

AP-SIC300 supports audio output. This can be used as IP based voice broadcasting terminal by connecting with external amplifier speaker. It can also perform the following broadcasting features; announcement and music broadcasting by interworking with AddPac IP voice broadcasting solution (AP3150, MMBS S/W Manager, etc.) Also, it performs IP voice broadcasting feature by simply entering the phone number with AddPac IP telephony solution (IP-PBX, IP terminals, etc)

Embedded VoIP Signaling

AP-SIC300 is designed to perform as IP video phone without display feature by embedded with SIP and VoIP signal feature. It can be used as analog phone without difficulty. For instance, user may monitor the IP camera screen through IP-PBX dialing. User may design various application services through VoIP.

Multiple User Access

AddPac IP camera supports user access restriction feature, access time limit feature in case of watching IP camera images. Also, it provides AddPac VoD (Video on Demand) feature based broadcasting solution for IP camera viewer. AddPac VoD broadcasting server supports multi-channel Gigabit Ethernet for video casting which can be used as large scale IP camera monitoring solution.

Firmware Upgradable DSP based HW Codec

AP-SIC300 IP camera supports H.264 video codec, G.711/G.726 for voice codec and audio/video encoding concurrently. AP-SIC300 DSP is all programmable structure so that constant feature improvement, modification, and additional feature can be completed by direct downloading from AddPac homepage or setting an auto upgrade option.

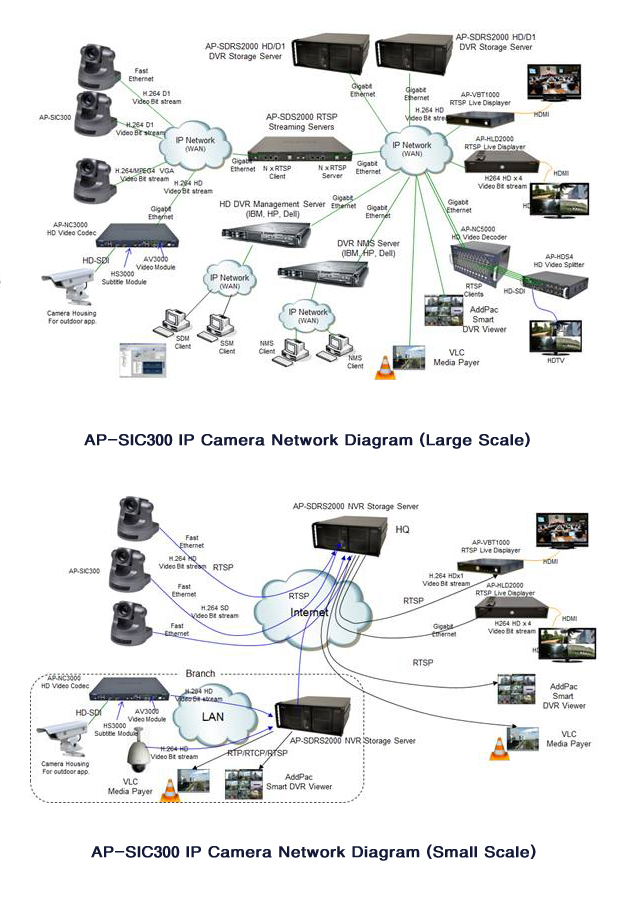

Network Diagram
