AP-SDRS5000 is a HD/D1 video storage server which is based on high performance network based digital video recording/processing device. It is a video recording server to save multi-channel HD/D1 compressed video information by accessing into HD streaming server based on RTSP protocol. AP-SDRS5000 has an outstanding scalability due to its design for large scale network DVR structure optimization. It is applicable to various video applications such as video surveillance, traffic control, environment surveillance and disaster surveillance.
The popularity of IP based network DVR has been increasing as much as high interest in IP network based high performance video communication. AP-SDRS5000 HD/D1 video storage server is applicable to video surveillance, traffic control, environment surveillance, and disaster surveillance by combining with HD video codec, RTSP based HD streaming server, HD display device, HD subtitle generator, and HD screen splitter. AP-SDRS5000 HD/D1 video storage server is compatible with RTSP based various video solutions (HD streaming server, HD encoder, HD decoder) so that you may build an efficient HD network DVR system environment in accordance with the range of application or the range of field.
High Performance HD/D1 Storage Server
AP-SDRS5000 HD video storage server supports to save/play the video encoding bit stream in hard disk based on RTSP in large scale network DVR system structure. AP-SDRS5000 can install 5 SATA hard disks and support maximum of 10 or 20 Tera storage capacities in case of using 2/4 Tera hard disk. AP-SDRS5000 HD/D1 video storage server can record HD video bit stream as well as D1 video bit stream. It is designed to support both all-in-one type (video recording + video streaming) server and separated type(video recording, video streaming) server on the basis of the Linux commercial server platform.
All-In One Type (Video Recording + Video Streaming) Server
Separated Type (Video Recording, Video Streaming) Server
RTSP Server Client HD/D1 Storage Server
AP-SDRS5000 HD video storage server performs RTSP client function in input which receives the video bit stream. Compressed video information from the video encoder device or streaming server will be saved in hard disk. To play the recorded video information, output performs the RTSP server function to transmit the video data to video decoder (RTSP client) through On-Demand. For the stable packet transmission, transport layer protocol uses TCP protocol as mandatory. To cope with the various application services such as video decoder in RTSP server output, it is designed to support both TCP and UDP protocol concurrently as an option.
RTSP Client Accessibility
AP-SDRS5000 HD video storage server supports standard protocol to play the saved video information and real-time live video based on RTSP protocol. A storage server output is embedded with RTSP server in order to connect with various RTSP client terminals. Hardware based HD video decoder and media player (AddPac Smart DVR Viewer, VLC, GOM Player, etc) can be RTSP clients. It can also perform video streaming service in the form of On-Demand.
Outstanding Scalability for Large Scale NDVR Network
AP-SDRS5000 HD video storage server is designed on the basis of RTSP standard protocol. It is optimized to design the large scale NDVR (Network DVR). AS-SDRS5000 HD video storage server can be interworked with parallel, cascade structure and may apply to various topologies. By installing a large storage server in headquarter and a small storage server in branch, it enables to back up the video data in headquarter storage server based on RTSP. Also, it is capable of managing several slave storage servers under one master server as well as to manage each storage server independently.
Firmware Upgradeable HD Video Storage Server
AP-SDRS5000 HD video storage server uses Linux Platform. All application software’s are programmable structure so that it is capable of improving, modifying, and adding new features constantly. When an additional feature or modification is required, just directly download from the homepage or setting an auto upgrade option. You may use the latest features without much effort.

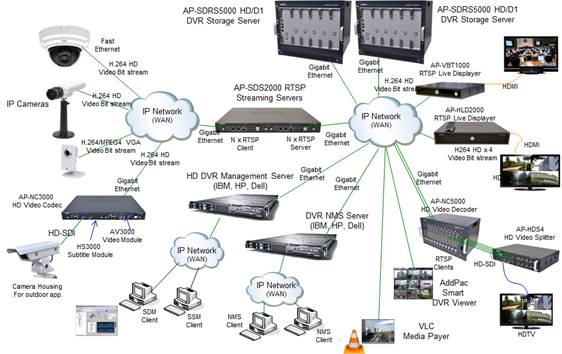

Real-time Video Recording, Live Monitoring and Replay Service Architecture
for HD/D1 NDVR Service
Linux based HD/D1 Video Storage Server

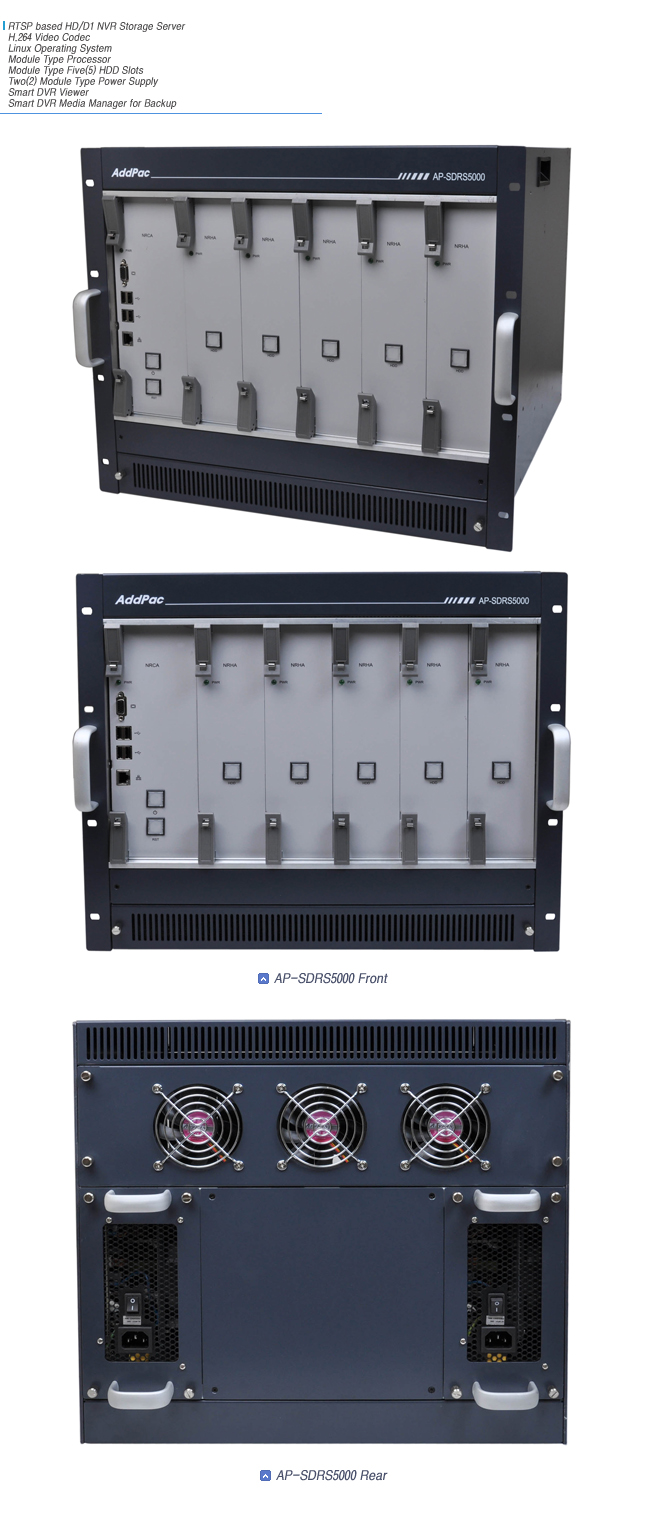

Module Type Hardware Architecture
Module Type High Performance Processor Board Assembly
Module Type Hard Disk Board Assembly (SATA)
10 Tera ( 2 Tera SATA x 5), 20 Tera (4 Tera SATA x 5)
Module Type Power Supply
Dual Power Supply for Power Supply Redundancy
HD/D1 Video Storage Server + HD/D1 Streaming Server All-In One Type and
RTSP Protocol Support
HD/D1 Video Storage Server Input : RTSP Client , TCP Protocol
HD/D1 Video Storage Server Output : RTSP Server, TCP or UDP
Scalability Support via Parallel, Hierarchical Architecture
Various RTSP Clients Support : HD Video Encoder/Decoder, HD Video Storage
Server, Various Media Player (VLC, GOM, SDV, etc)
