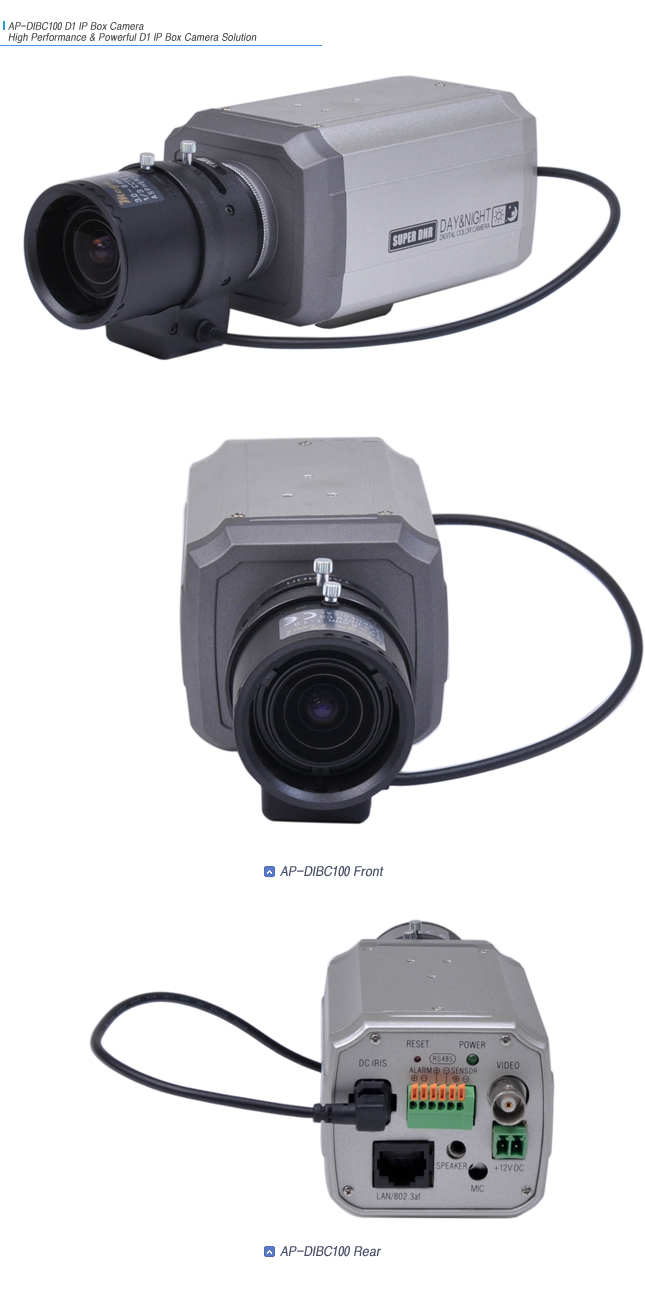

AP-DIBC100 D1 IP Box camera is DSP based all-in-one D1 IP camera which support 1 Port 10/100Mbps Ethernet interface, 1 port audio input/output interface, and 2 port alarm & 1 port relay port. It is designed on the basis of CS Mount and allows installing various types of lens. It is applicable to various real time video transmission fields such as indoor/outdoor surveillance through camera housing.
The popularity of IP based network DVR video device has been increasing as much as the interest in IP network based high performance video solution. IP camera solution that support installation/location free feature is hard to access due to the high cost of introduction. All-in-one D1 IP camera opens a whole new world with reasonable price.

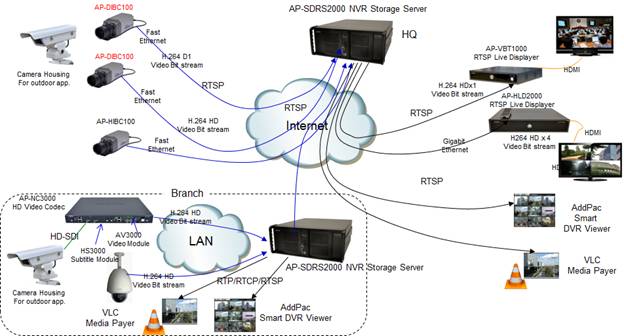

AddPac AP-DIBC100 is applicable to various fields such as monitoring, environment surveillance, and disaster surveillance by combining with various WAN environments such as xDSL, internet, metro Ethernet, and lease line. Especially, AP-DIBC100 is compatible with various AddPac video solutions such as RTSP based multi-channel network DVR solution to build an efficient video communication environment.
Firmware Upgradable DSP based HW Codec
AP-DIBC100 D1 IP camera supports H.264 video codec, G.711/G.726 for voice codec and audio/video encoding concurrently. AP-DIBC100 DSP is all programmable structure so that constant feature improvement, modification, and additional feature can be completed by direct downloading from AddPac homepage or setting an auto upgrade option.
Process 30 Frames of D1(720x480) Images per Second
AP-DIBC100 processes 30 frames of D1 (720x480) images per second based on H.264 compressed codec standard and setup an appropriate frame rate/bit rate in accordance with network status. It supports maximum of D1 video resolution using Sony 1/3” Super HAD II CCD camera sensor and user may select video resolution in accordance with network bandwidth such as VGA, QVGA, D1, CIF, and QCIF and user environment. On top of that, it is applicable to various application fields by providing D1 video image.
Remote Management
To secure the device security, AP-DIBC100 is possible to check the device status/feature setup/software upgrade through telnet and ftp. Also, it supports a separate GUI based management system for several AP-DIBC100 environments from several sites. User may check the operating status of several AP-DIBC100 and transmits audio.

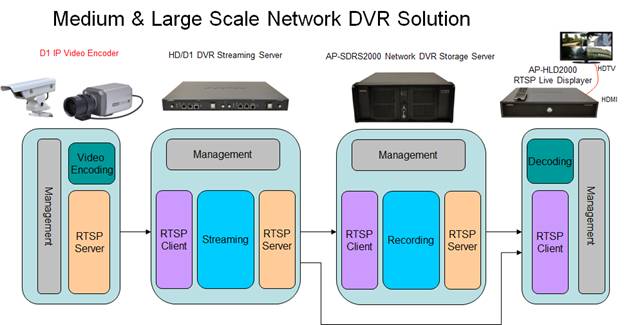

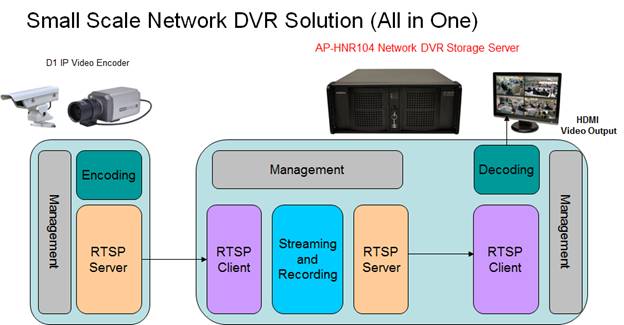

Multi-Channel DVR Feature
AP-DIBC100 is equipped with audio input/output, video encoding feature. Video bit-stream transmitted from IP cameras in remote site is recorded and monitored real timely in AddPac network DVR server such as AP-HNR1004, AP-SDRS2000. It is applicable to various fields such as unattended duty, environment surveillance, and disaster prevention in real time. Especially, user may build an efficient communication environment in one device by combining with interphone feature and video monitoring feature when using audio input/output port as unattended duty or unattended support system.
Presentation
