AP-SG1000 is a DSP based HD-SDI next generation HD subtitle generator. AP-SG1000 is located in between HD-SDI based HD camera and HD video encoder. Itperforms overlay display function on HD video display window to show CCTV information such as text message, bit map, and figure. It is applicable to various real time video applications such as surveillance, traffic control, environment control, and disaster prevention.

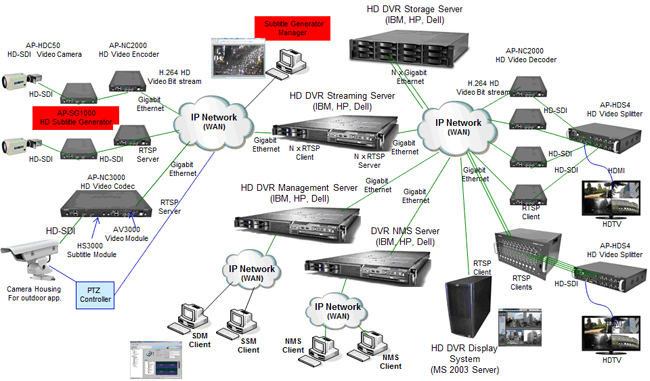

The popularity of IP based network DVR has been increasing as much as high interest in IP network based video communication. AP-SG1000 subtitle generator is applicable to video surveillance, traffic control, environment surveillance, and disaster surveillance by combining with HD-SDI based HD camera and H.264 video encoder to display the CCTV information. AP-SG1000 subtitle generator is compatible with IP based HD DVR solutions so that you may build an efficient HD video overlay display environment in accordance with the range of application or the range of field.
Firmware Upgradeable DSP based HD Subtitle Generator
AP-SG1000 HD Subtitle Generator provides a DSP based programmable structure so that it is capable of improving, modifying, and adding new features constantly. When an additional feature or modification is required, just directly download from the homepage or setting an auto upgrade option. You may use the latest features without much effort.
HD-SDI Interface Support
AP-SG1000 HD Subtitle Generator supports HS-SDI HD digital video interface. HD video interface of AP-SG1000 can supportvarious HD-SDI format as well as HD-SDI digital camera popular video formats such as 720P, 1080i. Also, video output provides HD-SDI interface which can be connected to HD video codec.
PC based Subtitle Editing Function
AP-SG1000 HD Subtitle Generator provides the GUI based subtitle editing program in PC. Screen information which is designed in PC subtitle editing program will be encodedon the basis of XML and transmit to AP-SG1000 subtitle generator by using TCP/IP protocol. AP-SG1000 subtitle generator decodes the subtitle screen by using XML Parser and overlay on camera display window. Even when it is not XML based, a user may run the device by using separate subtitle information protocol.
Enhanced Remote Management Capabilities
AP-SG1000 HD Subtitle Generator makes possible to secure the stability of device via telnet or FTP for device status inspection, function setup, and software upgrade. A special system is provided for numerous AP-SG1000 operating environment in several places.
HD-SDI based HD video overlay display device
HD-SDI video input/output format
Programmable high performance DSP based
Module type hardware structure
Support 10/100/1000 gigabyte Ethernet and
Support PC based subtitle editing software
Support Multi site device management
HD Subtitle Generator (HD-SDI Video Input,
HD-SDI Video Output)
