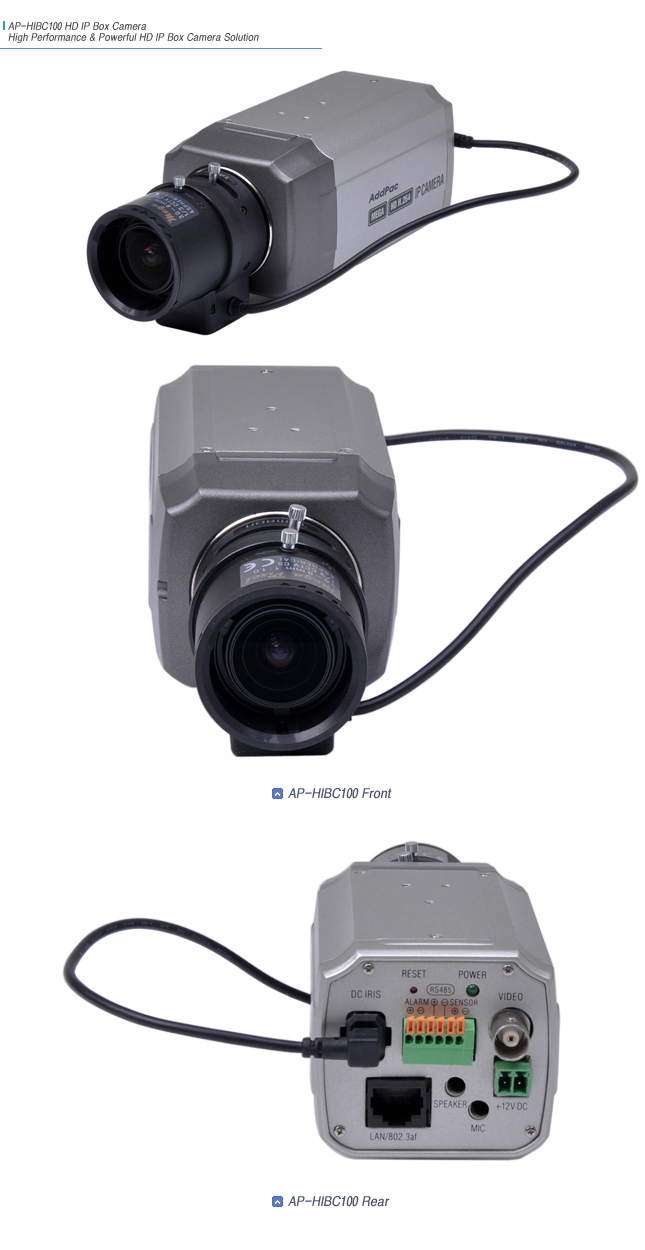

AP-HIBC100 HD IP Box camera is DSP based all-in-one HD device which support 1 Port 10/100Mbps Ethernet interface, 1 port audio input/output interface, and 2 port alarm & 1 port relay port. It is designed on the basis of CS Mount and allows installing various types of lens. It is applicable to various real time video transmission fields such as indoor/outdoor surveillance through camera housing.
The popularity of IP based network DVR video device has been increasing as much as the interest in IP network based high performance video solution. IP camera solution that support installation/location free feature is hard to access due to the high cost of introduction. All-in-one HD IP camera opens a whole new world with reasonable price.
AddPac AP-HIBC100 is applicable to various fields such as monitoring, environment surveillance, and disaster surveillance by combining with various WAN environments such as xDSL, internet, metro Ethernet, and lease line. Especially, AP-HIBC100 is compatible with various AddPac video solutions such as RTSP based multi channel network DVR solution to build an efficient video communication environment.
Firmware Upgradable DSP based HW Codec
AP-HIBC100 HD IP camera supports H.264 video codec, G.711/G.726 for voice codec and audio/video encoding concurrently. AP-HIBC100 DSP is all programmable structure so that constant feature improvement, modification, and additional feature can be completed by direct downloading from AddPac homepage or setting an auto upgrade option.
Process 30 Frames of HD Images per Second
AP-HIC200 processes 30 frames of HD (1280x720) images per second based on H.264 compressed codec standard and setup an appropriate frame rate/bit rate in accordance with network status. It supports maximum of 720P video resolution using 1.3M HD CCD camera sensor and user may select video resolution in accordance with network bandwidth such as VGA, QVGA, 4CIF, CIF, and QCIF and user environment. On top of that, it is applicable to various application fields by providing 720P and D1 video image concurrently.
To secure the device security, AP-HIBC100 is possible to check the device status/feature setup/software upgrade through telnet and ftp. Also, it supports a separate GUI based management system for several AP-HIBC100 environments from several sites. User may check the operating status of several AP-HIBC100 and transmits audio.
Multi-Channel DVR Feature

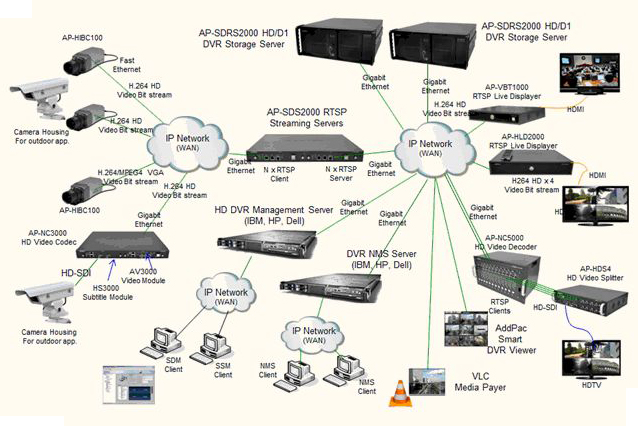

AP-HIBC100 is equipped with audio input/output, video encoding feature. Video bit-stream transmitted from IP cameras in remote site is recorded and monitored real timely in AddPac network DVR server such as AP-HNR1004, AP-SDRS2000. It is applicable to various fields such as unattended duty, environment surveillance, and disaster prevention in real time. Especially, user may build an efficient communication environment in one device by combining with interphone feature and video monitoring feature when using audio input/output port as unattended duty or unattended support system.
AP-HIBC100 HD IP Box (Small Scale)
AP-HIBC100 HD IP Box (Large Scale)
High Performance RISC Integrated DSP Processor
High Performance DSP (Digital Signal Processor)
128Mbyte NAND Flash
128Mbyte High Speed DDR2
One(1)-Port 10/100Mbps Fast Ethernet
AV Interface Modules
One(1) 3.5mm Connector
One(1) 3.5mm Connector
1/3inch Progressive Scan CCD Image Sensor
Max Video Resolution
1280(H) x 720(V), 30fps
1.3 Mega Pixel
Frames per Second
Two(2) Alarm Input
One(1) Relay Output
Power & Operation Environments
External Power VAC 110~220V, 50/60Hz, 12V
H x W x D (mm)
58mm x 64mm x 117mm
Static and IEEE 802.1Q VLAN Routing
Point-to-Point Protocol (PPPoE for ADSL), etc.
H.264, etc (DSP based Video Codec, Upgradeable)
Up to 30fps at 4Mbps with HD (720P) Resolution
256 Kbps ~ 8Mbps
Frame Rate, Bandwidth Control
(1280x720)720P, 4CIF, CIF, QCIF, VGA, QVGA
DSP based Advanced Motion Detection Algorithm, Firmware
IP Camera Viewer
Smart IP Camera
Internet Explorer 6.0
Window XP/Vista Support
Audio Service & Signaling Protocol
G.711 & G.726 for Voice Quality Audio Service
Enhanced QoS Management Features for Audio/Video Traffics
RSTP/RTP, TCP/UDP, RTSP Server
Standard & Enterprise SNMP MIB Support
Web Based Management using HTTP/HTTPS
Console / Telnet / Rlogin / SSH Interface
Standard & Extended IP Access List
HTTPS / SSH Interface
Auto-disconnect Telnet/Console Session
Access Control for Local Service (FTP/Telnet/HTTP.)
Enable/Disable Network Services
Multi-Level User Account Management
Configuration Backup & Restore for APOS Managements
Auto Upgrade via HTTP/HTTPS
Debugging, System Auditing, and Diagnostics Support
