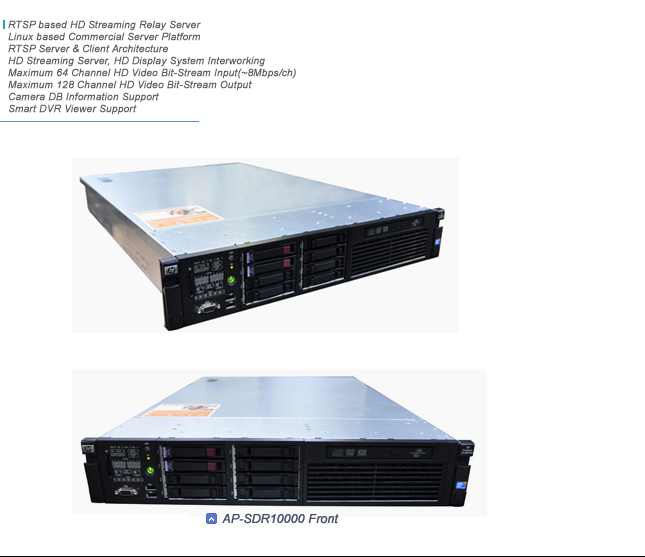

AP-SDR10000 HD Streaming Relay Server

AP-SDR10000 HD Streaming Relay Server | AddPac

AP-SDR10000 is HD video streaming relay server based on commercial server such as IBM/HP/Dell Server. It is a RTSP protocol based which is located in between HD streaming server and video decoder to support the HD video bit stream. AP-SDR10000 has an outstanding scalability due to its design for Large Scale Network DVR structure optimization. It is applicable to various video applications such as video surveillance, traffic control, environment surveillance and disaster surveillance.

The popularity of IP based network DVR has been increasing as much as high interest in IP network based high performance video communication. AP-SDR10000 HD streaming relay server is applicable to video surveillance, traffic control, environment surveillance, and disaster surveillance by combining with HD video codec, HD distributing server, HD display device, HD subtitle generator, and HD screen splitter. AP-SDR10000 HD streamingrelay server is compatible with RTSP based various video solutionsso that you may build an efficient HD network DVR system environment in accordance with the range of application or the range of field.

High Performance Large CapacityHD Streaming Relay Server

AP-SDR10000 HD streaming relay server has routing capability (encoding video bit stream to N:M) based on RTSP protocol in network DVR system structure. Unlike the fixed input channel HD streaming server,AP-SDR10000 HD streamingrelay serveris designed to see the whole NDVR camera video in 64 input channels. Also, AP-SDR10000 streaming relay server receives input channelfrom RTSP based HD streaming server. AP-SDR10000 HDprovides the 8Mbps HD video encoding bit stream. (Input channel 64 channels, output channel 128 channels) D1 may be slightly different depending on the video transmit bandwidth (H.264 1Mbps~2Mbps) and support up to twice as much as the streaming relay server capacity (N:M=128:256)

RTSP Server Client HD Streaming Relay Server

AP-SDR10000 HD streamingrelay sever performs RTSP Client function in input which receives the video bit stream. Output performs the RTSP Server function to transmit the video data to video decoder (RTSP Client) through On-Demand. For the stable packet transmission, transport layer protocol uses TCP protocol as a mandatory. To cope with the various application services such as video decoder in RTSP server output, it is designed to support both TCP and UDP protocol concurrently as an option.

Video Providing System Architecture for an Outside Institution

AP-SDR10000 HD streaming relay server is RTSP standard protocol based. It is applicable for video transmitting application service structure due to N:M input/output structure. It is designed to support the camera image to outside institution by interworking with camera DB when the Large Scale NDVR (Network DVR) system has large number of camera nods. AP-SDR10000 HD streaming relay server is loaded with RTSP server function to connect with various RTSP client terminals. AddPac Smart DVR Viewer is provided due to its compatibility with camera DB.

Firmware Upgradeable HD Streaming Relay Server based on Commercial Server

AP-SDR10000 HD streaming relay server uses Linux Platform. All application software’s are programmable structure so that it is capable of improving, modifying, and adding new features constantly. When an additional feature or modification isrequired, just directly download from the homepage or setting an auto upgrade option.You may use the latest features without much effort.

Enhanced Remote Management Capabilities

AP-SDR10000 HD streaming relay server makes possible to secure the stability of device via telnet or FTP for device status inspection, function setup, and software upgrade. A special GUI based network management system is provided for numerous AP-SDR10000 operating environment in several places.

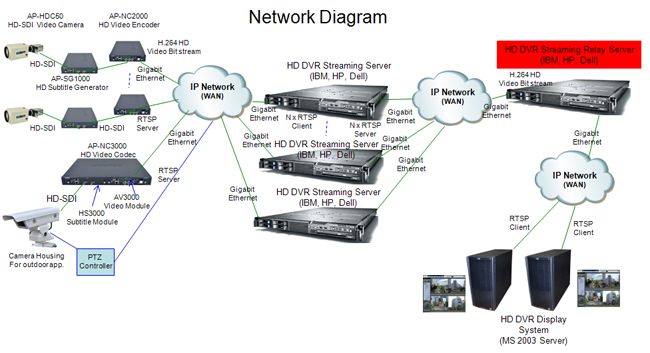

Network Diagram
