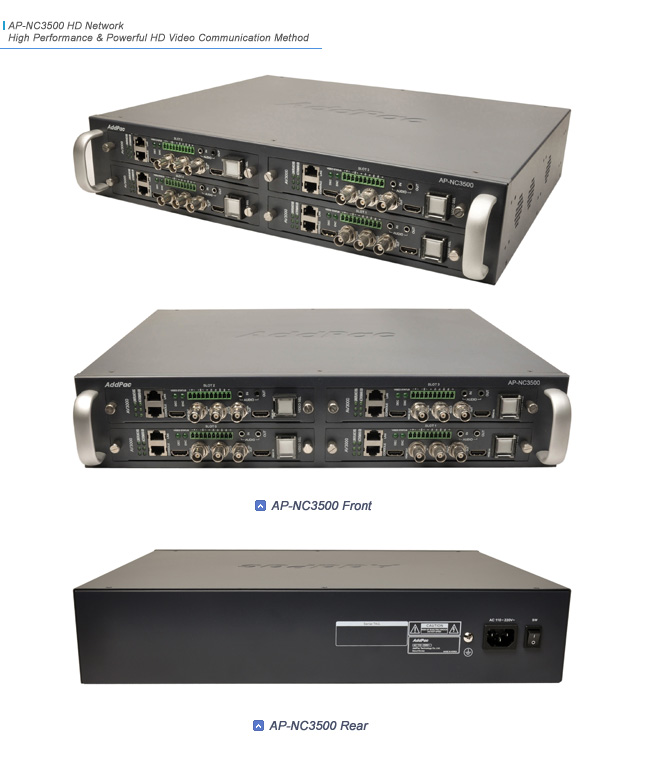

AP-NC3500 HD video codec is DSP based next generation high performance multi channel HD video encoder/decoder device which allow to install 4 video modules. It is applicable to various real time fields, for instance, surveillance, traffic management, and environment surveillance.
A popularity of IP based network DVR video device has been increasing as much as IP network based high performance video communication. AddPac AP-NC3500 is applicable to various fields such as surveillance, traffic management, and environment surveillance with various WAN environments including; xDSL fast cable, and leased line metro Ethernet. Especially, AP-NC3500 interworks with various video solutions such as DVR solution so that user may build an efficient HD video communication environment.
Firmware Upgradeable DSP based HW Codec
AP-NC3500 HD video codec module supports audio/video encoding concurrently with the latest codec H.264. DSP is all programmable structure for constant upgrade/change/add features to cope with technological change.
Process 30 Frames of 1080i Full HD per Second
AP-NC3500 processes 30 frame of 1080i, 720P (1280X720) video images per second. A user may setup an appropriate frame rate and bit rate in accordance with network status. Especially, HD video module; AP6000 (Full HD), AV3000 (HD) controls PAN/TILT/ZOOM camera remote by interworking with RS232C, RS485 interface.
AP-NC3500 HD video module operates independently. Device status check, feature setup, and software upgrade are possible through telnet or ftp to secure the device stability. It also supports separate GUI based management system for AP-NC3500 operating environment in several sites.
AddPac DSP based H.264 HD video codec has no boundary of AP-NC3500 application range such as HD high quality surveillance, traffic management, and environment service.

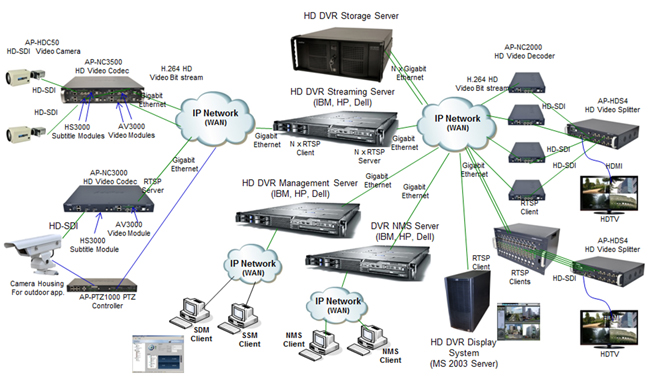

Architecture Structure for IP based Real Time Video Surveillance
12 Multiple Service Module Slots
Various Video Codec Module
D1 (NTSC, PAL) Video Subtitle Module
Built-In IP Voice Broadcasting Module
Programmable High Performance DSP based Hardware Video Codec
Programmable High Performance DSP based Voice Broadcasting Hardware
High Performance RISC CPU and RTOS based Embedded System
Enable to Transmit Video Images to Multi Sites with QoS
Integrated Structure for Network
Surveillance Function and Audio Broadcasting
12 Module Slots for Multiservice NDVR
AV1500N Two(2) Channel D1 Video Encoder Module
AV1200N One(1) Channel D1 Video Encoder Module
AA1000N AMP. Built-In Audio Broadcasting Module
AS1000N Analog Subtitle Generator Module
Power & Operation Environments
Power VAC 110~220V, 50/60Hz,
0°C to + 45°C (32° to 112°F)
-40°C to + 85°C (-40° to 176°F)
5% to 95% (Non-condensing)
H x W x D(mm)
227mm x 440mm x 374mm – 19” Rack Mountable Chassis
Static and IEEE 802.1Q VLAN Routing
Point-to-Point Protocol (PPPoE for ADSL), etc.
D1 : Up to 30fps, NSTC(720x480), PAL Mode, H.264
Dual Bit Stream
D1: (D1, CIF)
256Kbps ~ Several Mbps
Audio Service & Signaling Protocol
- G.711 & G.726 for Voice Quality Audio Service
Enhanced QoS Management Features for Audio/Video Traffics
