As Presence Server AP-PS2000 interoperates with AddPac IP-PBX products, which are based on its next generation multi-media IP telephony solution, it can provide user presence indication information to Smart Messenger or IP phone (AP-IP300, etc) with presence indication lamp keys.
Smart Messenger based on MS-Window program supports all different kinds of services such as Messenger Service, Telephone Directory, User’s presence, Unified Massage (Voice Mail, Short Message), Call Control and Forward Setup functions. Smart Messenger can be operated by AddPac Technology’s proprietary protocol called Smart Service Control Protocol (SSCP), which is managed between AddPac’s IP PBX and IP Terminal like as Video Phone, IP Phone, etc.
In order to support user presence features on real-time basis, such as user busy, on-line, user away, etc, user presence server function should be provided on IP telephony solution. User Presence Server function gathers user information (on-line, busy, etc) of each IP terminals from IP-PBX, and broadcasts user information to all or group IP terminals with speed-dial keys (built-in presence indication lamp) , Smart Messenger Program at every second.
For enterprise with small employee, small capacity IP-PBX (IPNext 100, IPNext150, etc) supports the presence server function beside call manager function. But, in case of large enterprise, external AP-PS2000 Presence Server should be used with IP-PBX due to performance issue independently.

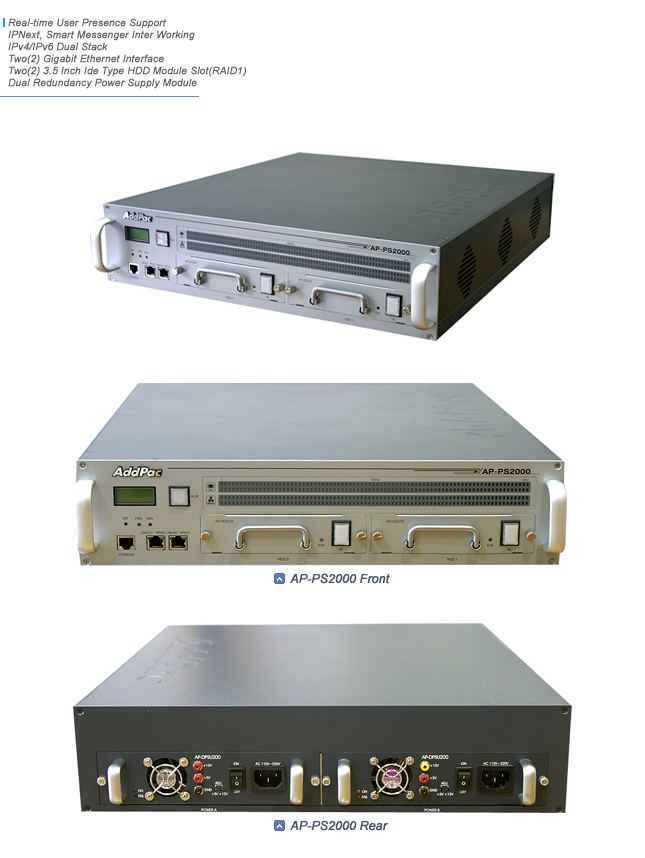

AddPac AP-PS2000 presence server is leading-edge network equipment where the high performance CPU module designed and developed by AddPac is combined with the AddPac Propriety real-time OS (APOS) and embedded hardware to provide IP-based user presence indication service. An advanced embedded RISC processor and a reliable embedded OS that support Gigabit Ethernet are used for this product to ensure better performance and efficiency. AP-PS2000 is configured with 2-port 10/100/1000 Mbps Gigabit Ethernet interfaces, a two(2) IDE-type 3.5-inch HDD module slots, and enables RAID1 configuration.
Smart Messenger Protocol Structure
Smart Messenger System Diagram

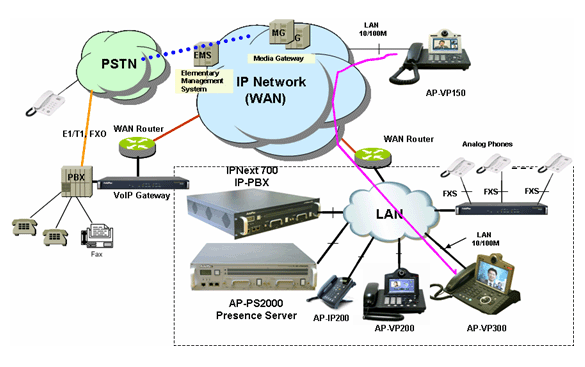

Presence Server Network Diagram
AddPac IP-PBX Total Solution
As ‘All IP’ multimedia telephony environment is becoming a reality with advanced next generation networking technology; there is now critical demand of optimal integration of the solutions. AddPac Technology offers a range of solution covering VoIP and Media gateway, audio/video terminal equipments, Independent audio/video MCU, IP audio/video broadcasting and VoD solution, Network DVR, Audio/video recording solution, Traffic controller, QoS equipment to meet customers’ various communication requirements, so you can best optimize your network environment to maximize benefit from convergence of multimedia communication.
AddPac's various VoIP gateway series, multi service routers and comprehensive family of cutting-edge solutions have delivered high performance and stability to maximize customer satisfaction throughout the world. They provide high level of flexibility and scalability for each organization to find the solution that best fits their application needs and budget. With years of experience and industry-leading technology, AddPac provides AP-PS2000 with which customers can best optimize high performance, market strategy and budget for next-generation IP telephony solution.
