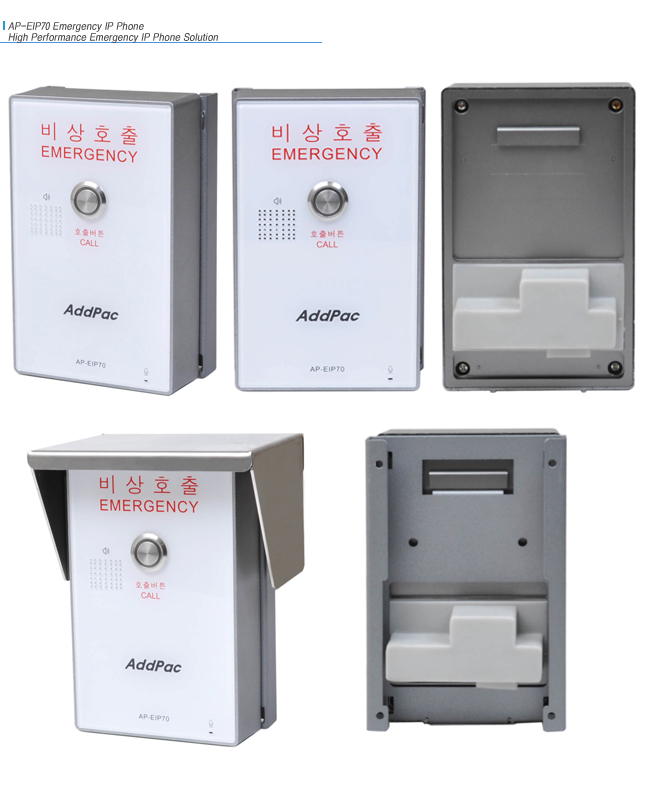

AP-EIP70, AddPac emergency call IP phone, is the emergency call phone that enables the high-quality VoIP communications. The phone can be used in many different outdoor places requiring emergency call features and supports VoIP telephony service at optimum level in the general internet environment such as ADSL through all different kinds of voice codec, speaker interface and Power over Ethernet (PoE).
VoIP-based Emergency Telephone
AP-EIP70 is an emergency call IP phone that AddPac has accumulated from VoIP and IP Broadcasting application all the while and integrated with voice processing, signal processing and network technologies. Many features of AP-EIP70 are highly distinguished and they have been designed with high voice quality DSP and integrated with acoustic echo canceller which supports the built-in microphone and 2-way communication of Full Duplex. Also AP-EIP70 supports SIP VoIP signaling protocols and a wide range of voice codec of G711, G726, G729 and G.723.1 depending on bandwidth availability.
Power over Ethernet
AP-EIP70 has one (1) 10/100M Fast Ethernet port for Power over Ethernet (PoE) which can be connected to PoE Ethernet switch or PoE converter for use.
Various External I/O Interface
AP-EIP70 emergency call IP phone has external Audio Input/Output interface optionally. This function provides the external speaker output. When this device is installed at noisy environment such as street, external AMP-speaker output is necessary for loud sound. Also, AP-EIP70 supports RS232/RS485 serial communication channel, alarm input and relay out terminal interface for external device support such as door open, alarm light control device.
Firmware Upgradable Structure
The hardware architecture of AP-EIP70 is designed on programmable high-performance RISC CPU, so that the AP-EIP70 is capable of adopting new capabilities and improvement by downloading firmware from the website or setting its auto-upgrade option, you can always use the latest version of features without much effort.

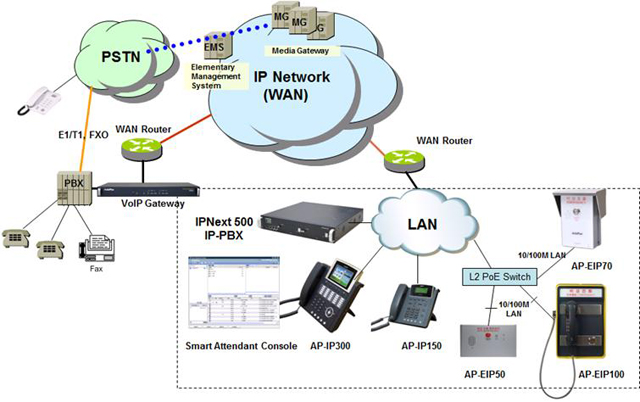

AddPac Total Solution
AddPac Technology is not just another vendor of emergency SIP Intercom, but provides various product families appropriate for your network environment. To meet your needs, AddPac supports VoIP, media gateways and IP telephony devices, IP audio/video terminals, video conference, audio/video MCU, IP audio/video broadcast, network DVR solution, audio/video recording solutions, and traffic controller QoS device solutions. In the future all IP-based multimedia telephony environment, various audio/video resources should be shared on an IP network; thus, the integration of the entire solution is very important issues. AddPac emergency call IP phone, which is a collection of experiences and know-how accumulated in the enterprise and service provider markets, would meet the needs of customers who ask for a next-generation IP based emergency call product solution
IP emergency phone using speaker phone service features
SIP Signaling Stack
Provide optimal voice quality with enhanced QoS
Flash Memory 4MByte, SDRAM 32MByte
STILL Chassis Frame, Water Resistance for Outdoor Application
PoE (Power over Ethernet) function
Internal MIC, SPEAKER
Various I/O Interface : alarm input, relay out, RS232/RS485, Audio
Input/Output RCA Type
Emergency Call Button and LAMP
Supported Codec : Voice Band - G.711, G.723,
Acoustic Echo Canceller function support
Full Duplex function support
High Performance RISC + DSP Architecture
4Mbyte Flash Memory
One(1) 10/100Mbps Fast Ethernet with POE
Acoustic Echo Canceller
Full Duplex AEC
Full-duplex operation during double-talk
One channel AEC, one channel LEC up to 256ms shared
Cancels echoes with up to 10dB echo return
Advanced noise reduction(up to 20dB)
RS232/RS485 Interface : 2-Port
Alarm Input : 2 Port
Relay Out : 2 Port
External Audio In/Out : RCA Type
Impedance : 8 +-15%ohm at 1kHz, 1.0 Vrms
Sound Pressure : 90 +- 3dB at 0.1W/10 CM
at 800Hz, 1.0kHz, 1.2kHz, 1.5kHz
Resonance Level : 550Hz +- 20%Hz at Fo Hz, 1.0Vrms
Frequency Range : Fo Hz ~20kHz
Input Power : Normal : 1.0 W, Max : 2.0W
External Power VAC 110~220 VAC, 50/60Hz, 12V 1A
Power over Ethernet (POE) :
Input voltage range 36V to 57V
0°C to + 45°C (32° to 112°F)
-40°C ~ +85°C (-40° ~ +185°F)
5% ~ 95% (Non-condensing)
Dimensions(H x W x D)
166mm x 102.8mm x 40.5mm (H x W x D)
Static and IEEE 802.1Q VLAN Routing
Point-to-Point Protocol (PPPoE for ADSL), etc.
- G.711, G.723.1, G.726, G.729, etc.
SIP Signaling Stack Support
Voice Processing Features Supports
- VAD, DTMF, CNG, G.168
Enhanced QoS Management Features for Voice Traffics
