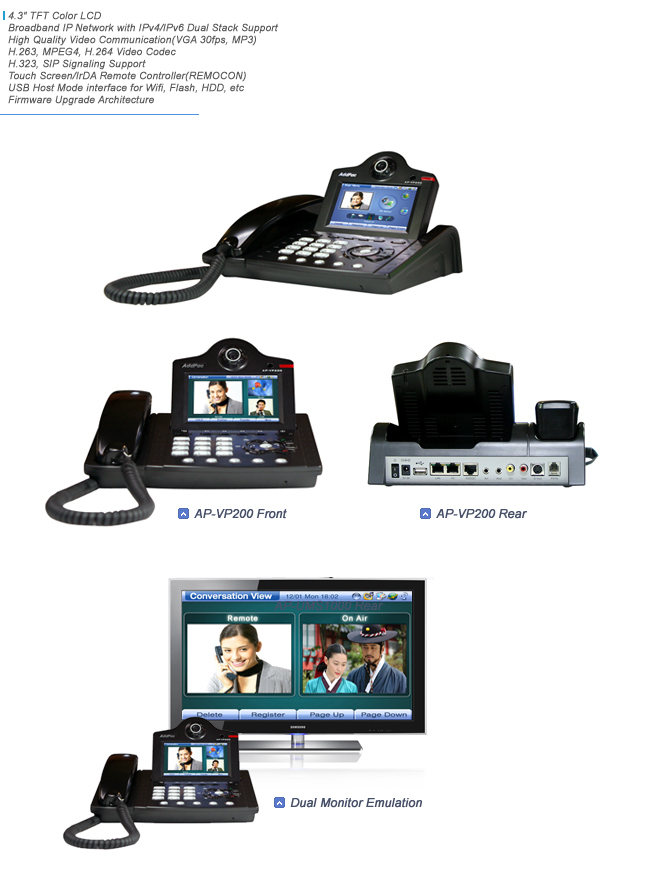

AP-VP200 is an IP video phone that allows you to make high quality and high resolution video communications by using the Internet. This product supports a video conference, video phones, VoD, IPTV, network surveillance, and aid to communication access for the disabled optimally through the latest audio/video codecs and a variety of AV I/O interfaces. The criteria of choosing a video phone are high quality audio and video.
New World of Advanced and High Quality IP Video Communications Opens!
AP-VP200 is a high-performance multi-functional IP video phone where the state-of-the-art video processing technology is added to the voice processing technologies developed by AddPac in the VoIP field. This product provides advanced features and services such as video codecs (e.g. H.263, MPEG-4, H.264, and JPEG), RCA A/V I/O interfaces, QoS, and public IP sharing as well as multiple VoIP signaling protocols such as SIP and H.323.
¡°Advanced Video Communications¡±, New Criterion of Selecting a Video Phone
AP-VP200 is a high-performance multi-functional IP video phone where the state-of-the-art video processing technology is added to the voice processing technologies developed by AddPac in the VoIP field. AP-VP200 has better video features since it ensures high definition video due to a high-resolution LCD and you can enjoy a large screen connected to the external monitor via the S-Video interface port. Since AP-VP200 supports networks of 64 Kbps to several Mbps, it is available at any Internet-enabled place. Above all, AP-VP200 ensures the best video quality due to the ¡®rate control¡¯ function that ensures the best video quality and frame rate at a limited bandwidth and the high-end error resilience technology for troubleshooting various packet failures on the Internet.
Firmware Upgrade Enabled
The high-performance RISC CPU and DSP of AP-VP200 are all programmable; thus, the features of AP-VP200 can continue to be improved, changed, or added. If you download an added or changed feature from the home page directly or set an automatic upgrade option whenever feature addition or change is done, you can use the latest feature without further operations.
Crucial Issue, "Audio Service"
Voice helps make more dynamic communications in the same video environment. As times have changed, the voice quality should change. The voice processing codec of the traditional phones has had the satisfactory message delivery performance; however has not met a requirement for higher voice quality. AP-VP200 presents a new possibility of voice support for telephone communications. AP-VP200 also provides the advanced feature that allows you to install higher-quality the AAC* codec in addition to various G.xxx series sampling voice codecs of 8 Khz, which are the standard VoIP codecs, for IP-based voice broadcasting, IP-based video broadcasting, VoD services, or file browsers (e.g. MP3).
Terrific Supplementary Services
The supplementary services of AP-VP200 as well as its various features would meet your needs. AP-VP200 provides various services that allow you to use a phone easily, which include a phone book, a latest call log, and Caller ID (CID). Also, this product as well as AddPac IP-PBX solutions supports a wide variety of supplementary services such as voice and video mail services in addition to basic services such as a call transfer. The advantage of AP-VP200 is to support the unique supplementary services of AddPac. Broadcasting, instant messaging, IPTV, and network camera are the main supplementary services of AddPac. If AP-VP200 is connected to the internal broadcasting equipment, IP-based voice and video broadcasting could be transmitted or received at any place connected to AP-VP200. This product can inter-work with the instant messaging server, IPTV server, and network DVR solution of AddPac to provide advanced services.
Reliable Video Phone
AP-VP200 is an integrated network equipment that enables IP routing, NAT/PAT, DHCP Server/Relay, public IP sharing, and QoS. Advanced QoS and security as well as various network services should be supported to adapt to a variety of network environments such as high-speed individual subscriber networks (e.g. xDSL, cable networks, and FTTH), Metro Ethernet, Metro ATM, private lines, and flexible IPs. In this regard, AP-VP200 has two 10/100 Mbps Fast Ethernet ports to support a variety of network and security services such as high-performance LAN-to-LAN routing, bridge, and NAT/PAT.
In addition, AP-VP200 concurrently supports H.323 and SIP, which are call control protocols. The technologies of AP-VP200 are differentiated from those of the traditional equipments in that an AP-VP200 supports two call control protocols, which are H.323 and SIP, concurrently; thus, even if AP-VP200 moves to another Internet Telephony Service Provider (ITSP) whose call control protocol is different, AP-VP200 can easily adapt to a new environment without change. AP-VP200 is a reliable solution that ensures good technologies.
AP-VP200 supports the USB master mode interface for the standard USB flash memory, a USB hard disk, a USB keyboard, and a USB mouse. Several USB devices can be connected by using a USB hub. A separate power supply device should be used for a USB device that requires much power consumption since limited power is supplied to the USB device. If USB memory is used, AP-VP200 enables a file browser, and decodes JPEG, PMA (video stream format of AddPac), and XVID* (MPEG4, MP3) files. Video data that require much memory can be saved in external USB memory.
Privacy and Security
AP-VP200 supports reliable service security as well as network access security. This product allows you to check the target phone number before answering a phone through Caller ID Detection (CID) and to disable the audio or video functions easily by using the wireless remote control. If you select the 'Privacy' menu, you can disable either or both of voice and video in advance.
The performance and reliability of AddPac VoIP gateway series, ATM routers, and WAN routers have been recognized in global markets as well as the Korean market. AP-VP200, which is a collection of experiences and know-how accumulated in the enterprise and service provider markets, would be a solution that meets the needs of customers that ask for next-generation communications.
Supports high quality
video communications of 30 fps.
Enables dual monitor
Supports rate control for
the best video quality and frame rate at a limited bandwidth.
Applies high-end error
resilience to troubleshoot various packet failures on a network.
(Display:WQVGA, VGA30fps, AAC*)
Touch screen using LCD
(equipped with a pen), remote control, and menu key on the front panel
performance programmable DSP
H.323, SIP Dual Stack
Memory 8MByte, SDRAM 64MByte
Expanded Video I/O
Interface: Composite (RCA)¡¿2, Video Output: S-Video¡¿1
