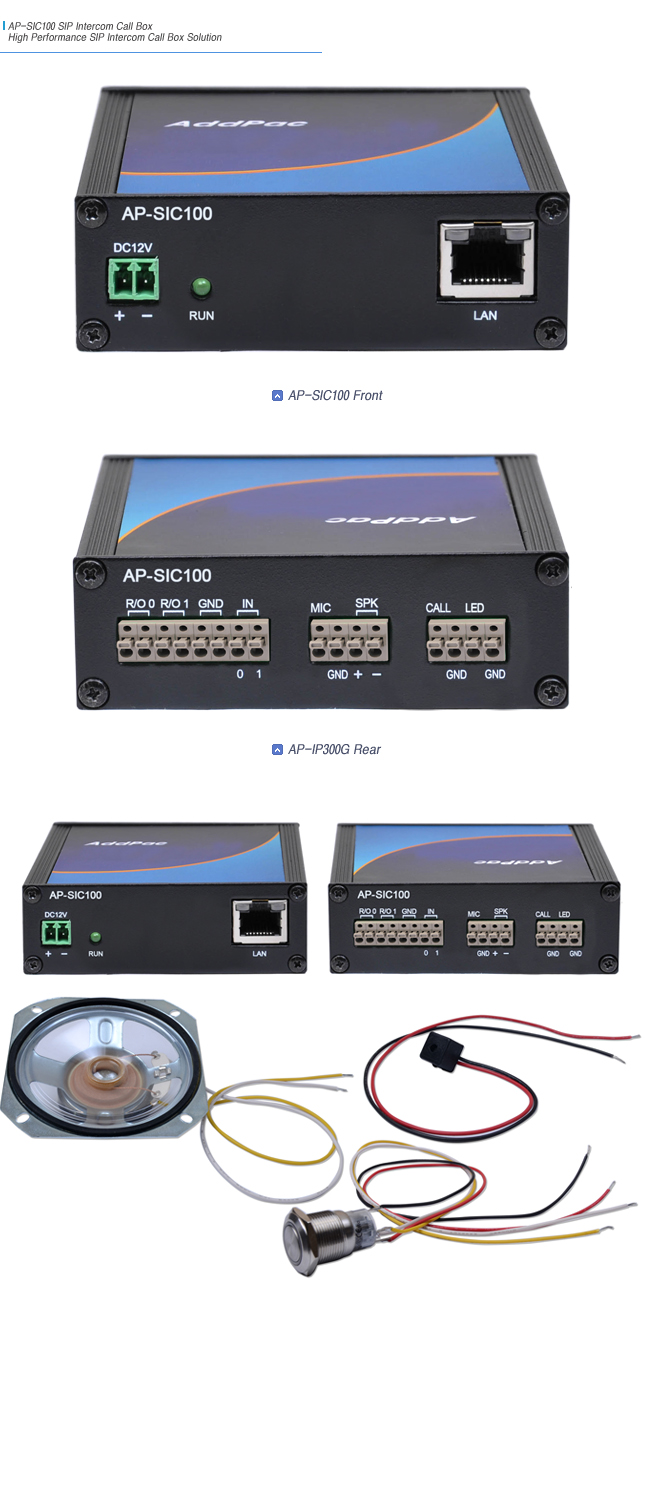

AP-SIC100, AddPac SIP Intercom Call Box, is the SIP VoIP communication device that enables the high-quality SIP based VoIP communications. This SIP intercom Call Box can be used in many different application area requiring VoIP call service features and supports VoIP telephony service at optimum level in the general internet environment such as ADSL through all different kinds of voice codec, speaker interface and Power over Ethernet (PoE). This SIP call box supports external MIC., Speaker, Call Button with status LED interface for custom application like as subway station, railroad, and public space VoIP communication device.
SIP Call Box for Multipurpose VoIP Communication Service
AP-SIC100 is a SIP Call Box that AddPac has accumulated from VoIP and IP voice broadcasting application all the while and integrated with voice processing, signal processing and network technologies. Many features of AP-SIC100 are highly distinguished and they have been designed with high quality voice DSP hardware architecture and integrated with acoustic echo canceller which supports the built-in microphone and 2-way communication of full duplex. Also AP-SIC100 supports SIP VoIP signaling protocols and a wide range of voice codec of G711, G726, G729A and G.723.1 depending on bandwidth availability. AP-SIC100 SIP call box is designed to provide enhanced IP telephony functionality to meet the wide range of business user requirements. This SIP call box optimally delivers rich featured voice telephony service on ordinary internet infrastructure as well as AddPac IP-PBX environment on local LAN as a fully featured IP extension for the complete AddPac VoIP solution.
Power over Ethernet
AP-SIC100 has one (1) 10/100M Fast Ethernet port for Power over Ethernet (PoE) which can be connected to PoE Ethernet switch or PoE converter for use.
AddPac Total Solution

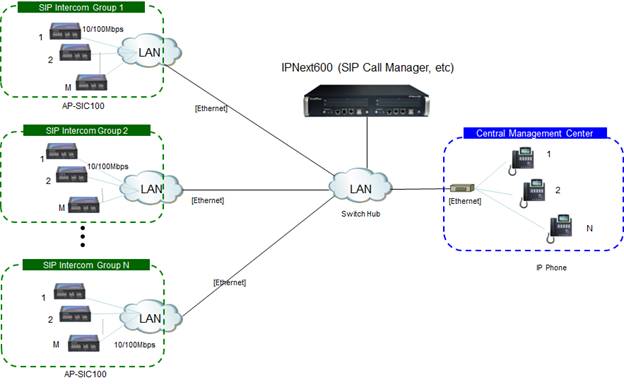

AddPac Technology is not just another vendor of SIP Call Box, but provides various product families appropriate for your network environment. To meet your needs, AddPac supports VoIP, media gateways and IP telephony devices, IP audio/video terminals, video conference, audio/video MCU, IP audio/video broadcast, network CCTV solution, audio/video recording solutions, and traffic controller QoS device solutions. In the future all IP-based multimedia telephony environment, various audio/video resources should be shared on an IP network; thus, the integration of the entire solution is very important issues. AddPac emergency call IP phone for outdoor, which is a collection of experiences and know-how accumulated in the enterprise and service provider markets, would meet the needs of customers who ask for a next-generation SIP based VoIP Call Box product solution
스피커폰 기능을 사용한 SIP 음성통화장치
SIP 표준 VoIP 시그럴링 지원
인터넷 상의 다양한 지연 및 패킷 오류에 대응하기 위한QoS기술을 적용해 최적의 음질 제공
Flash Memory 4MByte, SDRAM 32MByte
PoE (Power over Ethernet) 기능
외부 마이크, 외부 스피커, 외부 호출버튼 및 LED 인터페이스 지원
외부입출력 인터페이스 : 알람/릴레이포트
지원 코덱 : Voice Band - G.711, G.711PLC, G.723, G.726, G.729 등
Acoustic Echo Canceller 기능 제공
Full Duplex 기능 제공
High Performance RISC + DSP Architecture
4Mbyte Flash Memory
One(1) 10/100Mbps Fast Ethernet with POE Capability
Call Button, LED Interface
Alarm Input : 2 Port
Relay Out : 2 Port
External MIC Interface
External SPK Interface
External Power VAC 110~220 VAC, 50/60Hz, 12V 1A
Power over Ethernet (POE) :
Input voltage range 36V to 57V
0°C to + 45°C (32° to 122°F)
-40°C to + 85°C (-40° to 185°F)
5% to 95% (Non-condensing)
Static and IEEE 802.1Q VLAN Routing
Protocol (PPPoE for ADSL), etc.
- G.711, G.723.1, G.726, G.729, etc.
- VAD, DTMF, CNG, G.168
Management Features for Voice Traffics
