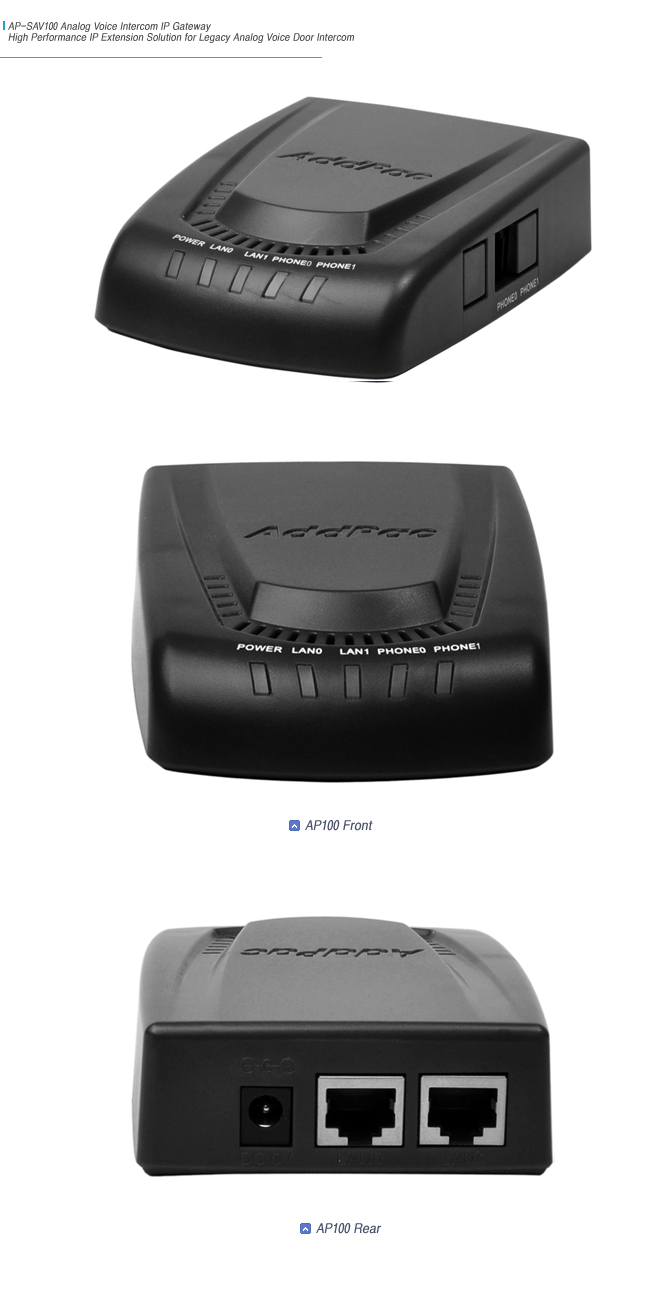

AP-SAV100 analog voice intercom IP gateway is high performance IP extension gateway solution for legacy analog voice door intercom. This analog intercom IP gateway provides the FXS VoIP interface for legacy analog voice. It uses the SIP VoIP signaling protocol and legacy voip voice codec like as G.711, G.729.A, providing an excellent scalability by interworking with IP phone, and soft phone for smart phone, PAD, TAB, etc.

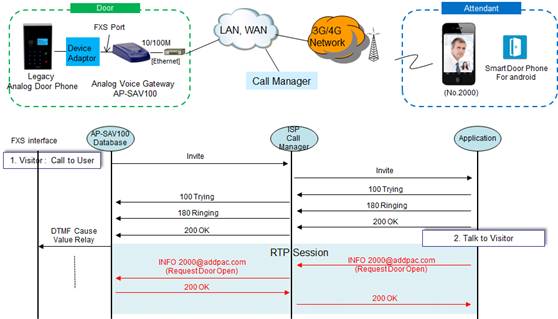

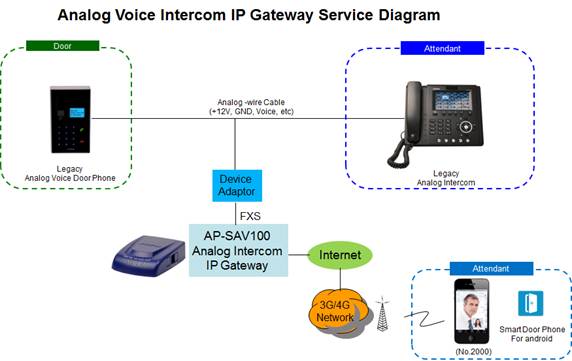

Smart IP extension gateway for legacy analog door intercom
AP-SAV100 analog intercom IP gateway is combination of SIP VoIP signaling technology and VoIP voice codec technology. Especially, it applies ¡°Error Resilience¡± technology to cope with various packet errors to secure optimum level of voice quality in limited bandwidth environments. It supports G.711, G.726, G.729, G.723 voice band codec. And, for enhanced voice quality, AP-SAV100 supports full duplex voice communication scheme.
Firmware Upgradeable Structure
AP-SAV100 RISC CPU and DSP are all programmable structure so that user may use the latest features without much effort by simply setting an auto upgrade option or download from the homepage.
Smart Web Manager Function
AP-SAV100 is embedded with smart web manager for easy control of analog voice door intercom IP gateway. User may setup/manage AP-SAV100 analog voice door intercom IP gateway through PC, smart phone, and tablet device.
AddPac VoIP and Multimedia products are well recognized in terms of performance and stability throughout the world. With our accumulated experience in enterprise market and communication market, AP-SAV100 will satisfy the needs of customer along with AddPac intercom solution.
Overall Features
Legacy Analog Video Intercom IP Extension
Gateway
FXS Analog VoIP Interface Support for Legacy
Analog Voice Interface
High Performance RISC + Programmable DSP
SIP VoIP signaling stack Support
DTMF Tone Relay to FXS Interface
Support QoS control to secure the optimum level
of voice quality
Apply high end error resilience to cope with
various packet errors in network
Network interface: 10/100Mbps fast Ethernet
interface x 2
Audio and Telephone Features
G.711, G.726, G.729, G.723, etc, Voice Codec
SIP VoIP Signaling Stack
¡¡
CPU
High Performance RISC+DSP H/W Architecture
Memory
Flash Memory
4 Mbyte
SDRAM Memory
16Mbyte SDRAM
Network Interface Module
LAN Port
Two(2) 10/100Mbps Fast Ethernet
Voice Interface
Analog Voice
1-Port FXS Analog Voice Interface
Power & Operation Environments
Power Requirement
External Power VAC 110~220 VAC, 50/60Hz, 5V 2A
PoE (Power over Ethernet)
IEEE802.3af compliant
Input voltage range 36V to 57V
Short-circuit Protection
Operating Temperature
0¡ÆC to + 45¡ÆC (32¡Æ to 112¡ÆF)
Storage Temperature
-40¡ÆC ~ +85¡ÆC (-40¡Æ ~ +185¡ÆF)
Relative Humidity
5% ~ 95% (Non-condensing)
Dimensions
H x W x D (mm)
28mm x 135mm x 135mm
IP Routing Protocols
Static and IEEE 802.1Q VLAN Routing
WAN Protocols
Point-to-Point over Ethernet Protocol for ADSL Networking (PPPoE)
Voice over IP Services
SIP protocol support compliant with IETF RFC3261(or RFC2543)
G.723.1, G.729.A, G.711 Voice Compressions
Voice Processing Features Supports
- VAD, DTMF, CNG, G.168, and T.38 G3 FAX Relay
Enhanced QoS Management Features for Voice Traffics
System Performance Analysis for Process, CPU, Connection I/F
Configuration Backup & Restore for APOS Managements
Debugging, System Auditing, and Diagnostics Support
System Booting and Auto-rebooting with Watchdog Feature
System Managements with Data Logging
IP Traffic Statistics with Accounting
Other Scalability Features
DHCP Server & Relay Functions
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging (IEEE Standard) Function
- Spanning Tree Bridging Protocol Support
- Remote Bridging Support
- Concurrent Routing and Bridging Support
