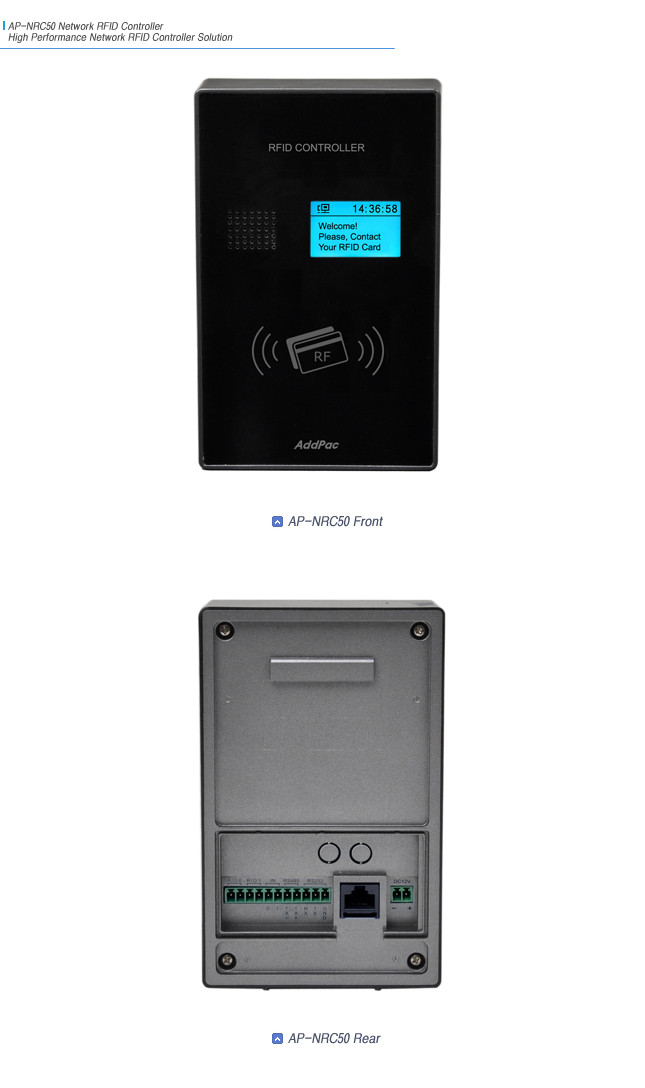

AP-NRC50 network RFID controller is a employee access control unit based on RFID card through network. It supports both LAN interface for standalone mode and RS232/RS485 interface for AddPac video door phone clone mode, providing an excellent scalability by interworking with AddPac Access Control Server System(IP-PBX + Time Attendance). AP-NRC50 provides RFID card service for easier access of employees.

Standalone Mode and Clone Mode

AP-NRC50 network RF controller is a device to open and close the entrance gate after verifying the identity of employee. It is embedded with alarm, relay output port, and RS485 interface function to control the gate remotely by interworking with automatic gate. AP-NRC50 supports device management service. The device management function provides user management function, group management function, setup management function, RFID card register and management, and access log function.
To extend the application service such as time attendance service, AP-NRC50 should interworks with AddPac access control server system like as AP-ACS1000. AddPac access control server system supports login control, daily attendance rules, monthly attendance rules, reporting service for admin, etc.
AP-NRC50 supports both LAN interface for standalone mode and RS232/RS485 interface for AddPac video door phone clone mode. Single IP address is enough when AP-NRC50 is operated as a clone mode of AddPac video door phone like as AP-VAC50, etc.

Firmware Upgradeable Structure

AP-NRC50 RISC CPU is programmable structure so that user may use the latest features without much effort by simply setting an auto upgrade option or download from the homepage.

Smart Web Manager Function

AP-NRC50 is embedded with Smart Web Manager for easy control of video door phone. User may setup/manage IP video door phone through PC, smart phone, and tablet device.

AddPac door access control products are well recognized in terms of performance and stability throughout the world. With our accumulated experience in enterprise market and communication market, AP-NRC50 will satisfy the needs of customer along with AddPac door access control solution.

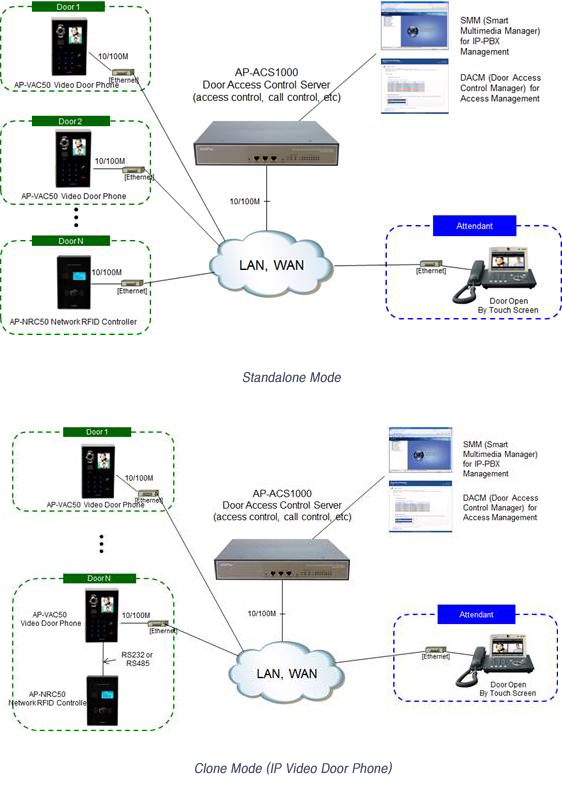

Network Diagram

Overall Features
	High performance RFID controller solution
	Network (LAN) based RF Controller Solution : Standalone Mode
	RS232/RS485 Interface Support for AddPac IP Video Door Phone Interworking : Clone Mode
	Interworking with AddPac ACS(Access Control Server) for RFID Registration
	Blue LED backlight LCD, 128 x 64 display resolution
	Internal Speaker
	Powerful Network Protocols (PPPoE, DHCP, Static Routing, etc)
	Firmware Upgradeable Architecture
	Network interface: 10/100Mbps fast Ethernet interface x 1
	Support RS232/RS422/RS485 interface, alarm input, relay output port
	Support Power over Ethernet (PoE) : Option
