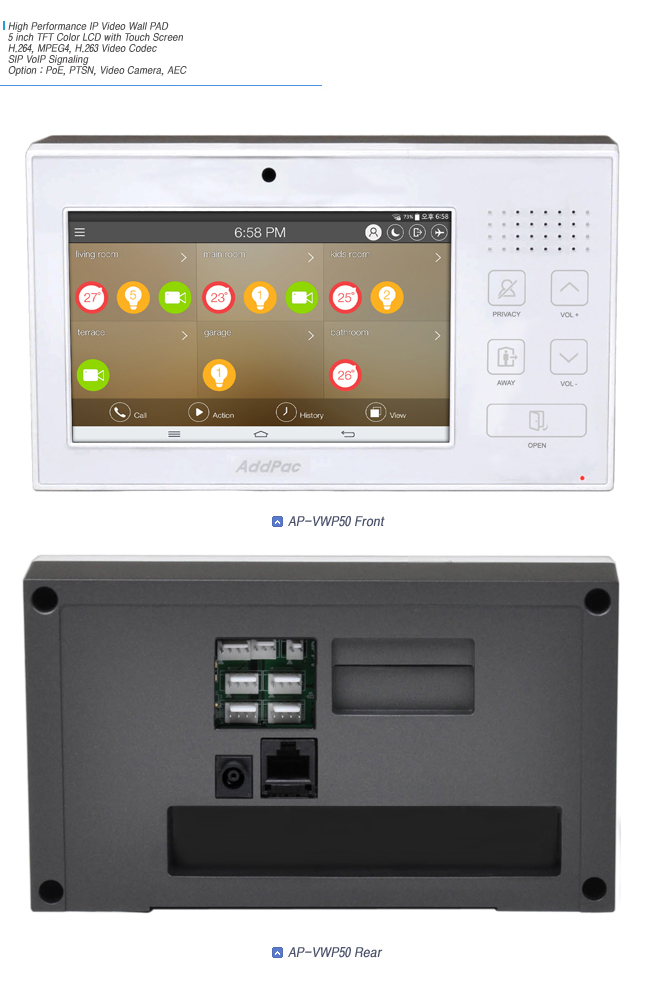

AP-VWP50 Smart IP video wall PAD controls visitor access through 5 inch LCD screen using internet. It has an excellent scalability using SIP standard VoIP signal process feature by interworking with AddPac IP-PBX, smart hub for sensor devices, IP video door phone, IP camera for home, and smart pad/phone with AddPac application software. It also supports the state of the art audio/video codec optimally. It also provides enterprise visitor access control solution along with AddPac IP Video Door Phone, AP-ACS1000 Access Control Server.
AP-VWP50 is an IP video wall PAD that allows you to make high quality voice communications and video monitoring service by using the Internet. This product supports a point-to-point video communication optimally through the latest audio/video codecs and a variety of I/O interfaces. Also, this product provides 5 inch LCD touch screen for easy connection. Now, the criteria of choosing a IP video wall PAD are high quality audio, video and easy connection issue.

New World of Advanced and High Quality IP Video Wall PAD Opens!

AP-VWP50 is a new IP video wall PAD for apartment, house, villa, etc where Internet voice communications are combined with Internet video monitoring. This product provides advanced features and services such as video codecs (e.g. H.263, MPEG-4, and H.264), QoS, and SIP VoIP signaling protocol.

Smart Home Equipment Solution

AddPac smart home equipment solution is to control zigbee/zwave home sensor devices and legacy wired sensor devices via smart hub, to control the visitor access through SIP video door phone which can be installed at the home entrance, and to monitor the smart home IP camera video with internet connectivity. AddPac smart home equipment solution consists of smart wall pad like as AP-VWP50, IP video door phones, various smart hub equipment for sensor devices, video phones for security guard, and smart pad/tab and smart phone application software, to provide an excellent scalability.

New Paradigm for IP Telephony: IP Video Telephony + Video Monitoring

AP-VWP50 IP video wall PAD combines AddPac's field proven IP Telephony Technology and IP based Video Monitoring Technology.
AP-VWP50 is market-ready IP video wall PAD which provides a full suit of remarkable functionality compared to other typical video wall PAD. Apart from IP voice telephony service, it supports video intercom service with IP video door phones such as AP-VAC80. Furthermore, installed along with AddPac's comprehensive IP-PBX system, it not only improves operation offering an wide variety of features such as Music on Hold, Coloring service, Call Transfer but also provides the easy-to-use, intelligent IP voice telephony service.

Reliable Video Wall PAD

AP-VWP50 is integrated network equipment that enables routing, NAT/PAT, DHCP Server/Relay, and QoS. Advanced QoS and security as well as various network services should be supported to adapt to a variety of network environments such as high-speed individual subscriber networks (e.g. xDSL, cable networks, and FTTH), Metro Ethernet, Metro ATM, leased lines, and flexible IPs. In addition, AP-VWP50 supports standard SIP VoIP signaling protocol.

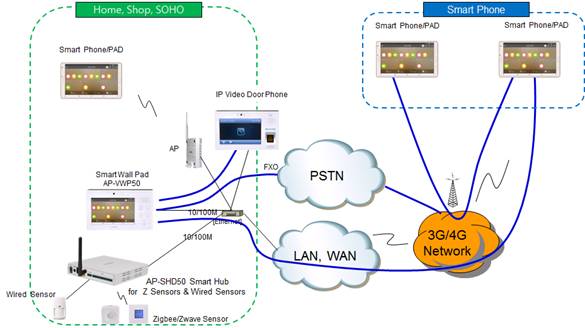

Network Diagram

Overall Features
	Supports high quality video monitoring of 30 fps.
	Touch Screen based 5 inch TFT LCD
	Supports rate control for the best video quality and frame rate at a limited bandwidth.
	Applies high-end error resilience to troubleshoot various packet failures on a network.
	Touch Screen, and Various Touch Sensor Key
	High performance programmable DSP
	Standard SIP VoIP Signaling Support
	Flash Memory 512 MByte NAND, SDRAM 128MByte
	Expanded I/O Interface : RS232/RS485, 2 Alarm In & 2 Relay Out
	Network Interface: 10/100 Mbps Fast Ethernet Interface x 1
	External Power Supply Adaptor : default , Power Over Ethernet(PoE) : Option
Video Features
	Supported Codec: H.263, MPEG-4, and H.264
	Applies high-end error resilience to troubleshoot various packet failures on a network.
Audio Features
	Supported Codec: Voice Band – G.711, G.726
Telephone Features
	On-screen key pad
	Caller ID & Hold
	PSTN Interface with CID :Option
	G.726, G.711, etc.
	SIP VoIP Signaling
Network Services
	High-performance IP-Routing Capability with Reliability
	Traffic Queuing, and SNMP MIB v2 for Network Management Features
	Standard & Extended Access List for Security Functions
	Essential Scalability Features such as DHCP Server & Relay, NAT/PAT, IEEE Transparent Bridging, IP Accounting, and Debugging/Diagnostics, etc.
	DNSProxy, UPnP, MAC Address Filter Service
