VoiceFinder AP3110 small size IP voice broadcasting server is installed in enterprise, government office, turner, and school network. It is a fast internet access small size IP broadcasting device which provides voice broadcasting transmission function through internet network using IP protocol in headquarter, branch and site. It also provides previously existing 8KHz based PSTN voice quality broadcasting server function.
VoiceFinder AP3110 IP voice broadcasting server supports an excellent solution for voice broadcasting task help through enterprise environment internet network. With an excellent performance, it is designed to maximize the full satisfaction of user. Also, VoiceFinder AP3110 IP voice broadcasting server supports two stabilized fast Ethernet as well as 2 maximum audio broadcasting codec module. Installation and operation is easy with beginner.
Hardware Type High Performance Voice Broadcasting Server
AddPac IP voice broadcasting solution is composed of AP3110 IP voice broadcasting serve, AP1601 IP voice broadcasting terminal, and AP-EMBMS broadcasting management system. AP3110 broadcasting server is designed to install 2 module slots and provide maximum of 4 voice broadcasting. AP3110 broadcasting module is design to support PSTN voice quality codec such as G.711 and G.729, G.723 to accept under inferior internet environment. AddPac AP3110 IP broadcasting server is combined with high performance DSP hardware and high performance processor to encode/transmit high quality voice signal in real time.
Real Time Live IP Voice Broadcasting
AddPac AP3110 IP voice broadcasting server opens a whole new world of high quality real time voice broadcasting based on an excellent performance and stability. A video image with compressed G.711 supports stabilized high quality audio through QoS algorithm in Broadband convergence Network. Especially, user may able to use voice codec to setup an appropriate bandwidth in accordance with network status so that it would accept from low bandwidth to high bandwidth network environment.
Unicasting/Multicasting Protocol
AP3110 IP voice broadcasting server provides Multiple Point-to-Point Unicasting IP audio broadcasting function as well as IGMP based Multicasting Routing. It can be used or setup properly in accordance with user network operation as well as to provide economical/efficient solution as a fast Ethernet access IP broadcasting system.
Powerful Network, CPU Interface

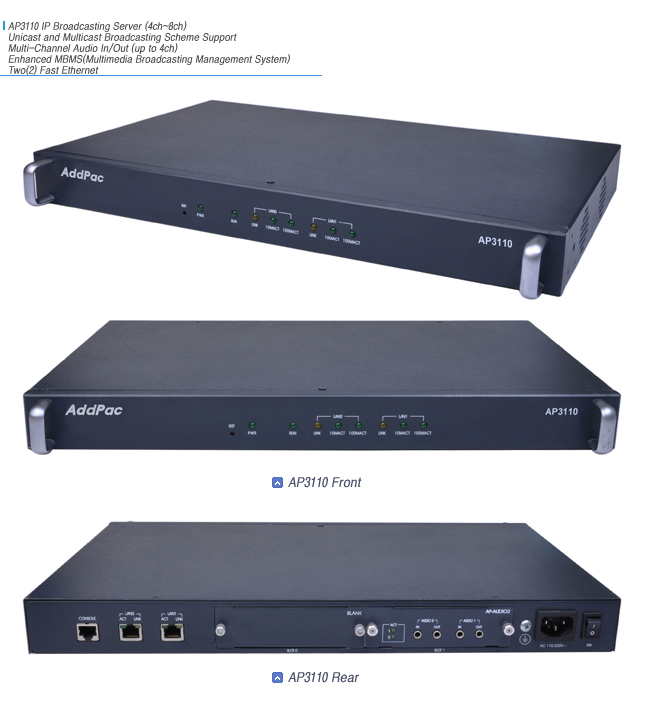

AP3110 IP voice broadcasting server is designed to support high performance service in terms of hardware architecture aspect as IP multichannel broadcasting server. With status check LED, user may able to verify line status, LAN interface status, and CPU status at a glance. Two fast Ethernet 10/100Mbps ports and RS232C console interface is a base of various network services such as LAN-to-LAN routing service, bridge service, and NAT/PAT service.
High Satisfaction Audio Broadcasting and Additional Service
AddPac’s various IP broadcasting device series are well recognized along with VoIP products domestically and internationally. With our accumulated experience in enterprise market and communication market, AP3110 small capacity IP voice broadcasting server will satisfy the needs of customer in terms of various services. It supports AddPac QoS algorithm function to support stabilized service function in internet network

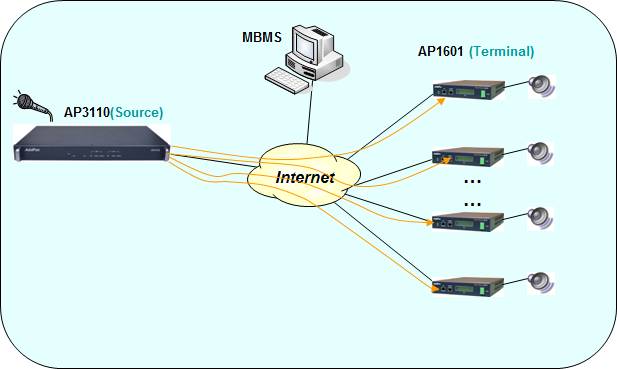

Network Diagram
High Performance PowerPC RISC Microprocessor Architectures
High Quality Audio Broadcasting Module Using High-End DSP
G.711, G.729, etc Codec
High Performance Network Modular Structure
IP Voice
Broadcasting Module
①
AUDIO2 Module
2-Port Audio In/Out DSP Processing Module
Maximum 4 Port Audio Input / Output Multichannel IP Audio Broadcasting System
Support Multiple Point-to-Point IP Broadcasting Function
Support IGMP, IP Multicasting Routing and IEEE802.1Q VLAN
2Port Fast Ethernet 10/100Mbps Interface
High-performance IP-Routing Capability with Reliability
Static and IEEE 802.1Q VLAN Routing Protocols including VRRP
Traffic Queuing, and SNMP MIB v2 for Network Management Features
Standard & Extended Access List for Security Functions
Support Remote Software Upgrade through FTP and TFT
Support Debugging Environment for Network Administrator
Support User Friendly CLI Setup Environment
Essential Scalability Features such as DHCP Server & Relay, NAT/PAT, IEEE
Transparent Bridging,
IP Accounting, and Debugging/Diagnostics, etc.
- DNSProxy Support
- UPnP Support
- MAC Address Filter Service
Microprocessor
High-End RISC Microprocessor
Memory
Flash Memory
4Mbyte
SDRAM Memory
32Mbyte High Speed DDR2
Network Interface
Fixed LAN0 Port
One(1) 10/100Mbps Fast Ethernet
Fixed LAN1 Port
One(1) 10/100Mbps Fast Ethernet
Console Port
Two(2) RS-232C Interface
Audio Interface Module
AP-AUDIO2
2-Port Audio In/Out Audio Processing Module
Audio IN : MIC, Line In
Audio OUT : HP(Head Phone), Line Out
AP-AUD1S3
1-Port Audio IN/Out, 3-Port FXS(3 x RJ11)
Audio IN : MIC, Line In
Audio OUT : HP(Head Phone), Line Out
AP-AUD1S2O1
1-Port Audio IN/Out, 2-Port FXS(2 x RJ11), 1-Port FXO (1 x
RJ11)
Audio IN : MIC, Line In
Audio OUT : HP(Head Phone), Line Out
AP-AUD1O3
1-Port Audio IN/Out, 3-Port FXO(3 x RJ11)
Audio IN : MIC, Line In
Audio OUT : HP(Head Phone), Line Out
Power Requirement
VAC 110~220V, 50/60Hz, 5V 8A, 40Watt
Operating Temperature
0°C to + 50°C (32° to 122°F)
Storage Temperature
-40°C to + 85°C (-40° to 176°F)
Relative Humidity
5% to 95% (Non-condensing)
Dimensions(H x W x D)
44 x 444 x 220(mm) - 19" Rack Mountable Chassis
Weight(kg)
2.2Kg
Routing Protocol
Static
IGMP Protocol, Multicasting Packet Generation
IP Voice Broadcasting Function
Multicasting Method VoIP Audio Broadcasting
Function
Multiple Point-to-Point Method VoIP Audio
Broadcasting
Enhanced QoS Management Features for Voice/Audio
Traffic
Security Function
IP Access Screen
IP Packet Filtering
User Authentication (CHAP/ PAP)
Auto Disconnection for Telnet/Console Session
Multi Level User Account Management
Standard SNMP Agent (MIB v1/2)
Network Managements
Web based Device Management
Remote Site Management using Console, Rlogin,
Telnet
Traffic Management Function
Additional Service
Bridging Function : Spanning Tree Bridging
Protocol (IEEE)
DHCP Server and Relay
IP Accounting
PAT(Port Address Translation)
NAT(Network Address Translation)
CLI(Command Line Interface)
NTP(Network Time Protocol)
Support Various Convenience
System Surveillance and Debugging Function
Router Configuration Information Back-Up (FTP,
TFTP)
