VoiceFinder AP2640 is a cutting edge VoIP gateway supporting maximum 32 ports of analog voice interface and digital E1/T1 voice modules. Analog and digital interface of AP2640 provide an optimized call scenario when it interoperates with analog PBX.
Supports 32 ports of analog and digital interface concurrently

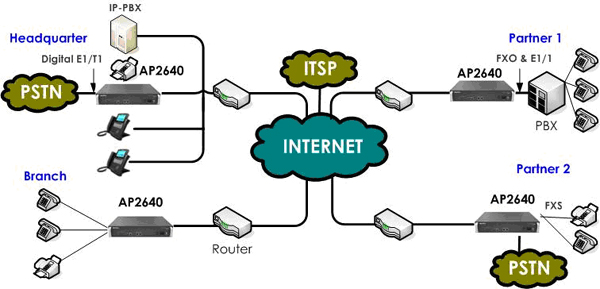

VoIP gateway combining IP-PBX is now suggesting a new model for a main voice communication solution. In order to be a part of advanced VoIP communications naturally in the future, making an excellent choice of choosing VoIP gateway is essential. AP2640 of AddPac is a mid-range VoIP gateway providing total 32 analog interface ports with 2 of digital E1/T1 interfaces. It is suitable for general enterprises, small and public offices. It has functions as a media gateway which interoperates with IP-PBX and it enables to replace small and mid size analog PBX. Especially AP2640 provides an optimal solution of VoIP communications in telephony environments that using telephone lines and PBX to get connect with a head office.
Powerful Network ¡¤ CPU Interface

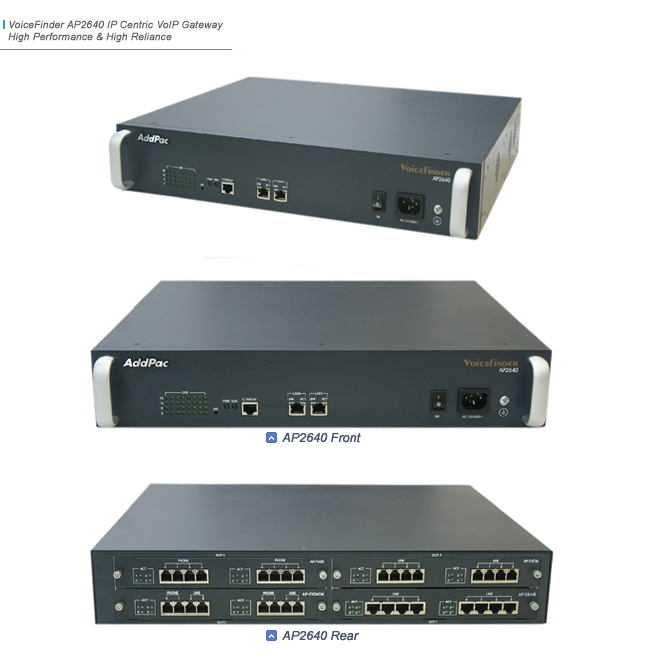

AP2640 is designed to provide high-performance service as a media gateway. It provides LEDs on the front panel indicating operational status, line status, and LAN Interface status of gateway. Two of 10/100Mbps fast Ethernet port and RS232C console interface on front panel of AP2640 are the base for delivering various network services such as LAN-to-LAN routing, Bridge and NAT/PAT service etc
High quality of communication and additional services
Various VoIP gateway series of AddPac is approved for its high performance and reliability in world wide markets. AddPac provides highly advanced VoIP services in order to meet demanding and evolving business requirements of customers. Especially AP2640 has been developed through years of experiences and accumulated know-how from existing enterprises and communication markets. AP2640 provides concurrent triple stack such as H323, SIP, MGCP and QoS (Quality of Service) for high quality of communication service. This will satisfy customers with high expectation.
Flexible for environmental changes
AP2640 is designed to be flexible for environmental changes such as increasing flash, main memory size using SODIMM type socket memory slot. So when configuring IPv6, IVR or VoIP based recoding features on AP2640, it is easy to access new features.
High performance PowerPC RISC Microprocessor Architectures
Supports maximum 32 port analog interface or two E1/T1digital
Digital Port(T1 or E1)
1 / 2 Port
1 / 2 Prot
Flash Memory: 8MB, SDRAM 64MB
Analog voice interface module: FXS8, FXO8, FXS4O4, E&M8
Digital voice interface module: 1-T1, 1-E1, 2-T1, 2-E1
Two port 10/100Mbps fast Ethernet interface
SIP, H.323, MGCP concurrent triple stack
Support Voice Processing Features
- VAD, DTMF,CNG,G.168, and T.38 G3 Fax Relay
- G.723.1,G.729A,G.711 Voice Compressions
High-performance IP-Routing Capability with Reliability
Static, RIP v1/2, OSPF v2 and IEEE 802.1Q VLAN Routing
Protocols including VRRP
Traffic Queuing, and SNMP MIB v2 for Network Management
Standard & Extended Access List for Security Functions
Essential Scalability Features such as DHCP Server & Relay,
NAT/PAT, IEEE Transparent Bridging,
IP Accounting, and Debugging/Diagnostics, etc.
- DNSProxy Support
- UPnP Support
- MAC Address Filter Service
