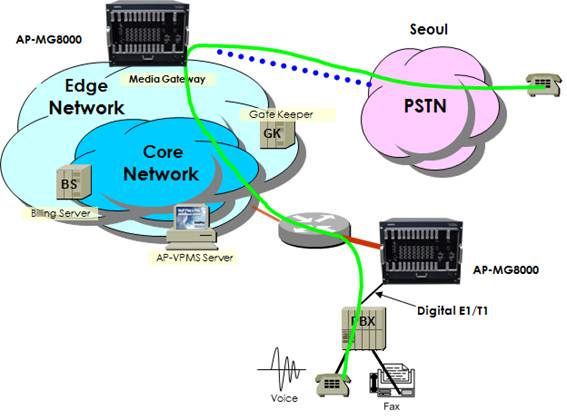

VoiceFinder AP-MG8000 supports maximum 960 channel (32E1/T1) VoIP call processing in real-time as a large scale media gateway with 3U size, targeting ISP and large enterprise market. Moreover, AP-MG8000 supports major VoIP call control protocols including H.323, SIP and MGCP concurrently on one embedded OS, and maintains high voice quality on any types of conventional IP networks by utilizing new level of QoS.
High performance Media Gateway with 480 channel call processing capability

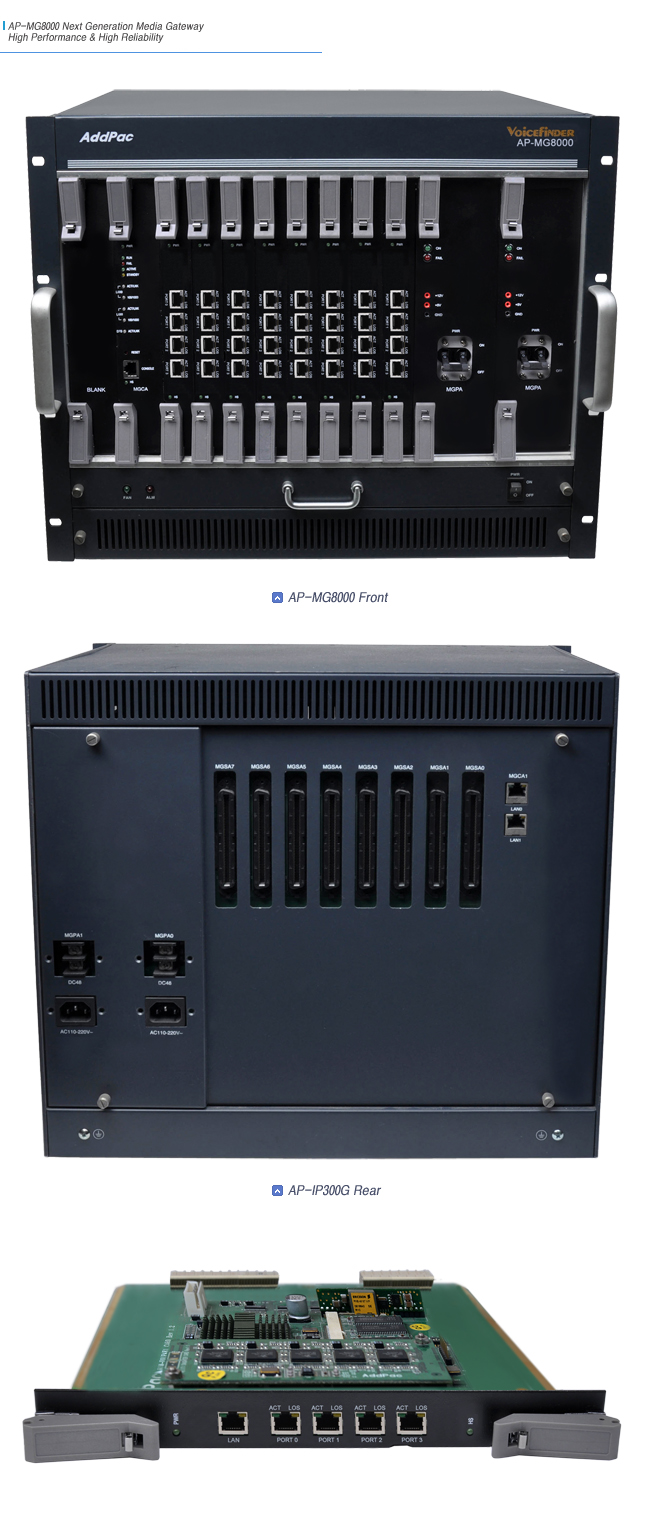

AP-MG8000 can be mounted in 19 inch standard rack and supports 960 channel VoIP call processing in real-time. This market-ready, standards-compliant gateway ensure high voice quality on any types of conventional IP networks supporting AddPac's advanced QoS algorithm as well as standard QoS. AP-MG8000 system consists of a main CPU board slot and VoIP DSP module slots which can be equipped with maximum 4 unit of 4 E1/T1 which has 120 channel VoIP call processing capability per slot. A main CPU board has the two(2)-port Gigabit Ethernet interface and processes VoIP call control protocol such as H323, SIP and MGCP. A 4 E1/T1 VoIP DSP module has its own high performance communication processor and processes VoIP DSP hardware chipset handling, RTP protocol handling, R2, ISDN-PRI, SS7* independently. A single Ethernet port on VoIP DSP module implements VoIP RTP data transmission by being connected directly to network.
Robust solution to meet the demand of high capacity, high performance for enhanced VoIP services
AddPac VoiceFinder VoIP gateways have been recognized with their unmatched level of performance and reliability in the IP telephony market. With the years of experience and the know-how at the enterprise and the carrier-class markets, AP-MG8000 Media Gateway fulfills the clients' demand for high capacity, high performance. Moreover, AP-MG8000 concurrently supports multi-stack operation of H.323, SIP and MGCP call control protocols which are well suitable for any commercial VoIP deployment.
Deliver seamless stability and system consistency for high capacity deployments
AP-MG8000 is a high capacity VoIP media gateway which can concurrently process 960 channel calls. Due to heavy concurrent users, the seamless stability is a major requirement. AP-MG8000 adopts dual PSU(Power Supply Unit) structure for meeting this demand, which ensures system consistency with module replacement during the system operation. Furthermore, 4 E1/T1 VoIP DSP module slot also adopts PCI Hot-swap mode which enables not only module replacement during the system operation but also system consistency without shut down in case of error occurring or extra modules installing.
