With the growth of business customers¡¯ needs for IP telephony and converged applications, the trends towards ¡®All IP¡¯ communication environment are becoming a reality keeping pace with the technological advance of next generation networking. IPNext600 fault tolerant IP-PBX delivers a new cost effective IP communication solution for ¡®All IP¡¯ environment as a core system of AddPac¡¯s comprehensive IP Telephony solution which features various end user terminal equipments such as AP-VP300, AP-VP280 IP video phone, AP-IP300 IP phone, AP-IP120 etc.
Designed on the foundation of high performance embedded RISC CPU, IPNext600 supports the dual System Processor boards. Also, IPNext600 supports the dual module type power supply. It¡¯s ideal IP-PBX system for medium size enterprise taking a full advantage of system stability.
Table 1. Enhanced applications for IPNext600
Support not only various Call scenario such as Call Transfer, Call Forwarding including basic call functions but also Coloring service, Music on Hold, Three-way conference call, Voice Mail and IVR.
¡¤ AP-VP500 Video Phone ¡¤ AP-VP350 Video Phone ¡¤ AP-VP300 Video Phone ¡¤ AP-VP280 Video Phone ¡¤ AP-VP250 Video Phone ¡¤ AP-VP150 Video Phone ¡¤ AP-VP120 Video Phone ¡¤ AP-IP300 IP Phone ¡¤ AP-IP160 IP Phone ¡¤ AP-IP150 IP Phone ¡¤ AP-IP120 IP Phone ¡¤ AP-IP90 IP Phone ¡¤ Smart Communicator ¡¤ Smart Messenger
Next Generation IP-PBX

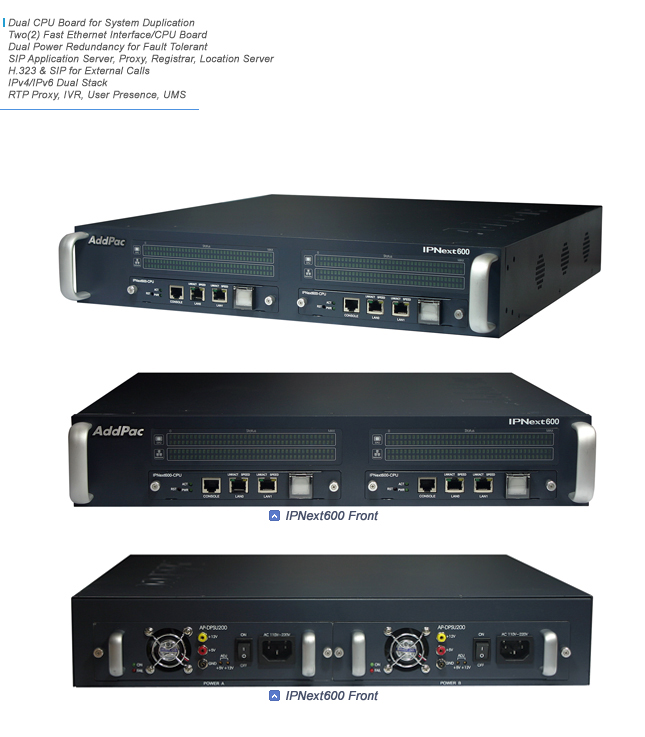

AddPac IPNext600 NGN(Next Generation Network) IP-PBX provides the Active-Standby system duplication features for fault tolerant architecture. For the system duplication, it use the dual(2) Hot-Swap CPU boards at the front part of chassis. Also, it also comes with two(2) 10/100Mbps fast ethernet port and console port per CPU board. Also the front of IP Next600 also provides LED array which has been designed to grasp system and network utilization at a glance.
It features a wide variety of SIP based internal call scenarios such as Basic Call, Coloring Service, Music on Hold, Blind Transfer, Call Pickup, Group Call Pickup, Consult Call, Switching Call, Consult Transfer, Call Waiting, Call Waiting Notify, Call Park, Call Pickup Remote, Hunt Group, supporting SIP, H.323 for external calls concurrently. In addition, high capacity internal NAND flash memory is well-suited to the services which need sizable memory capacity such as Voice Mail ensuring the system consistency and the high availability.
RTP Proxy Features
Since the enterprise network environments configured with an IP-PBX and IP terminals require several IP address, either IPv6 or a private IP address in the NAT environment must be supported to the enterprise networks due to the deficient resources of a public IP address. In such a private IP address environment, the RTP proxy feature is required for reliable multimedia communications between endpoint terminals. The RTP proxy feature of IPNext600 is used to make a communication between a private IP terminal and a public IP terminal among endpoint terminals such as IP phones, make a communication between a private IP terminal and a public IP terminal in the NAT environment, make a communication between private IP terminals, make audio/video broadcasting in private and public IP environments, and to enable audio/video conference calls in private and public IP environments. The RTP proxy feature can operate regardless of VoIP signaling protocols such as H.323 and SIP, and supports dual address systems such as IP version 4 and IP version 6 addresses
One of the most important features of IP-PBX is Automatic Response System (ARS) or Interactive Voice Response (IVR) functionality. Companies, public offices, call centers and other types of enterprises may require different IVR functions. Customizable and time saving capabilities of AddPac¡¯s IP-PBX solution can fulfills all these different types of requirement by providing a great flexibility of IVR Scenario Editor. AddPac IP-PBX solution provides the IVR scenario editor and IVR function management tool to bring satisfaction for each business to maximize application productivity by helping them to design and operate their own Call scenario
Firmware Upgradeable Architecture
Designed on programmable high performance RISC CPU and DSP, IPNext600 is capable of adopting new capabilities and improvement by downloading firmware from website or with its auto-upgrade option as the customers' needs grow. New firmware for AddPac IP-PBX solution components such as video phone, IP phone, Smart Messenger tool can be downloaded from not only web page but also IPNext IP-PBX. IPNext¡¯s software version upgrade system adopts top-down approach and provides IP-PBX system administrators with easy-to-use and efficient methods to achieve the overall management.
User Presence Service
As User Presence Server such as AP-PS2000 interoperates with AddPac IP-PBX products, which are based on its next generation multi-media IP telephony solution; it can provide user presence indication information to Smart Messenger or IP phone (AP-IP300, etc) with presence indication lamp keys. In order to support user presence features on real-time basis, such as user busy, on-line, user away, etc, user presence service function should be provided on IP telephony solution. User presence service function gathers user information (on-line, busy, etc) of each IP terminals from IP-PBX, and broadcasts user information to all or group IP terminals with speed-dial keys (built-in presence indication lamp) , Smart Messenger Program at every second. For enterprise with medium size employee, IPNext600 supports the user presence server function beside call manager function. But, in case of large enterprise, external User Presence Server should be used with IP-PBX due to performance issue independently.
Unified Messaging Service
IPNext600 supports network based unified messaging service like as IP phone voice mailing service, E-mail notification, and web based Mailbox browsing service, etc. Basically, this service supports SIP VoIP signaling and IVR scenario managing tool for voice/video message recording/retrieval. Using VXML based IVR scenario editor software (AddPac Technology provided), user can make new IVR scenario and edit the pre-existed IVR scenario for new service addition, service modification, etc. IPNext600 supports memory (NAND Flash Memory, etc) Quota functions for each user¡¯s voice/video mailbox, etc and e-mail notification function via internet. On business travel, user can monitor IP phone or video phone¡¯s leaving message in office via internet e-mail check and using MS window media player software. Also, user can play voice/video message under various environments such as PSTN phone via VoIP gateway, E-mail, Web, Smart Messenger (AddPac) in addition to IP terminals (IP phone, IP video phone).
Outstanding Network Service Capability
IPNext600 is an integrated, feature-rich network equipment delivering routing, NAT/PAT, DHCP Server/Relay, Public IP sharing, VRRP and QoS. In today's mixed network of xDSL, Cable, FTTH, Metro Ethernet, Metro ATM, Leased line and dynamic IP environment, not only the ample network service features, but also high-end QoS(Quality of Service) and security features are requested..

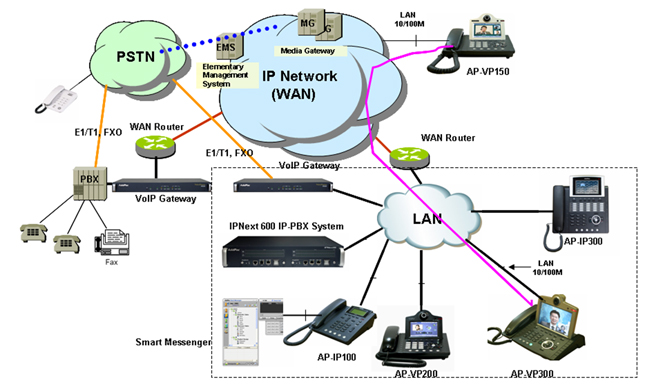

AddPac IP-PBX Total Solution
As ¡®All IP¡¯ multimedia telephony environment is becoming a reality with advanced next generation networking technology; there is now critical demand of optimal integration of the solutions. AddPac Technology offers a range of solution covering VoIP and Media gateway, audio/video terminal equipments, Independent audio/video MCU, IP audio/video broadcasting and VoD solution, Network DVR, Audio/video recording solution, Traffic controller, QoS equipment to meet customers¡¯ various communication requirements, so you can best optimize your network environment to maximize benefit from convergence of multimedia communication.
AddPac's various VoIP gateway series, multi service routers and comprehensive family of cutting-edge solutions have delivered high performance and stability to maximize customer satisfaction throughout the world. They provide high level of flexibility and scalability for each organization to find the solution that best fits their application needs and budget. With years of experience and industry-leading technology, AddPac provides IPNext600 with which customers can best optimize high performance, market strategy and budget for next-generation communication solution.
Dual CPU Boards (Hot-Swap) : High performance RISC Microprocessor
CPU Board Main Memory : NAND Flash Memory 512MByte, DDR 128MByte
CPU Board Network Interface : 10/100Mbps Fast Ethernet Interface¡¿2
CPU Board Console Interface : 1 Port RS-232C serial console interface
CPU Board Switch Button ; Blue Lamp LED button for Hot-Swap
