IPNext180 is a next-generation IP Keyphone System and a new IP telephony solution for all IP environments. IPNext180 inter-works with various IP terminals of AddPac (e.g. AP-VP300, AP-VP250, AP-VP200, AP-VP150, AP-VP120 IP Video Phone, and AP-IP300, AP-IP150, AP-IP100 IP Phone) and analog phones(low cost compared with IP terminals, also reused) to provide multimedia IP telephony services as well as the traditional voice-based PBX features. This product is based on the advanced embedded RISC that enables firmware upgrade, and can be equipped with various VoIP interfaces (FXS, FXO, etc) depending on module options. IPNext180 is suitable for small and medium size companies, and inter-works with the VoIP and video products of AddPac Technology to provide a variety of IP application services appropriate for your network. Also, IPNext180 supports H.323 VoIP inter-working as well as SIP protocol for outbound call.

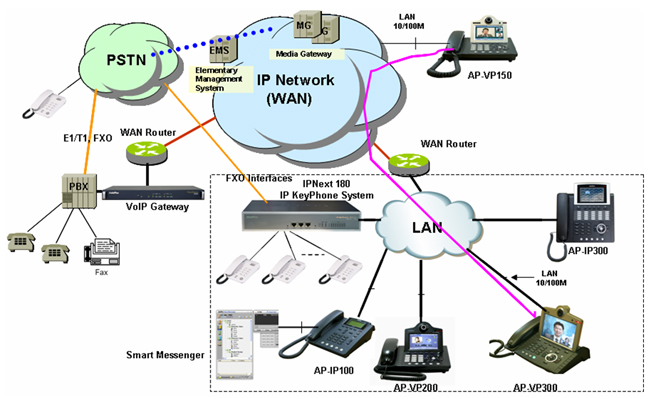

Table 1. Usage of IPNext180
Supported IP Terminals
Supports call scenarios such as basic call features, call transfer, color ring services, music on hold, voice mails, RTP Proxy, User Presence Service and IVR.
¡¤ AP-VP500 Video Phone ¡¤ AP-VP300 Video Phone ¡¤ AP-VP280 Video Phone ¡¤ AP-VP250 Video Phone ¡¤ AP-VP200 Video Phone ¡¤ AP-VP150 Video Phone ¡¤ AP-VP120 Video Phone
¡¤ AP-IP300 IP Phone ¡¤ AP-IP150 IP Phone ¡¤ AP-IP100 IP Phone
PSTN Line Interface
Digital E1/T1, FXO VoIP Interface for PSTN Line Termination
PSTN Analog Phone Interface
FXS VoIP Interface for PSTN analog phone interface
Next-Generation IP KeyPhone System

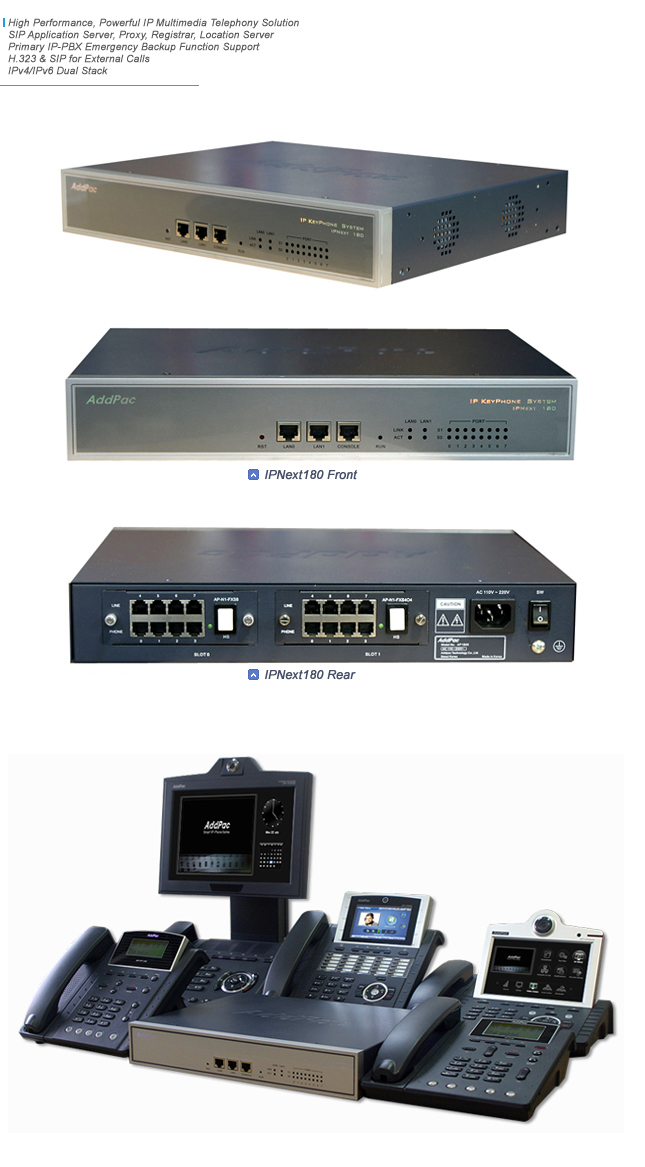

The front panel of IPNext180 IP Keyphone System supports LED displays of device status and has two(2) 10/100 Mbps Fast Ethernet ports, the RS-232C console port for Command Line Interface (CLI), Power Inlet and Power ON/OFF Switch. Its rear panel supports various VoIP interfaces such as FXO, FXS depending on module options. IPNext180 can support maximum 16 port VoIP interface ( 2slots x 8Port VoIP Module). The call scenarios supported by IPNext180 provide SIP-based basic calls, color ring services, music on hold, blind transfer, call pickup, group call pickup, consult calls, switching calls, consult transfer, call waiting, call waiting notification, call park, call pickup remote, and hunt group. This product is designed to provide application services that require much memory such as voice mail using internal memory.
RTP Proxy Service Features for Private IP and IPv6 Address
Since the enterprise network environments configured with a Call Manager like as IP keyphone system and IP terminals require larger number IP address, either IPv6 or a private IP address in the NAT environment must be supported to the enterprise networks due to the deficient resources of a public IP address. In such a private IP address environment, the RTP proxy feature is required for reliable multimedia communications between endpoint terminals. The RTP proxy feature of IPNext180 is used to make a communication between a private IP terminal and a public IP terminal among endpoint terminals such as IP phones, make a communication between a private IP terminal and a public IP terminal in the NAT environment, make a communication between private IP terminals, make audio/video broadcasting in private and public IP environments, and to enable audio/video conference calls in private and public IP environments. The RTP proxy feature can operate regardless of VoIP signaling protocols such as H.323 and SIP, and supports dual address systems such as IP version 4 and IP version 6 addresses.
Intelligent IVR Features
One of the most important IP telephony service features is either ARS or IVR. Different IVR features are required by regular companies, government offices, and call centers respectively. IPNext180 IP Keyphone System provides an IVR tool to meet your requirements. Also, this solution provides an IVR scenario editor to allow you to make and enable a desired call scenario.
User Presence Service for Unified Communication
For enterprise with small number of employee, IPNext180 IP keyphone system supports the user presence server function beside call manager function. But, in case of large enterprise, external User Presence Server should be used with IP-PBX due to performance issue independently. In order to support user presence features on real-time basis, such as user busy, on-line, user away, etc, user presence service function should be provided on IP telephony solution. User presence service function in a Call Manager gathers user information (on-line, busy, etc) of each IP terminals, and broadcasts user information to all or group IP terminals with speed-dial keys (built-in presence indication lamp) , AP-PT100 User Presence dedicate terminal, Smart Messenger Program at every second.
Built-in Network based Media Service
AddPac Technology¡¯s IPNext180 supports network based media service. Together used with IP terminals, Video Terminals, VoIP gateways, IPNext180 supports various media service like as Announcement, Ring Back Tone Service, and Music on Hold. IPNext180 supports the G.711PCM, G.729 voice codec basically. New coming and end enhanced voice and video codec (for example, MPEG4 video codec, etc) will be added to service profile list according to user requirement and service environment. IPNext180 provide the scheme to enroll personal or group media service file, for example, ring back tone service, to IPNext180. To enroll pre-exist file for media service, IPNext180 provides the conversion software ( PMA file, etc). file can be changed to AddPac PMA file format (G.711 based voice codec) to upload in IPNext180 using SMM.
Unified Messaging Service
IPNext180 supports network based unified messaging service like as IP phone voice mailing service, E-mail notification, and web based Mailbox browsing service, etc. Basically, this service supports SIP VoIP signaling and IVR scenario managing tool for voice/video message recording/retrieval. Using VXML based IVR scenario editor software (AddPac Technology provided), user can make new IVR scenario and edit the pre-existed IVR scenario for new service addition, service modification, etc. IPNext180 supports memory (NAND Flash Memory, etc) Quota functions for each user¡¯s voice/video mailbox, etc and e-mail notification function via internet. On business travel, user can monitor IP phone or video phone¡¯s leaving message in office via internet e-mail check and using MS window media player software. Also, user can play voice/video message under various environments such as PSTN phone via VoIP gateway, E-mail, Web, Smart Messenger (AddPac) in addition to IP terminals (IP phone, IP video phone).
Adapt to the Future Circumstances: Firmware upgradeable technology
Since the high-performance RISC CPU of IPNext180 is programmable, the service features of IPNext180 can continue to be improved, changed, or added. If you download an added or changed feature from the home page directly or set an automatic upgrade option whenever feature addition or change is done, you can use the latest features without further operations.
Reliable IP-PBX Solution with Outstanding Network Service Capability
IPNext180 is an integrated network device that supports routing services, NAT/PAT, DHCP Server/Relay, and Quality of Service (QoS). If you want to adapt to a variety of network environments such as Metro Ethernet, Metro ATM, dedicated lines, flexible IP environments, and high-speed private subscriber networks such as xDSL, cable networks, and FTTH, advanced QoS and security features in addition to multiple network services should be supported. In this regard, IPNext180 supports two 10/100 Mbps Fast Ethernet interfaces. Based on this feature, IPNext 180 supports advanced LAN-to-LAN routing and bridge services as well as various network and security services such as NAT/PAT. IPNext180 IP keyphone system is a reliable solution built by using excellent technologies.
AddPac IP-PBX Total Solution
AddPac Technology is not just a vendor of IP-PBX, but provides various product families appropriate for your network environment. To meet your needs, AddPac supports VoIP and media gateways, audio/video terminals, audio/video MCU, IP audio/video broadcast, VoD solutions, network DVR solution, audio/video recording solutions, and traffic controller QoS device solutions. In the future all IP-based multimedia telephony environment, various audio/video resources should be shared on an IP network; thus, the integration of the entire solution and that of solutions for each area are very important. AddPac IP-PBX is designed considering the integrated multimedia solution, and can meet your various needs.
The performance and reliability of AddPac VoIP gateway series and multimedia network devices have been recognized in global markets. IPNext180, which is a collection of experiences and know-how accumulated in the enterprise and service provider markets, would meet the needs of customers who ask for a next-generation IP-PBX solution.
High Performance RISC Microprocessor
Two(2) VoIP Module Slots for FXS, FXO, Digital E1
Two(2) Voice Interface Slots
8-Port FXS Voice Processing Module (8 x RJ11)
8-Port FXO Voice Processing Module (8 x RJ11)
4-Port FXO & 4-Port FXS Voice Processing Module(8 x RJ11)
1-Port VoIP Digital E1/T1 Interface Module(1 x RJ45)
Network Interface: 2-port 10/100 Mbps Fast Ethernet interface
