IPNext20W is a next-generation SOHO IP-PBX system for interworking with WiFi interface and various IP terminals of AddPac (AP-VP300 IP Video telephone, AP-IP300 IP Phone, AP-WP100 WiFi Phone, etc.) to provide multimedia IP telephony services as well as the traditional IP telephony. This product is built based on the high performance embedded RISC and suitable for the small and medium size companies. IPNext20W inter-works well with the various IP telephony products of AddPac to provide a variety of IP application service.
Table 1. IPNext20W Usage
Service Category
Service Explanation
Required Devices for Connection
IP-PBX
Call Scenario, Call Transfer Ring Tone, Music on Hold, User Presence, Voice Mail, IVR
AP-VP500 Video Phone AP-VP300 Video Phone AP-VP280 Video Phone AP-VP250 Video Phone AP-VP150 Video Phone AP-VP120 Video Phone AP-IP300 IP Phone AP-IP150 IP Phone AP-IP120 IP Phone AP-IP90 IP Phone AP-WP100 WiFi Phone Smart Messenger
WiFi Interface Feature
802.11b/g Interface, WiFi Access Point, NAT Accelerator
AP-WP100 WiFi Phone, WiFi Terminal (PC, etc)
Next-Generation SOHO IP-PBX

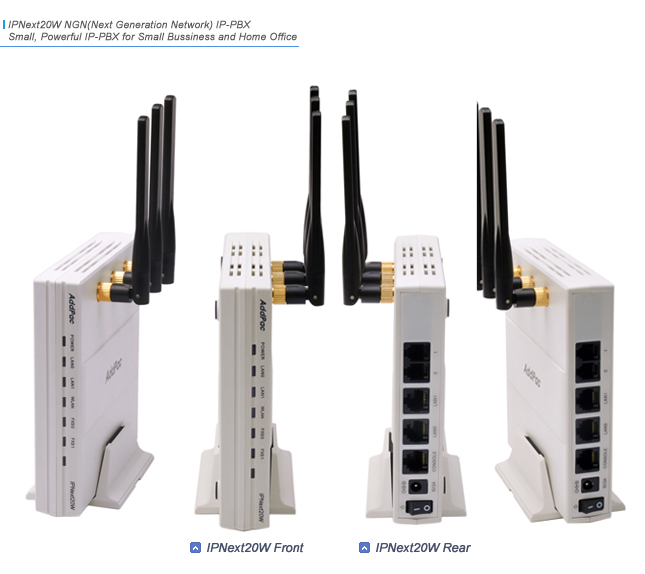

The front system panel of AddPac IPNext20W NGN (Next Generation Network) SOHO IP-PBX is built with device status LED displays. It has two 10/100 Mbps fast Ethernet ports, the RS-232C console port for Command Line Interface (CLI). Also, it supports WiFi interface. WiFi interface performs WiFi access point for accessing wireless LAN data. The call features supported by IPNext20W including; SIP-based basic calls, ring tone, music on hold, blind transfer, call pickup, group call pickup, consult transfer, consult call, call waiting, call waiting notification, call park, call pickup remote, and hunt group. In addition, it is designed to support SIP, H.323 concurrently. A high capacity Flash Memory is installed to increase the stability while providing many application services such as Voice Mail.
RTP Proxy Features
Enterprise network environment (made up of both SIP server and IP phone) requires several IP addresses so that either IP version6 or private IP address in the NAT environment requires for enterprise networks due to the public IP address depletion. The RTP proxy feature is required for reliable multimedia communications between End-to-End terminals in private address IP address. The RTP proxy server feature is used for communication between a private IP terminal and a public IP terminal in between edge terminals such as IP phones, communication between a private IP terminal and a public IP terminal in the NAT environment, communication between private IP terminals, provide audio/video broadcasting in private and public IP environments, and enable audio/video conference calls in private and public IP environments. The RTP proxy feature can be operated regardless of VoIP signaling protocols such as H.323, SIP and supports both IP Version4/IP Version6 dual address systems.
User Presence Feature for Unified Communication
As User Presence feature provides user presence indication information in Smart Messenger Program (MS Window based PC platform environment) or in IP terminal (next generation IP telephony solution). User presence feature operates based on IP-PBX system and AddPac protocol SSCP (Smart Service Control Protocol) in between IP terminal (or in Smart Messenger). User presence function displays user on line status, user away and user busy and performs broadcasting regard of user information to all terminals (terminal with presence capability) from the collected information in each End-Point terminals.
Intelligent IVR
One of the most important features of SOHO IP-PBX solution is; ARS and IVR. IVR requires different IVR features for each different field including public office, company and Call Center. To accommodate the needs of user, AddPac IP-PBX solution provides the IVR scenario Editor; thus, user can map out in accordance with call scenario and provides IVR support feature tools to manage IP Key Phone System.
Unified Messaging Service
AddPac IPNext20W IP PBX system supports the network based media service. It is a total solution for interworking with VoIP gateway, IP video phone, IP phone to perform an announcement, ring back tone, music on hold. You may change the ring back tone and music on hold file in accordance with the schedule.
Unified Messaging Service for Voice Mail
IPNext20W SOHO IP-PBX system network messaging feature supports voicemail by interworking with VoIP gateway, IP video phone and IP phone in next generation multimedia telephony solution. It supports the SIP VoIP signaling, voice mail, multimedia message, IVR scenario for retrieving. User may setup the IVR voicemail environment by using VXML based IVR scenario editor program. It supports the memory quota setup function for storing voicemail and supports voicemail notification through email. You may play the voicemail through PSTN, VoIP, email and AddPac messenger program.
Firmware upgradeable structure
IPNext20W¡¯s high performance RISC CUP is a programmable structure so that it is capable of improving functions, altering, and adding new features constantly. When additional features or alterations are needed, just directly download from the homepage or setting an auto upgrade option. You may use the latest features without much effort.
Reliable IP-PBX Solution
IPNext20W is an integrated network device that supports routing services, NAT/PAT, DHCP Server/Relay, and Quality of Service (QoS). In order to adapt into the variety of network environments such as xDSL, cable network, FTTH, Metro Ethernet, Metro ATM, dedicated lines, flexible IP environment, an advanced QoS (Quality of Service), security feature should be supported along with abundant network services. In this sense, IPNext20W supports two 10/100 Mbps Fast Ethernet interfaces. Based on this, IPNext20W supports advanced LAN-to-LAN routing and bridge services as well as various network and security services such as NAT/PAT. AddPac IPNext20W IP-PBX is a reliable solution built by using excellent technologies.
Audio/Video Privacy Protection
IPNext20W IP-PBX provides the network security of 'Standard & Extended IP Access List' for equipment access control and service security as well. It supports the security features enhanced by VPN, Secure RTP function as well as the data security and voice/video secure call functions for privacy protection.
AddPac IP Telephony Total Solution
AddPac technology is not just a vendor of SOHO IP-PBX BOX for the customer satisfaction, but it provides various products for appropriate network environment for VoIP, Media Gateway, audio/video terminals, audio/video MCU, IP audio/video broadcast, VoD solutions, network DVR solution, audio/video recording solutions, and traffic controller QoS device solutions. In all IP based multimedia telephony environment, various audio/video resources should be shared on an IP Network; thus, the integration of solutions for each area and entire solutions are very important. AddPac IP telephony solution is designed to consider the integrated multimedia solution so that it can satisfy the various needs of customer.
AddPac¡¯s various VoIP Gateway series and multimedia network devices have been fully recognized in terms of its performance and stability throughout the world. IPNext20W will provide full satisfactions for customers who seek for a next generation IP telephony solution with our accumulated experience in the enterprise market and service provider market.

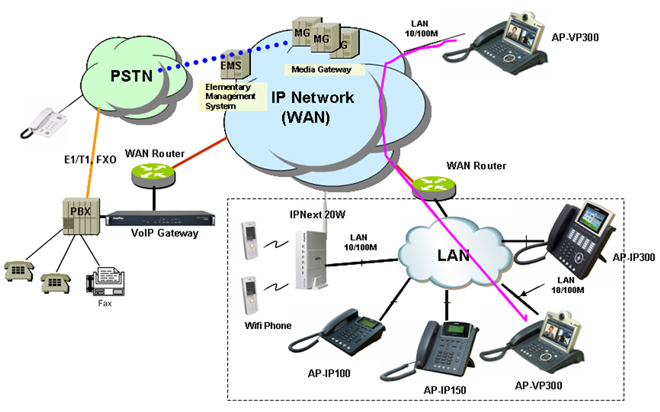

Network Diagram
Overall Features
High-Performance Microprocessor Structure
iFi Antenna Interface for WiFi Access Point
Network Interface: 10/100 Mbps fast Ethernet interface x2
User interface: 1port RS-232C serial console interface
Calling Hunting by Preference, Simultaneous, Random
Calling Hunting by Chained Hunting Group
Partition for Address Grading
Call Class for Call Access Control
Number Translation Rule for Inbound/Outbound Call
Centrex with Prefix Support
Multiple Shared Devices with One Number
Multiple Numbers on One Device
Individual Call Park within Park Number Pool
Group Call Park within a Group or Other Group
Call Pickup of Ringing Call of Same Group or Other
Group
Call Pickup of Parked Call
Call Transfer- Blind, Consult
Call Forwarding – Unconditional, Busy, No Answer,
Voice Mail
Call Waiting
Call Swapping
Call Hold
Advanced Features with AddPac IP phone, Video Phone, etc
Multiple Call Handling with Call Status and Calling
Line Number and Name
Plug and Play with Auto Discovery Function
Softkey Map Download and Control
Telephony and Service
&
Features
Voice Mail List View
Parked Call List View
Call Forwarding Setting
Recent Call List View
Calling Number and Name Identification
Individual Call Park within a Group or Other Group
by Softkey
Group Call Park within a Group or Other Group by
Softkey
Call Pickup of Ringing Call of Same Group or Other
Group by Softkey
Call Pickup of Parked Call by Softkey
Call Transfer – Blind, Consult by Softkey
Call Waiting Indication
Call Swapping by Softkey
Call Hold by Softkey
Conference Control
IP-PBX Signaling Protocols
SIP Application Server, Proxy, Registrar
and Location Server(RFC3261)
Multiple ITSP Trunk with SIP & H.323
Account Support
-IP UA Client Role for Registering to ITSP SIP Server
- H.323 Gatekeeper Client Role for
Registering to ITSP H.323 Gatekeeper Server
IVR
(Interactive Voice Response)
& Auto Attendant
Default Auto Attendant Support
IVR Function
Provides with GUI-based Smart IVR Scenario
Editor
Upload/Download Scenario by Smart IVR
Scenario Editor
Supports Multiple Concurrent Scenarios
Support Recordable IVR Prompts
Voice Mail
Support Voice Mail with IVR
Access from Remote Site via Trunk Support
Voice Mail Notification Support
Conference
G.711 u-law, G.711 a-law, G.726 Internal
3-Party Audio Conference Support
Ad-Hoc Conference
Dial-Out Conference
Meet-me Conference
Multiple External MCU Support (Video, Audio,
etc) : AP-MC1000, AP-MC3000
Conference Chair and Participants Management
Music & Announcement
Music on Hold
Replaceable Announcements
Dialing Music/Tone Service
IP-PBX User & DeviceManagement
LDAP(Lightweight Directory Access
Protocol) Support
- Support Hierarchical Organization
System Performance Analysis for Process,
CPU, Connection I/F
Configuration Backup & Restore for APOS
Managements
Debugging, System Auditing, and
Diagnostics Support
System Booting and Auto-rebooting with
Watchdog Feature
System Managements with Data Logging
IP Traffic Statistics with Accounting
Other Scalability Features
DHCP Server & Relay Functions
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging (IEEE Standard)
Function
¡æ Spanning Tree Bridging Protocol Support
¡æ Remote Bridging Support
¡æ Concurrent Routing and Bridging Support
