AP-IP150 IP phone is designed to provide enhanced IP telephony functionality to meet the wide range of business user requirements. This cost effective IP phone optimally delivers rich featured voice telephony service on ordinary internet infrastructure as well as AddPac IP-PBX environment on local LAN as a fully featured IP extension for the complete AddPac VoIP solution.
This new and versatile IP telephone brings the integrated solution for the IP based voice communication and IP audio broadcasting feature to maximize business potentials. It provides the advanced IP telephony device features such as large graphic LCD size, wide variety of feature keys, customizable hot-keys, two(2) ethernet ports, PoE(Power over Ethernet), the latest QoS, public IP sharing. It supports not only the major VoIP signaling protocols concurrently such as SIP, H.323 but also G.711, G.726, G.729, G.723.1 voice codec, stereo audio in/out interfaces for external headset, internal speaker and MIC for high quality Speaker Phone, etc
New Paradigm for IP Telephony : Telephony + Broadcasting
AP-IP150 IP telephone combines AddPac's field proven VoIP technology and IP audio broadcasting technology. AP-IP150 is market-ready IP telephone which provides a full suit of remarkable functionality compared to other typical IP telephones. Apart from telephony service, it delivers IP voice broadcasting service supporting external MIC/Line-in, Line-out interface for various input/output devices such as headset, Amp or speaker. In addition, it provides high level information display with large size LCD mounted. Since AP-IP150 supports diverse voice codecs according to bandwidth environment, it can be deployed anywhere on the internet, ensuring optimal voice quality by leveraging the latest QoS technology. Furthermore, installed along with IPNext150, IPNext200, and IPNext500 on comprehensive IP-PBX system of AddPac Technology, it not only improves operation offering an wide variety of features such as Music on Hold, Coloring service, Call Transfer but also provides the easy-to-use, intelligent IP telephony service enhanced by MS window based Smart Messenger.
Adapt to the Future Environment : Firmware Upgradeable Technology
Designed on programmable high performance RISC Integrated DSP Technology, AP-IP150 is capable of adopting new capabilities and improvement by downloading firmware from website or with its auto-upgrade option as the customers' needs grow. Moreover, operators can download the latest protocol or service improvements as well as update firmware by checking the version and activating the auto-upgrade while AddPac's IP-PBX power on/booting sequence.
Compelling Supplementary Services: Extending Benefit of IP Telephony
AP-IP150 delivers not only fully featured IP telephony services, but also various supplementary services to users. It features advanced phone directory, voice mail, CID(Caller ID), call transfer on site or at a remote site. One of its greatest services is IP broadcasting feature which enables AP-IP150 to offer voice broadcasting service, incorporated with in-house broadcasting system.
IP telephony with Outstanding Network Service Capability
Not only IP telephony, AP-IP150 is an integrated, feature-rich network equipment delivering routing, NAT/PAT, DHCP Server/Relay, Public IP sharing and QoS. In today's mixed network of xDSL, Cable, FTTH, Metro Ethernet, Metro ATM, Leased line and dynamic IP environment, not only the ample network service features, but also high-end QoS (Quality of Service) and security features are requested. Based on two (2) 10/100Mbps Fast Ethernet ports, AP-IP150 offers integrated network and security service of LAN-to-LAN routing, bridge and NAT/PAT. Moreover, AP-IP150 supports H.323, SIP dual VoIP signaling protocols concurrently. So the customers easily migrate to different service providers' networks utilizing different VoIP signaling protocols.
Privacy and Encryption Features
AP-IP150 brings the network security and service security as well. With the built-in CID (Caller ID Detection) feature, user is able to know who is calling before he answers and block the incoming call.
AddPac's various VoIP gateway series, multi-service routers, video products and comprehensive family of cutting-edge solutions have delivered high performance and stability to maximize customer satisfaction throughout the world. They provide high level of flexibility and scalability for each organization to find the solution that best fits their application needs and budget. With years of experience and industry-leading technology, AddPac provides AP-IP150 with which customers can best optimize high performance, market strategy and budget for next-generation communication solution.

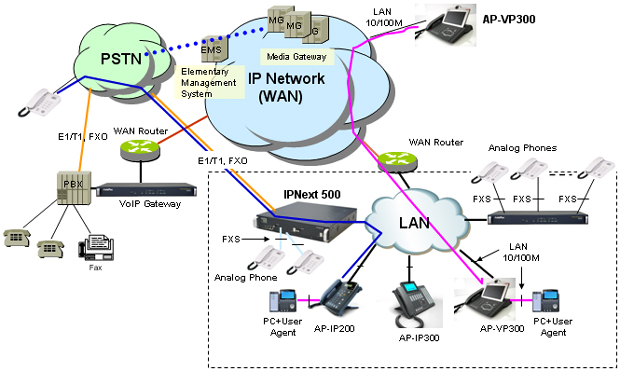

Network Diagram
Overall Features
High Quality Speaker Phone Sound (Internal Speaker and
MIC)
Provide various feature keys
Voice Mail feature when deployed on AddPac IP-PBX system
Provide optimal voice quality with excellent voice
delivery through enhanced QoS
System Performance Analysis for Process, CPU, Connection I/F
Configuration Backup & Restore for APOS Managements
Debugging, System Auditing, and Diagnostics Support
System Booting and Auto-rebooting with Watchdog Feature
System Managements with Data Logging
IP Traffic Statistics with Accounting
Other Scalability Features
DHCP Server & Relay Functions
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging (IEEE Standard) Function
¡æ Spanning Tree Bridging Protocol Support
¡æ Remote Bridging Support
¡æ Concurrent Routing and Bridging Support
Cisco Style Command Line Interface(CLI) via Telnet
