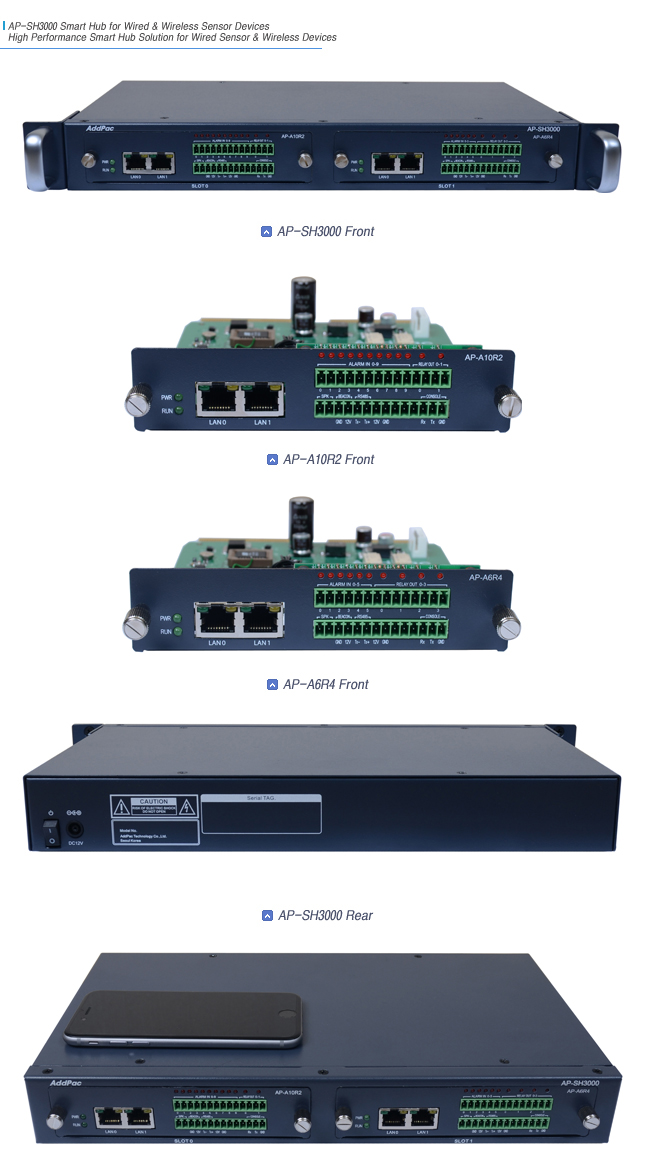

AP-SH3000 enterprise smart hub is an IP connectivity device for wired sensor and ZigBee/ZWave sensor devices. This smart sub system supports two(2) hardware module slots for various application.It uses LAN interconnection feature, providing an excellent scalability by interworking with various wired sensor devices. AP-SH3000 enterprise smart hub and AP-SH3000 application software for smart phone/tab/pad will help to connect to various wired sensor devices like as IR sensor, motion detection sensor, and other devices. This product support module based various sensor interface cards like as AP-A10R2, AP-A6R4, AP-ZBW100, AP-ZW100, AP-ZW104, etc.

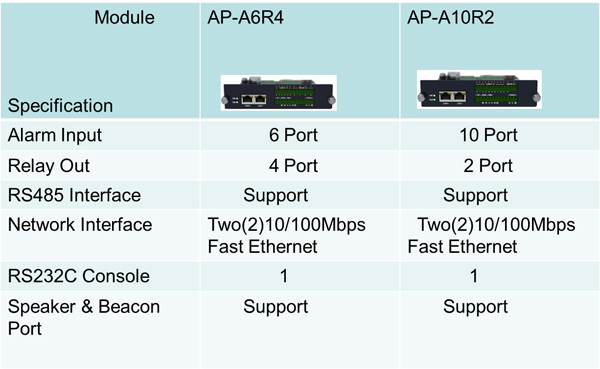

AP-A10R2 wired sensor interface card supports ten(10) alarm input port, two(2) relay output ports. In addition to alarm and relay output port, this AP-A10R2 wired sensor interface card supports RS485 interface port, SPK, and BEACON port. AP-A6R4 wired sensor interface card supports six(6) alarm input port, four(4) relay output ports, RS485 interface port, SPK, and BEACON port.

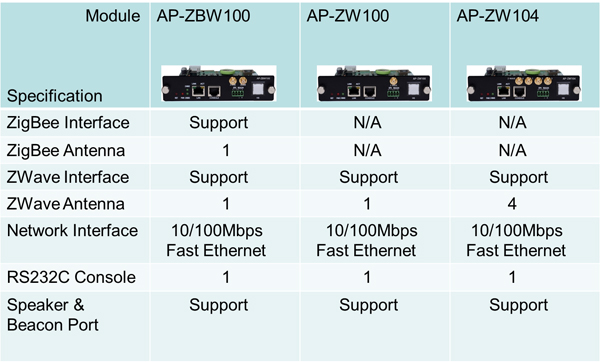

AP-ZBW100 sensor interface card supports the dual sensor ZigBee/ZWave interface with external antenna port. AP-ZW100 supports only ZWave sensor interface with single antenna port. AP-ZW104 sensor interface card supports the ZWave sensor interface with four(4) antenna ports. Long and high gain multi-antenna scheme extends the coverage of ZWave sensor device and are very applicable in small rooms and underground room, etc.
Total Solution for Smart Sensor Device Application
AddPac enterprise smart sensor IoT equipment solution is to control wired sensor devices and ZigBee/ZWave based wireless sensor devices. AddPac enterprise smart sensor IoT equipment solution consists of enterprise smart hub (AP-SH3000), sensor network controller(AP-SNC2000) with application specific management software for large-scale smart hub control, and smart pad/tab and smart phone appl, to provide an excellent scalability. Additionally, CCTV solution, sip video door phones, video phones for security guard, access control server with call manager function, etc, are AddPac products for security, safety, and cost saving enterprise solution together with IoT solution.
Firmware Upgradeable Structure
AP-SH3000 RISC CPU is programmable structure so that user may use the latest features without much effort by simply setting an auto upgrade option or download from the homepage.
Smart Web Manager Function
AP-SH3000 is embedded with smart web manager for easy control of smart hub. User may setup/manage smart hub through PC, smart phone, and tablet device.
AddPac various VoIP, Video and multimedia products are well recognized in terms of performance and stability throughout the world. With our accumulated experience in enterprise market and communication market, AP-SH3000 will satisfy the needs of customer along with AddPac CCTV solution, IP paging soution, IP door access control solution, IoT and smart senor application solution.
Two(2) Module Slots for Wired & Wireless Sensor Module
