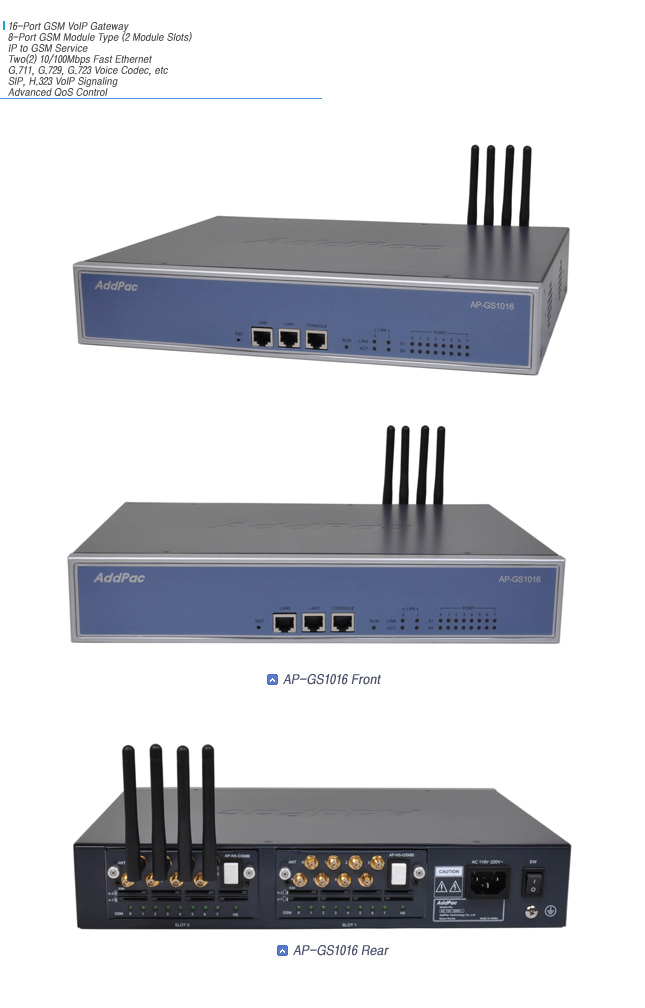

VoiceFinder AP-GS1016 16-Port GSM VoIP gateway provides high-performance IP to GSM gateway solution including IP-routing services for small enterprise, and other public offices. This product uses the state-of-art technology voice compressed algorithm and unique QoS algorithm of AddPac to maintain the maximum voice quality under fast internet line and slow internet line as well. This product is designed based on high performance RISC CPU + DSP structure; supports upgraded speed, the best quality product, offers various user-friendly functions, manufactured at low cost and this product gives high performance for its price.
GSM VoIP Gateway Service Support
AddPac AP-GS1016 is a device that can support GSM gateway service (Internet?GSM). It also supports SIP, H.323 dual VoIP signaling protocol, various voice codec support(G.711, G.726, G.729, G723.1), two(2) module slots for 8-Port GSM module, two(2) fast ethernet ports, 1-port RS232C console and state-of-art technologies and services.
Powerful networking protocols
VoiceFinder AP-GS1016 GSM Gateway supports two(2) 10/100 Base-T fast Ethernet Interface ports and provides stabilized leased line environment, ADSL environment, cable modem environment, fixed IP Address, supports all flow IP environment so that it can be selected in accordance with user environments.
Adapt to the Future Environment: Firmware Upgradeable Technology
Designed on programmable high performance RISC Integrated DSP Technology, AP-GS1016 is capable of adopting new capabilities and improvement by downloading firmware from website or with its auto-upgrade option as the customers' needs grow. Moreover, operators can download the latest protocol or service improvements as well as update firmware by checking the version and activating the auto-upgrade via AP-NMS (Network Management System) of AddPac Technologies.
AddPac IP Telephony Total Solution
AddPac technology is not just a vendor of GSM Gateway Box for the customer satisfaction, but it provides various products for appropriate network environment such as VoIP, Media Gateway, audio/video terminals, audio/video MCU, IP audio/video broadcast, VoD solutions, network DVR solution, audio/video recording solutions, and traffic controller QoS device solutions. In the future, All IP based multimedia telephony environment, various audio/video resources should be shared on an IP Network; thus, the integration of solutions for each area and entire solutions are considered as top priority. AddPac IP telephony solution is designed to consider the integrated multimedia solution so that it can satisfy the various needs of customer.
AddPac¡¯s various VoIP gateway series and multimedia network devices have been fully recognized in terms of its performances and stability throughout the world. AP-GS1016, with our accumulated experiences and know-how in the enterprise and service provider markets, will provide full satisfactions for customers who ask for a next-generation GSM gateway.
System Performance Analysis for Process, CPU,
Connection I/F
Configuration Backup & Restore for APOS
Managements
Debugging, System Auditing, and Diagnostics
Support
System Booting and Auto-rebooting with Watchdog
Feature
System Managements with Data Logging
IP Traffic Statistics with Accounting
Other Scalability Features
DHCP Server & Relay Functions
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging (IEEE Standard) Function
- Spanning Tree Bridging Protocol Support
- Remote Bridging Support
- Concurrent Routing and Bridging Support
Presentation
