VoiceFinder AP-GK2000 is embedded GateKeeper exclusive system offering called party information for call routing and terminal management to H.323 Client system such as VoIP gateways and various VoIP end points on enterprise VoIP network.
VoiceFinder AP-GK2000 Gatekeeper system is focused on enterprise customers offering basic function of call routing and various additional functions such as primary and secondary Gatekeeper configuration for fault tolerance. AP-GK2000 GateKeeper system can be the ultimate solution for customers requesting expensive GateKeepers for limited functions of call routing and dynamic IP supports due to reliability issues.
AP-GK2000 is aim to provide reliable VoIP telephony service even without network managers by adopting embedded OS based exclusive system, unlike commonly used OS platform. It focuses on GateKeeper functionality realizing the best price vs. performance ratio. Also, it offers secure service along with H.245 crypto-token based security function. Moreover, AP-GK2000 offers web-based management tools and end-point operation monitoring, so the users can form effective VoIP communication environment with less efforts.
AP-GK2000 is the ultimate solution for customers considering Gatekeepers but reluctant due to its expenses and management issues.
All embedded System
Primary GK & secondary GK setting for fault-tolerant
Security function with H.235 crypto-token
RAS port change function
Digit map management with technical prefix
TTL assignment function
Web based control and management

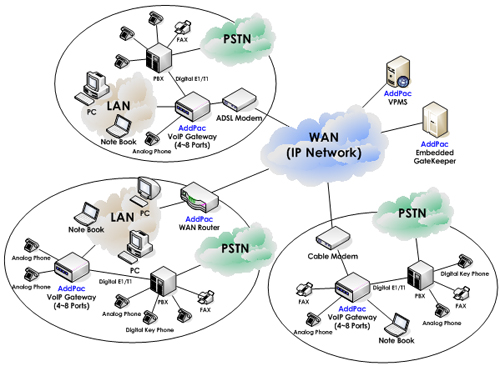

Supports various VoIP endpoints including VoIP Gateway
Supports H.323 Ver.3

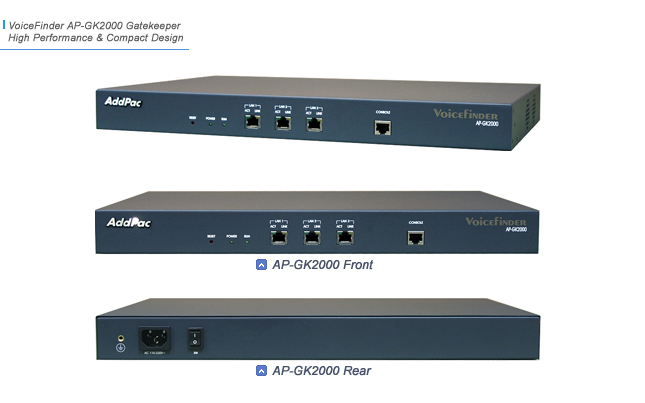

19" Rack mountable type (1U)
64bit RISC CPU for high performance Data process
Supports industry standard VoIP protocol
Standard SNMP for device management
Remote SW upgrade
Easy user interface
Superior diagnosis function
Supports various management
Effective IP management such as dynamic IP address
Supports various traffic management
Reliable power supply
LEDs for easy monitoring
Microprocessor
64bit RISC Microprocessor
Memory
Flash Memory
8Mbyte
SDRAM Memory
128MB High-speed SDRAM
Boot Memory
512Kbyte
LAN Port
Fixed 3-Ports 10/100Mbps Fast Ethernet Interface (RJ45)
Console Port
Fixed 1-Port RS-232C Interface
Operating Temperature
0¡ÆC ~ 50¡ÆC (32¡Æ ~ 122¡ÆF)
Storage Temperature
-40¡ÆC ~ +85¡ÆC (-40¡Æ ~ +185¡ÆF)
Humidity
5% ~ 95%
Power
VAC 110~220V, 50/60Hz, 25Watt
Routing Protocol
Static and Default Routing
RIP v1/2
IEEE 802.1Q VLAN Routing
WAN Protocol
Point-to-Point Protocol (PPPoE for ADSL
PPTP support for secure communication
IEEE 802.3 Ethernet
Gatekeeper Function
H.323 VoIP Gatekeeper Function
-Call Routing
-Dynamic IP Address support
Digit map management with technical prefix
Primary GK & secondary GK setting for fault-tolerant
Security Function
IP Packet Filtering
Supports IP Access list
User Authentication function (CHAP & PAP)
Enable/ disable specific protocols
Automatic disconnection of Telnet/Console sessions
Multi-level User Account Management
Network Management Function
Supports Standard SNMP Agent (MIB v1/2)
Web-based management
Remote management via Console, Rlogin, Telnet
Additional Features
ITU-T H.323 v3 VoIP protocol including ITU-T H.235 Security
function
Traffic Management function
DHCP Server and Relay function
IP Accounting function
Supports CLI (Command Line Interface)
Supports NTP (Network Time Protocol)
System monitoring and debugging function
Back up of Router configuration information (FTP, TFTP)
