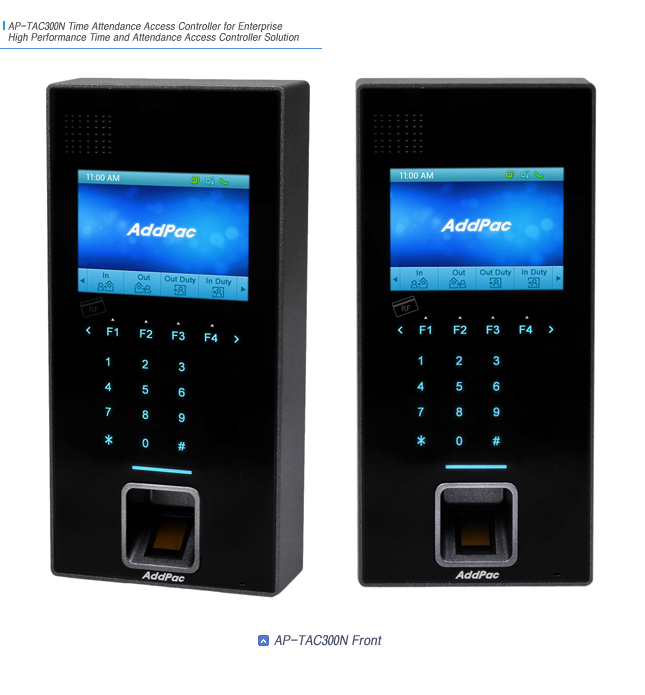

AP-TAC300N enterprise time and attendance access controller is an employee access control unit through internet connection with built-in time & attendance function. It uses fingerprint recognition and RF card technology, providing an excellent scalability by interworking with each other based master-slave mode. AP-TAC300N provides powerful enterprise IP based time and attendance access control solution.

Standalone Time and Attendance Service

AP-TAC300N time and attendance access controller is a device to open and close the door after verifying the identity of a user. It is embedded with alarm, relay output port, and RS485 interface function to control the door by interworking with automatic door. Also, it offers RF card, fingerprint verification technology for easier access of employees. AP-TAC300N supports both time and attendance access controller management and application service like as time and attendance. AP-TAC300N access controller management function provides user management function, group management function, setup management function, RF card register and manages, fingerprint verification register and manage, and access log function and allow to extend the application service such as attendance/absence. Login control, daily attendance rules, monthly attendance rules, business trip and vacation, report for admin are major functions for AP-TAC300N time and attendance service.

Firmware Upgradeable Structure

AP-TAC300N RISC CPU and DSP are all programmable structure so that user may use the latest features without much effort by simply setting an auto upgrade option or download from the homepage.

Smart Web Manager Function

AP-TAC300N is embedded with smart web manager for easy system control. User may setup/manage the system through PC, smart phone, and tablet device.

Door Access Control Web Manager

AP-TAC300N provides door access control web manager for door access control. Door access control web manager of AP-TAC300N supports user management function, group management function, setup management function, RF card register and manages, fingerprint verification register and manage, and access log function and allow to extend the application service such as attendance/absence.

Time and Attendance Web Manager

Also, beside door access control web manager, AP-TAC300N provides web manager for time and attendance application service. Time and attendance web manager of AP-TAC300N supports login control, daily attendance rules, monthly attendance rules, business trip and vacation, report for administration.

AddPac door access control products are well recognized in terms of performance and stability throughout the world. With our accumulated experience in enterprise market and communication market, AP-TAC300N will satisfy the needs of customer along with AddPac Door Access solution.

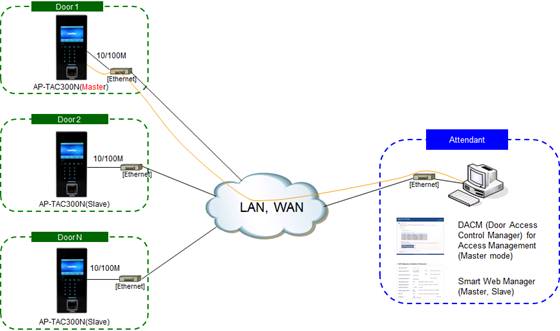

Network Diagram

Overall Features
	Fingerprint recognition based time and attendance solution
	Embedded web server
	Door access control web manager support
	Time and attendance web manager support
	Support 3.5inch TFT color LCD
	3 x 4 Key, Function Key (touch based)
	High Performance Programmable DSP
	Master-slave mode based multiple terminal support
	Flash memory 512Mbyte, SDRAM 128Mbyte
	Support speaker
	Support access control with Fingerprint recognition and RF card
	Network interface: 10/100Mbps fast Ethernet interface x 1
	Support RS232/RS422/RS485 interface, alarm input, relay output port
	Support PoE
