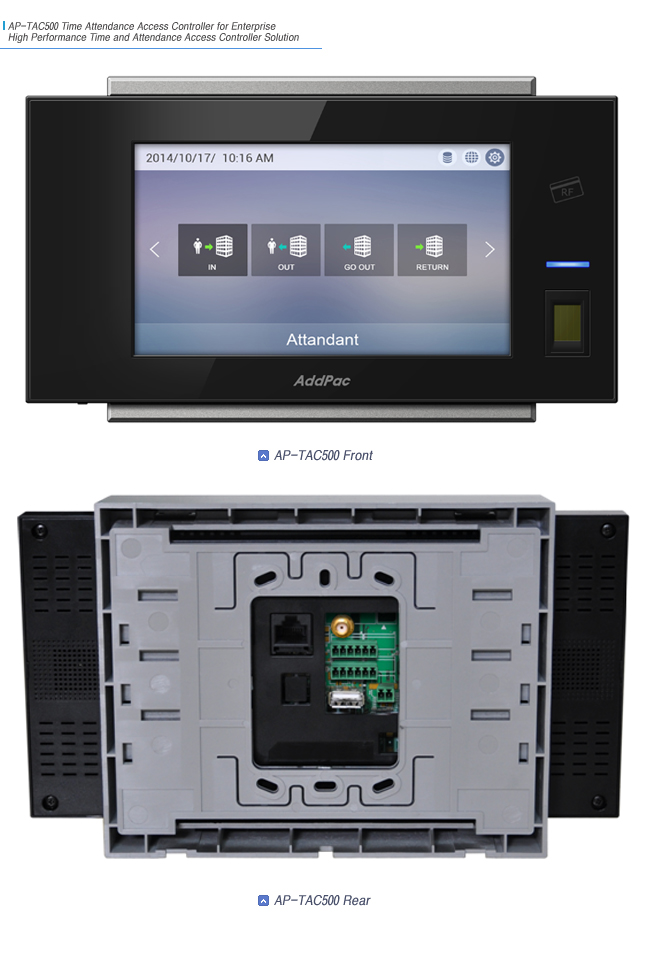

AP-TAC500 enterprise time and attendance access controller is an employee access control unit through internet connection with built-in time & attendance function. It uses fingerprint recognition and RF card technology, providing an excellent scalability by interworking with each other based master-slave mode. AP-TAC500 provides powerful enterprise IP based time and attendance access control solution.
Standalone Time and Attendance Service
AP-TAC500 time and attendance access controller is a device to open and close the door after verifying the identity of a user. It is embedded with alarm, relay output port, and RS485 interface function to control the door by interworking with automatic door. Also, it offers RF card, fingerprint verification technology for easier access of employees. AP-TAC500 supports both time and attendance access controller management and application service like as time & attendance. AP-TAC500 access controller management function provides user management function, group management function, setup management function, RF card register and manages, fingerprint verification register and manage, and access log function and allow to extend the application service such as attendance/absence. Login control, daily attendance rules, monthly attendance rules, business trip and vacation, report for admin are major function for AP-TAC500 time & attendance service.
Firmware Upgradeable Structure
AP-TAC500 RISC CPU and DSP are all programmable structure so that user may use the latest features without much effort by simply setting an auto upgrade option or download from the homepage.
Smart Web Manager Function
AP-TAC500 is embedded with smart web manager for easy system control. User may setup/manage the system through PC, smart phone, and tablet device.
Door Access Control Web Manager
AP-TAC500 provides door access control web manager for door access control. Door access control web manager of AP-TAC500 supports user management function, group management function, setup management function, RF card register and manages, fingerprint verification register and manage, and access log function and allow to extend the application service such as attendance/absence.
Time and Attendance Web Manager
Also, beside door access control web manager, AP-TAC500 provides web manager for time and attendance application service. Time & attendance web manger of AP-TAC500 supports login control, daily attendance rules, monthly attendance rules, business trip and vacation, report for administration.
AddPac door access control products are well recognized in terms of performance and stability throughout the world. With our accumulated experience in enterprise market and communication market, AP-TAC500 will satisfy the needs of customer along with AddPac Door Access solution.

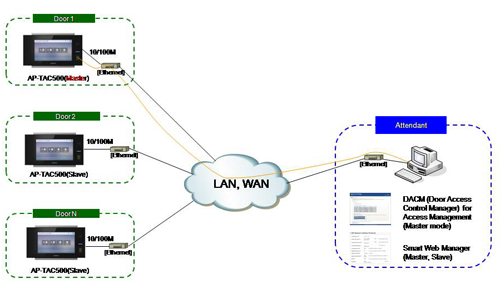

Network Diagram
Overall Features
Fingerprint recognition based time and
attendance solution
Embedded web server
Door access control web manager support
Time and attendance web manager support
Support 7 inch TFT color LCD, 800x480 Video
Resolution, Touch Screen
High Performance Programmable DSP
Master-slave mode based multiple terminal
support
Flash memory 512Mbyte, SDRAM 128Mbyte
Support speaker
Support access control with Fingerprint
recognition and RF card
Network interface: 10/100Mbps fast Ethernet
interface x 1, Optional USB based WiFi Interface
Support RS232/RS422/RS485 interface, alarm
input, relay output port
Support PoE
CPU
High Performance RISC+DSP H/W Architecture
Memory
Flash Memory
512Mbyte
SDRAM Memory
128Mbyte DDR
Network Interface Module
LAN0 Port
One(1) 10/100Mbps Fast Ethernet
LAN1 Port
USB Interface for External Wifi USB Module (Option)
Fingerprint Recognition
Capacitive Fingerprint Recognition Sensor
Sensor Type : Capacitive
Resolution(dpi) : 508
Sensing Area(mm) : 12.8 x18.0
Image Size(pixel) : 256 x 360
CPU : 400MHz DSP
Flash Memory : 4MB
ERR : < 0.1%
Enrollment Time : 800msec
1:1 Verification Time : 800msec
1:1000 Identification Time : 970msec
Template Size : 256~384bytes (configurable, 384bytes default)
Template Capacity : 9,000
Encryption : 256bit AES
Control & Display
5 Inch TFT Color LCD,
800x480 Video Resolution, Touch Screen
One-Chip Solution for amorphous TFT-LCD
Hardware On-Screen Display (OSD)
Support resolution up to 480xRGBx800
Up to 24-bit RGB888 Digital Interface
Resize Function ( x 1/16, x8)
BT.60/BT.66 Digital YCbCr 4:2:2(8-/16-bit) Interface
RF Card Interface
RF Card Tags
ISO14443A/B all bit rates : 106/212/424/848kbps,
MiFare Series, etc
Speaker
Internal Speaker
Impedance : 8 +-15%ohm at 1kHz, 1.0 Vrms
Sound Pressure : 90 +- 3dB at 0.1W/10 CM
at 800Hz, 1.0kHz, 1.2kHz, 1.5kHz
Resonance Level : 550Hz +- 20%Hz at Fo Hz, 1.0Vrms
Frequency Range : Fo Hz ~20kHz
Input Power : Normal : 1.0 W, Max : 2.0W
Audio Amplifier
Internal Audio AMP.
1-W BTL Output(5V, 0.11 % THD+N)
Uncompensated Gains of 2 to 20 (BTL Mode)
Thermal and Shot-circuit Protection
High Supply Ripple Rejection Ratio
I/O Interface
I/O Port
RS232/RS422/RS485 Interface : 2-Port
Alarm Input : 2 Port
Relay Out : 2 Port
Power Requirement
External Power VAC 110~220 VAC, 50/60Hz, 12V 1A
PoE (Power over Ethernet)
IEEE802.3af compliant
Input voltage range 36V to 57V
Short-circuit Protection
