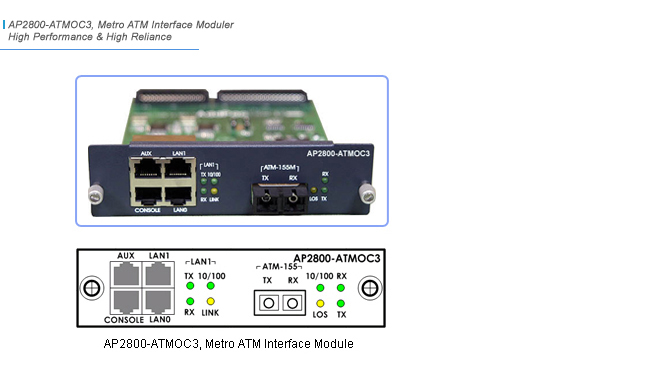

AP2800-ATMOC3 Metro ATM Interface module offers various services such as L3 routing, VoIP Gateway, audio/ video service by installed at VoiceFinder AP2850 & AP2830 Multiservice Routers. It realizes both cost effective communication and ATM QoS with Virtual Channel access.
An ultimate solution realizing the merits of both ATM and Metro Ethernet
'Access' and 'Edge' applications are most active field in ATM. AP2800-ATMOC3 module offers Broadband ATM network access solution at the subscriber node. AP2800-ATMOC3 module is a powerful solution offering ATM QoS by supporting Virtual Channel access. ATM is an advanced technology to ensure QoS such as Cell Loss, Cell Delay Variance, and Maximum Cell Transfer Delay. That is, it keeps the virtual channel when there is no data transmission to ensure QoS.
Modularized architecture supporting various integrated IP applications
VoiceFinder AP2850 and AP2830 Multi-service Routers with AP2800-ATMOC3 module can offer not only 155Mbps Metro ATM access function and L3 routing service, but also additional various multimedia IP application services such as VoIP Gateway, IP audio broadcasting, IP video and etc. Now, AP2850 and AP2830 Multi-service Router can offer integrated service of ATM access, Layer 3 routing and various IP applications. Especially, AP2800-ATMOC3 module realizes reliable network access with PVC access function along with enhanced QoS realizing superior quality of voice and video service without affected by the bandwidth change.
Supports ATM OC3 Metro
L2, L3 service
Ethernet Interface for LAN access
Combined with modularized
high performance, multi-service router
Supports ATM PVC
(Permanent Virtual Circuits)
RFC1483 based Ethernet
Bridging over ATM service
TM4.0 based ATM class,
CBR, RT-VBR, NRT-VBR, UBR service
Flexible network system
management with standard SNMP Agent system
Supports various IP
application with 4 Voice/Audio Interface Slots
