AddPac AP2300 Intelligent Ethernet Switch is a next-generation Layer 2 Switch offering high network availability, enhanced QoS (Quality of Service) and adoptability. It can be either deployed at the large scale network environment as a powerful workgroup level networking solution by interoperating with the core switch, or a backbone switch at the small scale network. Especially, it complies with IEEE802.3af PoE (Power over Ethernet) standard supplying powers to IP phones and wireless LAN AP(access point) over Ethernet cable.

Business Networks adapt to changing network requirements by adding new equipments such as IP phones and wireless access points. However, it requires, in return, in-depth consideration on the edge network, not only the core to spare additional investment due to the insufficient capacity of edge level in spite of the ample backbone network resources.

PoE for next-generation IP appliances

AP2300 Intelligent Ethernet Switch features standard PoE (Power over Ethernet) capability. It provides 48V DC power to IP phones and wireless LAN access points using external AP-PW48 power module. AP-PW48 power module supplies 15W power over standard Category 5 unshielded twisted-pair (UTP) cable to the edge applications such as IP phones and wireless access points without wall power. When AP-PW48 power module is interfacing with UPS (Uninterruptible Power Supply), the users enjoy continuous IP telephony service during the power failure.

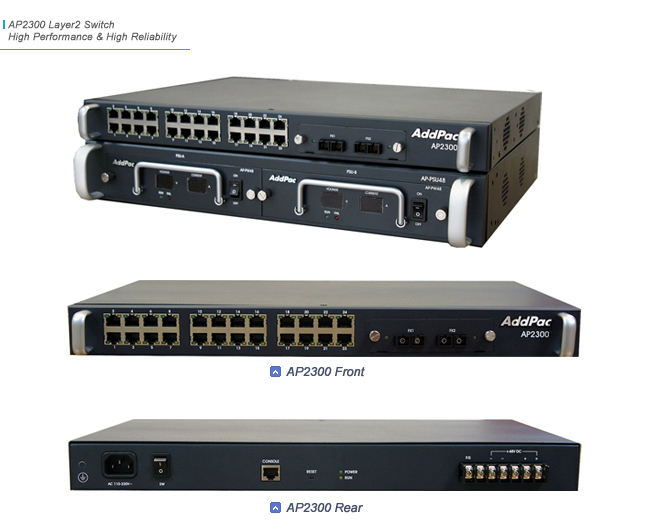

AP2300 Intelligent Ethernet Switch comes with the following components.
· AP2300 : 24-port 10/100Mbps Fast Ethernet interface and 2-port GBIC (Gigabit Interface Converter) or 100Base-FX uplink module offering integrated In-line power supply.
· AP-PW48 : DC power supply module. Each port of AP2300 is provided with 15W, 48V DC power.

Ethernet switch with Unprecedented QoS and Powerful Security

AP2300 prioritizes time-sensitive traffic such as IP telephony and video and offers bandwidth control to all the related interfaces. Especially, it offers automatic QoS feature which realizes optimum traffic queuing by monitoring IP phones, V2oIP Gateway and IP videophones to ensure maximum performance of these equipment. Blocking unauthorized users and delicately managing permitted users are the security features of AP2300 LAN switch.

Easy management and scalability

Moreover, AP2300 Intelligent Ethernet Switch is equipped with comprehensive management tools of Console and Java based Smart Manager. Its built-in Java based Smart Manager realizes easy and quick deployment of equipment without relying on complicated CLI interface from anywhere by accessing Internet. Last but not least, AP2300's dual 100Base-FX Ethernet interfaces support uplink stacking, thus realizes flexible port augmentation. Also, the AP2300 wiring closet is easily interoperated with the core switch with GBIC module offering high-speed connectivity via 2-port 1000Base-X.

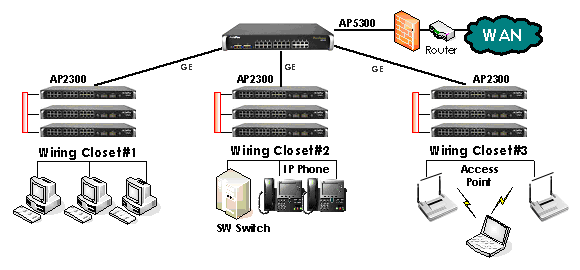

Network Diagram

	Ethernet Interface: 24-port 10/100Base-TX
	Uplink Interface: 2-port 100Base-FX or 1000Base-X GBIC
	High Performance RISC Processor
	Supports IEEE802.3af PoE (Power over Ethernet)
	Automatic QoS feature for optimized streaming packet service
	Java based management and setting
	Load balancing with packing analysis
	Link Aggregation to prevent service termination due to a single line error
	19" Rack Mountable system
