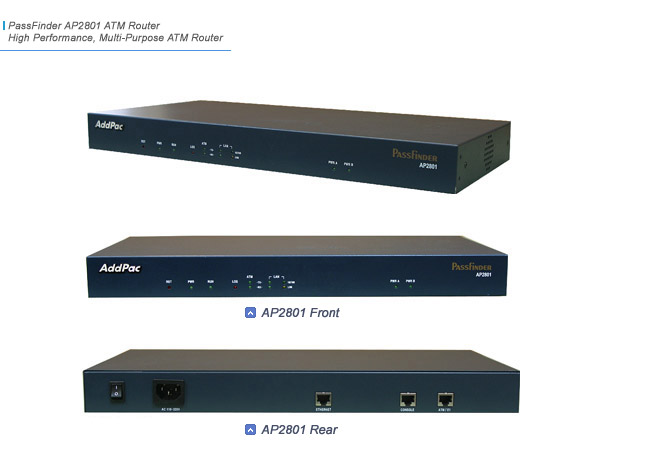

PassFinder AP2801 ATM router provides high-performance ATM-to-LAN solution with IP-routing connectivity for small enterprise, government and other public offices as well as Internet game room and Internet based cyber apartment. Moreover, the AP2801 ATM router is able to guarantee almost 100% line utilization with E1/T1(2,048/1,544Mbps) data networking speed for high-speed Internet connectivity via ATM-to-LAN Routing.
In addition, AP2801 ATM router supports various ATM protocols such as PPP, Frame-Relay, HDLC, including Static, RIP v1/2, OSPF v2 routing protocols and network management features such as SNMP MIB v2, CLI, etc. This router is typically fixed configuration with the following interface: 10/100Mbps fast Ethernet, synchronous serial ports (V.35 serial interface), asynchronous serial Port for console.
APOS Internetworking Software for AP Router
AddPac PassFinder Operating System(APOS) is best router software to provide scalability, reliability, stability, and QoS for internetworking solutions. APOS also provides optimized performance and industry standard network functionality with easy-to-use, easy-to-installation, and maintenance.

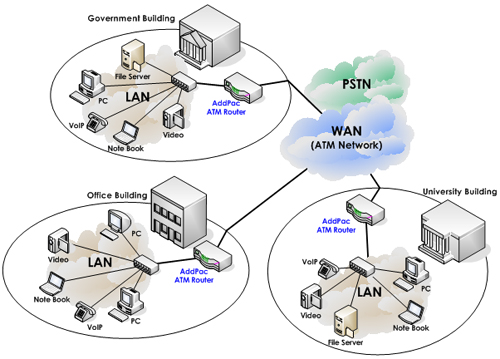

Network Diagram
Standard WAN-to-LAN Router for Data Networking Applications Multi-protocol Routing Solutions between WAN and LAN Access High-end 64bit RISC Microprocessor Architectures Fixed a Single Fast Ethernet & ATM Port for E1/T1 Data Link AddPac APOS Internetworking Software to provide Scalability, Functionality, Stability, and QoS Control for AddPac Router High-performance IP-Routing Capability with Reliability Static, RIP v1/2, OSPF v2, and IEEE 802.1Q VLAN Routing Protocols PPP, Frame-Relay & HDLC Protocols Provides ATM Services such as various Traffic Types, ATM Signaling, Traffic Managements, and Interworking Features Support Traffic Queuing, SNMP MIB v2 for Network Management Features Standard & Extended Access List for Security Functions Essential Scalability Features such as DHCP Server & Relay, NAT/PAT, IEEE Transparent Bridging, IP Accounting, and Debugging/Diagnostics, etc. Remote Software Upgrade using FTP & TFTP Standard 19” Rack Mountable Chassis
Microprocessor
· CPU
64bit RISC Microprocessor
Memory
· Flash Memory
4Mbyte
· Main Memory
16Mbyte High-Speed SDRAM
· Data Access Memory
8Mbyte High-Speed SDRAM
· Boot Memory
512Kbyte Flash Memory
Network Interface
· Fixed WAN Port
One(1) E1/T1 Serial Port
· Fixed LAN Port
One(1)10/100BaseTx Ethernet
· Console Port
One(1) RS-232C Interface
Power & Operation Environments
· Power Requirement
VAC 110~220V, 50/60Hz, 5V 5A(25Watt)
· Operating Temperature
0°C to +50°C (32° to 122°F)
· Storage Temperature
-40°C to +85°C (-40° to 185°F)
· Relative Humidity
5% to 95% (Non-condensing)
Dimension
· H x W x D (mm)
44mm x 444mm x 220mm
(19" Rack Mountable Chassis)
· Weight (Kg)
2.7Kg
IP Routing Protocols
Static, RIP v1/2 ,OSPF v2, and IEEE 802.1Q VLAN Routing
ATM Services
ATM Classes of Service Support
→ ATM PVCs and SVCs Service
→ CBR, rt-VBR, nrt-VBR, UBR, and UBR+Support
→ AAL0 ,AAL5 and AAL2 Support for Data, Voice, and
Video Service
ATM Forum, ITU-T Standard Compliant
→ ATM UNI 3.0, 3.1 and 4.0 Signaling Protocol Support
ATM Traffic Management Support
→ Traffic Shaping, OAM F4(VPC), and F5(VCC)
ATM Encapsulation, Interworking Feature
→ IPoA, PPPoA and PPPoE Support
Network
Managements
Traffic Queuing and Standard SNMP Agent (MIB v2) Support
System Performance Analysis for Process, CPU, Connection I/F
Configuration Backup & Restore for APOS Managements
Debugging, System Auditing, and Diagnostics Support
System Booting and Auto-rebooting with Watchdog Feature
System Managements with Data Logging
IP Traffic Statistics with Accounting
Other
Scalability
Features
DHCP Server & Relay Functions
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging (IEEE Standard) Function
→ Spanning Tree Bridging Protocol Support
→ Remote Bridging Support
→ Concurrent Routing and Bridging Support
Standard WAN-to-LAN Router for Data Networking Applications
