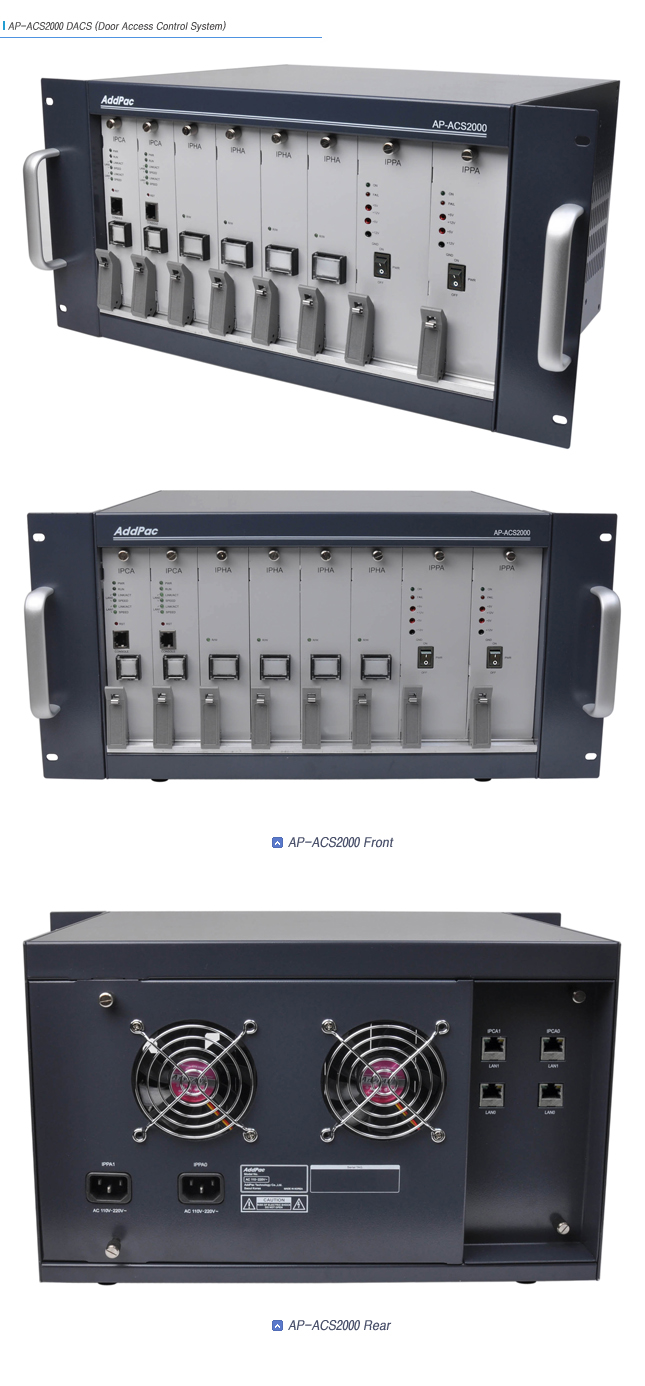

AP-ACS2000 medium and large scale DACS (door access control system) interworks with various AddPac SIP based IP wall PAD and IP video door phones such as (AP-VAC50 SIP video door phone, AP-VAC20 SIP video door phone, etc.) to support door access management service. It is designed on the basis of high performance APOS (AddPac Operating System) based server and appropriate for medium & large apartment and enterprise like as university. It interworks with various AddPac IP video wall PAD and IP based video door phone products to support efficient video door phone management service and time & attendance service using RF card, Fingerprint Recognition Scheme.
IP Video Door Phone Management Feature and Time Attendance Service
AddPac IP video door phone is a device to open and close the door after verifying the identity of visitor. It is embedded with alarm, relay output port, and RS485 interface function to control the door remotely by interworking with automatic door. Also, it offers password, RF card, and fingerprint verification technology for easier access of employees. AddPac DACS (Door Access Control System) supports both video door phone management/application services. Video door phone management function provides user management function, group management function, setup management function, RF card register and manages, fingerprint verification register and manage, and access log function and allow to extend the application service such as time attendance/absence. Login Control, Daily Attendance Rules, Monthly Attendance Rules, Business Trip and Vacation, Report for Admin are main functions for AP-ACS2000 time & attendance service.
Call Manager Function
AP-ACS2000 call manager function offers to connect IP wall PAD, IP video door phones and administrator video phone using SIP standard call process technology. AddPac AP-ACS2000 DACS provides the Active-Active system duplication features for fault tolerant architecture. For the system duplication, it use the dual(2) Hot-Swap CPU boards and two(2) 3.5 inch HDD module slot(RAID 1) per CPU board at the front part of chassis. Also, it also comes with two(2) 10/100/1000Mbps gigabit ethernet port at the rear part and console port at front panel.
It features a wide variety of SIP based internal call scenarios such as Basic Call, Coloring Service, Music on Hold, Blind Transfer, Call Pickup, Group Call Pickup, Consult Call, Switching Call, Consult Transfer, Call Waiting, Call Waiting Notify, Call Park, Call Pickup Remote, Hunt Group, supporting SIP, H.323 for external calls concurrently. In addition, 3.5 inch Dual SATA high capacity HDD for RAID 1 configuration is well-suited to the services which need sizable memory capacity such as Voice Mail ensuring the system consistency and the high availability
Built-In Media Service Function
AddPac AP-ACS2000 DACS system supports network based media service function. It is an excellent solution to provide announcement, ringback tone, and music on hold by interworking with IP video door phone, IP video phone under video door phone environment. It also supports individual/group ring back tone, music on hold, and change ring back tone/music on hold file in accordance with schedule.
System Redundancy Architecture Support for Fault Tolerant Service
AP-ACS2000 large scale DACS provides system redundancy features for fault tolerant architecture. For redundancy of AP-ACS2000, this system supports the dual CPU boards and adopts the dual HDD system per CPU boards for hard disk redundancy (RAID1 configuration). Also AP-ACS2000 supports the dual internal module type power supply. It¡¯s ideal DACS system for medium and large businesses taking a full advantage of system stability.
AddPac IP Video Door Phone Total Solution
AddPac technology is not only a vender to provide simple SIP video door phone/door access control server, but also to provide various devices such as media gateway, audio/video terminal, external audio/video MCU, IP audio/video broadcasting, VoD solution, network DVR, audio/video recording solution, traffic controller QoS solution for network environment. AddPac IP video door phone solution is designed to consider the multimedia integrated solution to meet the various customer needs.
AddPac multimedia network devices are well recognized in the world. AddPac SIP based video door access solution will give a full satisfaction to the customers.

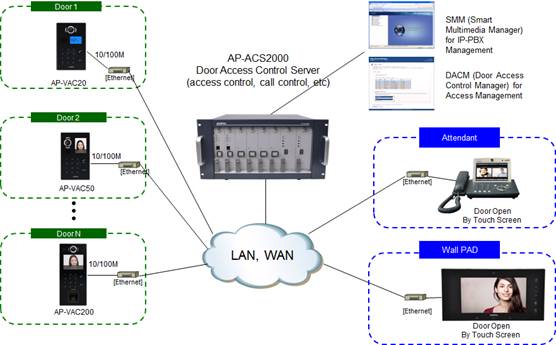

Network Diagram
Overall Features
Medium and Large Scale DACS (Door Access Control System)
AddPac SIP Video Door Phone Support : AP-VAC20, AP-VAC50, AP-VAC100,
AP-VAC200,etc
Time & Attendance Service using RF Card, Fingerprint Recognition SIP Video
Door Phones
Video door phone management function like as RF card register, etc
AddPac SIP Video Wall PAD Support : AP-VWP100, AP-VWP90, AP-VWP80,AP-VWP50,
etc
Dual CPU Boards (Hot-Swap) : High performance RISC Microprocessor structure
CPU Board Main Memory : Flash Memory 16MByte, DDR 512MByte
CPU board HDD : Two(2) 3.5 Inch SATA Hard Disk Module Slots for RAID1
Configuration
Voice Mail, raffic Queuing, and SNMP MIB v2 for
Network Management Features
Microprocessor
High Performance RISC Integrated Host Processor
Memory
Flash Memory
16MB
Main Memory
1Gbyte DDR2
Boot Memory
512Kbyte Flash Memory
System Processor
Board Network Interface
LAN0 Port
One(1) 10/100/1000Mbps Gigabit Ethernet
LAN1 Port
One(1) 10/100/1000Mbps Gigabit Ethernet
Console Port
One(1) RS-232C Interface for CLI
Voice Interface Module
Dual Hard Disk Module (RAID1)
Hot-Swap 3.5 Inch SATA HDD Module
Power Requirement
Power VAC 110~220 VAC, 50/60Hz, 12V 12A
Operating Temperature
0¡ÆC to + 50¡ÆC (32¡Æ to 122¡ÆF)
Storage Temperature
-40¡ÆC ~ +85¡ÆC (-40¡Æ ~ +185¡ÆF)
Relative Humidity
5% to 95% (Non-condensing)
Dimension(H x W x D)
230 x 374 x 318 (mm)
Weight(kg)
17 Kg
Number & Call Routing
Trunk Hunting by Preference or Sequential
Calling Hunting by Preference, Simultaneous, Random
Calling Hunting by Chained Hunting Group
Partition for Address Grading
Call Class for Call Access Control
Number Translation Rule for Inbound/Outbound Call
Centrex with Prefix Support
Multiple Shared Devices with One Number
Multiple Numbers on One Device
Individual Call Park within Park Number Pool
Group Call Park within a Group or Other Group
Call Pickup of Ringing Call of Same Group or Other
Group
Call Pickup of Parked Call
Call Transfer- Blind, Consult
Call Forwarding – Unconditional, Busy, No Answer,
Voice Mail
Call Waiting
Call Swapping
Call Hold
Advanced Features with AddPac IP Video Phone, etc
with AddPac IP phone, Video Phone, etc
Plug and Play with Auto Discovery Function
Softkey Map Download and Control
Time and Date Setting
Telephony and Service
&
Features
Voice Mail List View
Parked Call List View
Call Forwarding Setting
Recent Call List View
Calling Number and Name Identification
Individual Call Park within a Group or Other Group
by Softkey
Group Call Park within a Group or Other Group by
Softkey
Call Pickup of Ringing Call of Same Group or Other
Group by Softkey
Call Pickup of Parked Call by Softkey
Call Transfer – Blind, Consult by Softkey
Call Waiting Indication
Call Swapping by Softkey
Call Hold by Softkey
Conference Control
Signaling Protocols
SIP Application Server, Proxy, Registrar and
Location Server(RFC3261)
Multiple ITSP Trunk with SIP & H.323 Account
Support
- IP UA Client Role for Registering to ITSP SIP Server
- H.323 Gatekeeper Client Role for Registering to ITSP H.323 Gatekeeper
Server
IVR(Interactive Voice Response)
&
Auto Attendant
Default Auto Attendant Support
IVR Function
Provides with GUI-based Smart IVR Scenario Editor
Upload/Download Scenario by Smart IVR Scenario Editor
Supports Multiple Concurrent Scenarios
Support Recordable IVR Prompts
Voice Mail
Support Voice Mail with IVR
Access from Remote Site via Trunk Support
Voice Mail Notification Support
Conference
Ad-Hoc Conference
Dial-Out Conference
Meet-me Conference
Multiple External MCU Support (Video, Audio,
etc) : AP-MC1000
Conference Chair and Participants Management
Music & Announcement
Music on Hold
Replaceable Announcements
Dialing Music/Tone Service
User & Device Management
LDAP(Lightweight Directory Access Protocol) Support
- Support Hierarchical Organization
System Performance Analysis for Process, CPU,
Connection I/F
Configuration Backup & Restore for APOS Managements
Debugging, System Auditing, and Diagnostics Support
System Booting and Auto-rebooting with Watchdog
Feature
System Managements with Data Logging
IP Traffic Statistics with Accounting
Other Scalability Features
DHCP Server & Relay Functions
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging (IEEE Standard) Function
¡æ Spanning Tree Bridging Protocol Support
¡æ Remote Bridging Support
¡æ Concurrent Routing and Bridging Support
