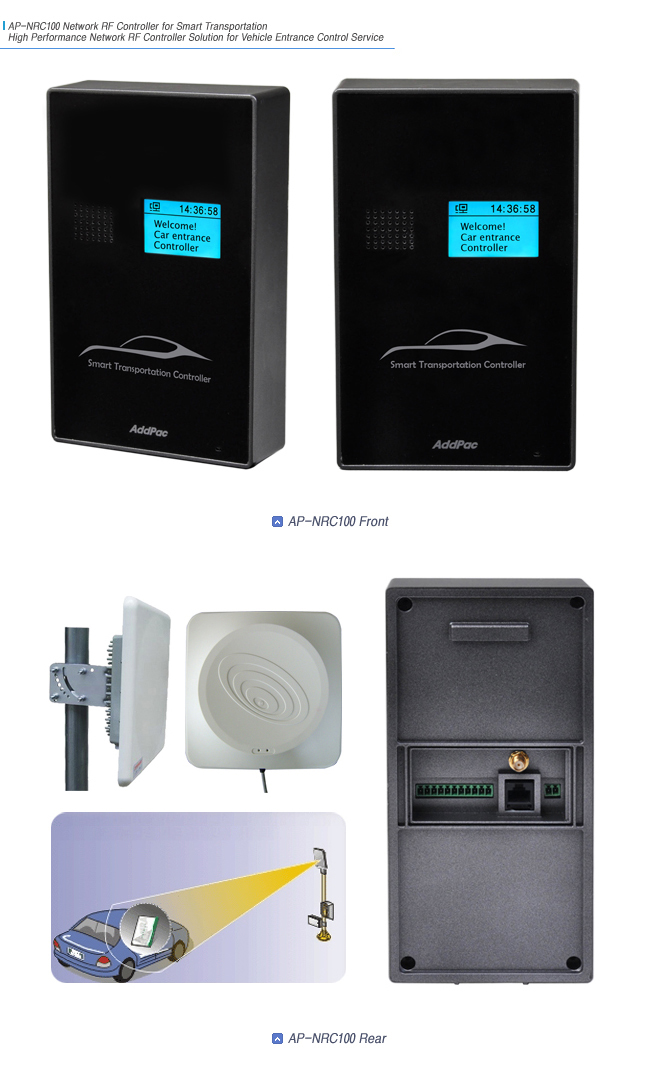

AP-NRC100 network RF controller is a vehicle access control unit through high performance external UHF antenna with built-in RF module. It supports both LAN interface for standalone mode and RS232/RS485 interface for AddPac video door phone clone mode, providing an excellent scalability by interworking with AddPac Access Control Server System(IP-PBX + Time Attendance). AP-NRC100 provides IP based vehicle access control solution.

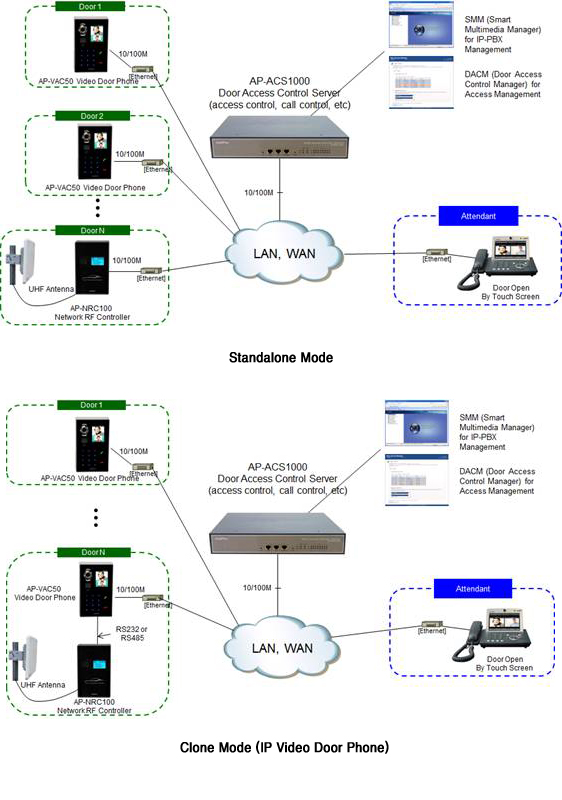

Standalone Mode and Clone Mode
AP-NRC100 network RF controller is a device to open and close the vehicle entrance gate after verifying the identity of vehicle. It is embedded with alarm, relay output port, and RS485 interface function to control the gate remotely by interworking with automatic gate. AP-NRC100 supports device management service. The device management function provides user management function, group management function, setup management function, RF card register management for vehicle registration, and access log function.
To extend the application service such as vehicle entrance information, AP-NRC100 should interworks with AddPac access control server system like as AP-ACS1000. AddPac access control server system supports login control, vehicle entrance information recording, vehicle information transferring to smart IP wall pad in each home, reporting function for administration, etc.
AP-NRC100 supports both LAN interface for standalone mode and RS232/RS485 interface for AddPac video door phone clone mode. Single IP address is enough when AP-NRC100 is operated as a clone mode of AddPac video door phone like as AP-VAC50, etc.
Firmware Upgradeable Structure
AP-NRC100 RISC CPU is programmable structure so that user may use the latest features without much effort by simply setting an auto upgrade option or download from the homepage.
Smart Web Manager Function
AP-NRC100 is embedded with Smart Web Manager for easy control of video door phone. User may setup/manage IP video door phone through PC, smart phone, and tablet device.
AddPac door access control products are well recognized in terms of performance and stability throughout the world. With our accumulated experience in enterprise market and communication market, AP-NRC100 will satisfy the needs of customer along with AddPac door access control solution.
High performance RF controller solution for
Network (LAN) based RF Controller Solution :
RS232/RS485 Interface Support for AddPac IP
Video Door Phone Interworking : Clone Mode
Interworking with AddPac ACS(Access Control
Server) for RF Registration
RF Controller Interface using High Performance
External UHF Antenna
Blue LED backlight LCD, 128 x 64 display
Network interface: 10/100Mbps fast Ethernet
interface x 1
Support RS232/RS422/RS485 interface, alarm
input, relay output port
Support Power over Ethernet (PoE) : Option
High Performance RISC H/W Architecture
One(1) 10/100Mbps Fast Ethernet
Control & Display
Display Type : FSTN, Positive
Built-in Controller : ST7567
Blue LED Backlight
Active Area : 35.48(W) x 22.38(H)
Number of Dots : 128 x 64
RF Interface for Vehicle Entrance Control
ISO18000-6C, EPC class1 Gen 2
Kind of antenna
Circular Polarization Antenna
ISO18000-6C, EPC Global Class1 GEN
<5m (dependent on reader placement and Tag type)
Impedance : 8 +-15%ohm at 1kHz, 1.0 Vrms
Sound Pressure : 90 +- 3dB at 0.1W/10 CM
at 800Hz, 1.0kHz, 1.2kHz, 1.5kHz
Resonance Level : 550Hz +- 20%Hz at Fo Hz, 1.0Vrms
Frequency Range : Fo Hz ~20kHz
Input Power : Normal : 1.0 W, Max : 2.0W
Alarm Input : 2 Port
Relay Out : 2 Port
External Power VAC 110~220 VAC, 50/60Hz, 12V 1A
PoE (Power over Ethernet)
Input voltage range 36V to 57V
