Title : 7 inch Enterprise SIP Video Door Phone AP-VAC300

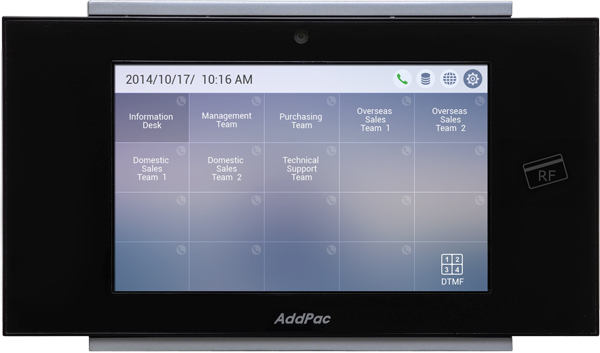

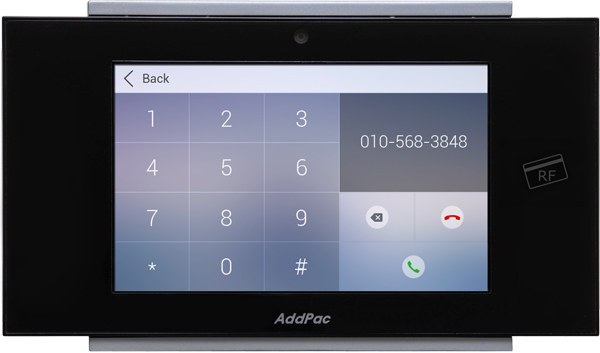

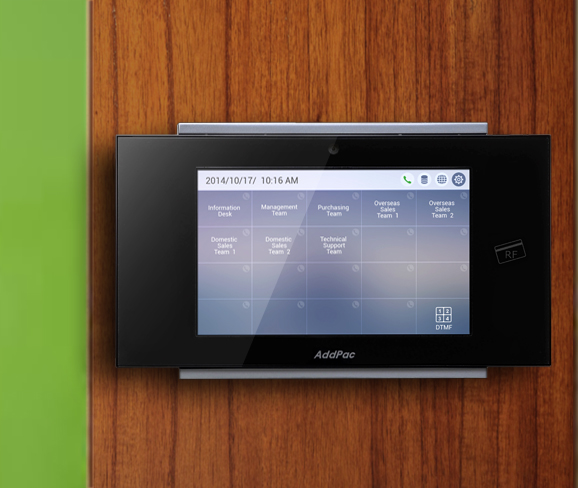

AP-VAC300 7 inch enterprise SIP video door phone is a visitor access control unit through video screen using internet. It uses the SIP standard video signal process feature, providing an excellent scalability by interworking with IP video phone, and soft video phone. It also supports the latest audio/voice codec at the optimum level. AP-VAC300 provides enterprise SIP video based visitor access control solution. For various application and flexible service, this product use 7inch TFT-LCD with touch screen feature.

AP-VAC300 SIP video door phone is combination of SIP VoIP signaling technology/video processing technology. AP-VAC300 provides 64Kpbs level of network so that user may use anywhere with internet connection. Especially, it applies high end ¡°Error Resilience¡± technology to cope with various packet errors to secure optimum level of voice quality in limited bandwidth environments. It also supports G.722 wide band codec along with G.711, G.726 voice band codec. And, for enhanced voice quality, AP-VAC300 supports full duplex voice communication scheme and acoustic echo canceller.

AP-VAC300 is a new IP video door phone for enterprise, factory, etc where Internet voice communications are combined with Internet video monitoring. This product provides advanced features and services such as video codecs (e.g. H.263, MPEG-4, and H.264), QoS, and public IP sharing as well as multiple VoIP signaling protocols such as SIP and H.323. Also, this product supports USB based WiFi LAN interface besides one(1) fast ethernet port. Using this dual LAN interface, AP-VAC300 can support wire network environment as well as wireless network environment.

AP-VAC300ZW High End IP Video Door Phone is optional extension device of AP-VAC300 for ZWave Sensor Device Support. AP-VAC300ZW IP video door phone supports the Z-Wave Sensor Interface for various Z-Wave based sensor device direct supporting like as motion sensor, light switch sensor, door open/close sensor, etc. This wireless Z-Wave sensor interface feature besides legacy wired based alarm signal will very helpful for various applications at door side. And the Z-Wave Interface of AP-VAC300 is compatible with Z-Wave base smart sensors from various manufactures, AP-VAC300ZW can easily add new smart sensor devices in your smart sensor network like as at various enterprise environment application.

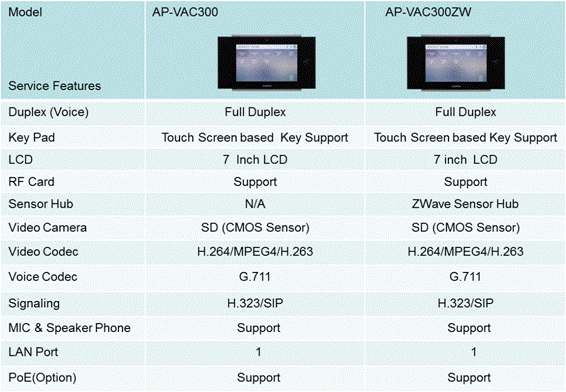

AP-VAC300 and AP-VAC300ZW Comparison Table




Network Diagram

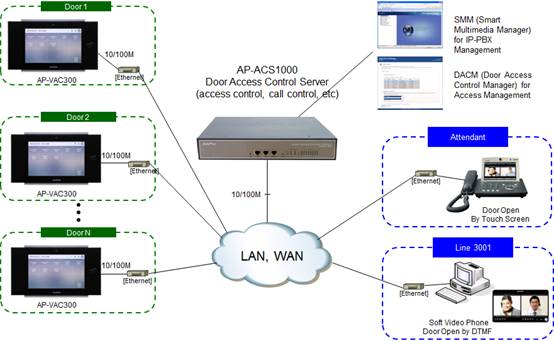

AP-VAC300 Network Diagram

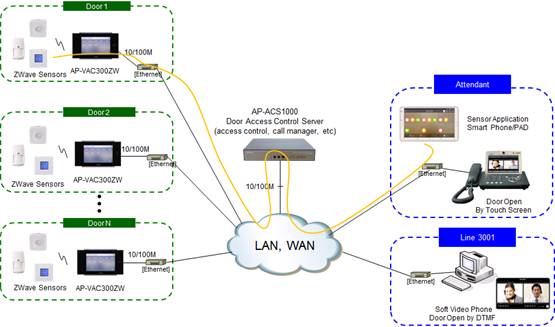

AP-VAC300ZW Network Diagram


¡ß AP-VAC300 Web Page Link






¡¡
¡¡
¡¡
