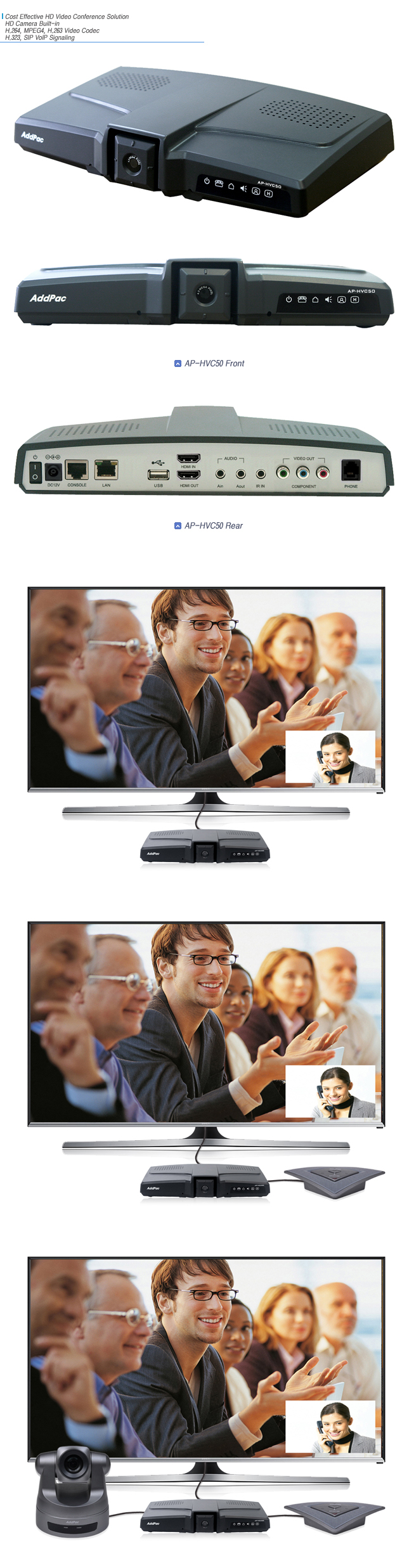

AP-HVC50 HD video conference equipment delivers a powerful high definition IP based video communication by simply connecting televisions, and ordinary telephones. Designed on firmware upgradeable, high-performance DSP, AP-HVC50 equipped with the latest audio/video codec like as H.264, AV In/Out interfaces realizing complete Internet video telephony, video conferencing and AV broadcasting system in one platform. This device provides built-in internal HD video camera sensor for cost effective video communication applications.
Powerful Video Communication Solution for Next Generation Broadband Network
AddPac AP-HVC50 cost effective HD video conference equipment offers improved effectiveness with its cutting-edge DSP based video processing technology, IPv4/IPv6 based networking protocol technology and VoIP signaling technology. By connecting ordinary telephones, television(audio/video) to AP-HVC50, this device make the ultimate and easy solution for traffic control, audio/video broadcasting and various customer specific applications.
Table 1. AP-HVC50 Usage

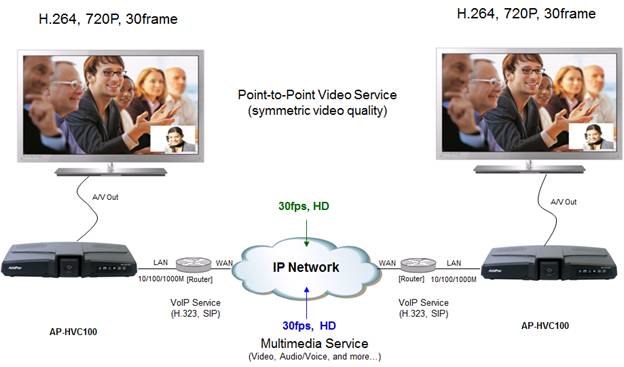

Talk face to face. Multimedia communication by connecting ordinary telephones (or external microphones and speakers), HDTV
· Analog telephone · HDTV monitor
Talk face to face. Multimedia communication by connecting ordinary telephones (or external microphones and speakers), HDTV.
· External Microphone/Speaker · TV Display
VoIP telephony service between video gateways and low-cost telephony service with PSTN users via VoIP ISP service.
· Analog telephone · PSTN Interface
Along with existing AddPac audio/video broadcasting system at banking sector, public office and local government, enable to deploy as IP based video broadcasting terminal (Additional broadcasting server required.)
Experience High Definition Video Quality
In case of H.264 video codec, AP-HVC50 supports max. 30 frames of 720p(1280×720) images which is considered promising for the high quality video application. The HDMI video output interface of AP-HVC50 supports the 720P(1280x720) HD video display.
Keen to New Technology: Firmware Upgradeable Architecture
Designed on programmable high-performance RISC CPU and high performance DSPs, AP-HVC50 is capable of adopting new capabilities and improvement by downloading firmware from website or with its auto-upgrade option as the customers' needs grow. Using this firmware upgrade S/W features and solution (ex, SNMS : Smart Network Management System), new coming video/audio codecs, VoIP signaling protocols and network protocols will be supported
AP-HVC50 supports both network security for the purpose of device access restriction and service security. Use CID (caller ID) function to check the other party’s phone number before answering and blocking video/audio feature using remote controller. When selecting “Privacy” menu, you may block voice, video, or both in advance. Also, it supports Secure RTP (AES encryption algorithm) feature to support security function for conferencing in network
AddPac VoIP and video solutions are well recognized in terms of its performance and stability throughout the world. With our accumulated experience in both enterprise market and communication market, AP-HVC50 would satisfy the needs of customer.
Supports HD 720p (1280x720) high quality video communications by 30
frames per second.
Supports rate control for the best video quality and frame rate at a
Applies high-end error resilience to troubleshoot various packet
failures on a network.
Remote control, and menu key on the front panel
High performance programmable DSP
H.323, SIP Dual Stack
FXS(RJ11x1) VoIP Interface
USB Interface : USB 2.0 Master Mode Interface (USB WiFi, Mouse)
Supported Codec: H.264, MPEG-4,H.263
Video Output Interface: HDMI video Output, component video output
Processes 720p(1280x720) HD video by 30 frames per second (based on
Supports rate control to ensure the best quality and frame rate at a
High-end error resilience is applied to troubleshoot various packet
failures on a network.
Supported Codec: Voice Band - G.711, G.726
Wide Band – G.722, etc
Caller ID & Hold
G.723.1, G.729A, G.726, G.711, etc. Voice
SIP, H.323 Dual Stack
High-performance IP-Routing Capability with
Static, IEEE 802.1Q VLAN Routing Protocols
Traffic Queuing, and SNMP MIB v2 for Network
Standard & Extended Access List for Security Functions
Essential Scalability Features such as DHCP Server &
Relay, NAT/PAT, IEEE Transparent Bridging,
IP Accounting, and Debugging/Diagnostics, etc.
DNSProxy, UPnP, MAC Address Filter Service
CPU High Performance RISC Integrated Host Processor
High Performance DSP (Digital Signal Processor)
Network Interface Module
Network Interface Module LAN Port One(1) 10/100Mbps Fast Ethernet
One(1) RS-232C Interface
HD Camera Sensor
Built-In HD Camera
CMOS 720P Wide Dynamic Range(WDR) HD Image Sensor,
1/3 Inch One(1) Megapixel Image Sensor
HD Camera Module(Built-in)
(x3) Optical Zoom
1/2.8-type Exmor Sony CMOS Sensor
HDMI Video Input for External HDMI PTZ Video Conference Camera
HDMI Video Output
One(1)-Component(Y, Cr, Cb) Connector
One(1)-3.5mm Stereo-In Connector
Analog Voice Interface
1-Port FXS Interface for Analog Phone (RJ11)
USB 2.0 Host Mode
USB Wifi, Mouse
Power & Operation Environments
External Power VAC 110~220 VAC, 50/60Hz, 5V,5A
0°C ~ 50°C (32° ~ 122°F)
-40°C ~ +85°C (-40° ~ +185°F)
5% ~ 95% (Non-condensing)
H x W x D
44mm x 260mm x 148mm
Static and IEEE 802.1Q VLAN Routing Protocols
including VRRP etc
