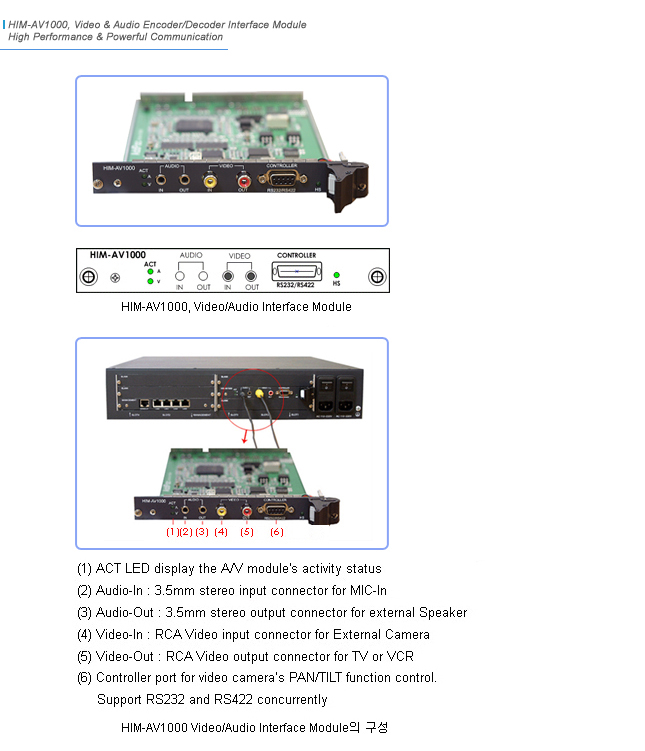

HIM-AV1000 is a high-performance IP based video and audio encoding/decoding codec module which can be placed on the AP5850 multi service router. Since designed along with the programmable DSP, the various and useful AV codec firmwares for the specific applicable services can be downloaded or upgradable from the host CPU.
One of powerful features is to support the high quality video processing most efficiently without transmission delay because high performance DSP codec module, HIM-AV1000 is directly placed into the multi service router slot. Furthermore, it supports the hotswap mode that enables module replacement during the system operation and multiple HIM-AV1000s are able to be placed and operated in the extra slots of AP5850.
In case that HIM-AV1000 is placed and operated in the multi service router, VGA-level video(30 frame/sec, 640×480, MPEG4) can be transmitted via the multi service router. HIM-AV1000 supports not only the video processing feature but the integrated CD-level high quality audio service with 3.5mm stereo audio interface. Extra RS232/RS422 controlling port supports camera control functions such as pan/tilt, zoom.
