AP-VP280 is an IP video phone that allows you to make high quality and high resolution video communications by using the Internet. This product supports a video conference, point-to-point video communication, VoD, IPTV, network surveillance, and aid to communication access for the disabled optimally through the latest audio/video codecs and a variety of AV I/O interfaces. The criteria of choosing a video phone are high quality audio and video.
New World of Advanced and High Quality IP Video Communications Opens!
AP-VP280 is a new IP video phone where Internet voice communications are combined with Internet video communications. This product provides advanced features and services such as video codecs (e.g. H.263, MPEG-4, H.264, and JPEG), RCA A/V I/O interfaces, QoS, and public IP sharing as well as multiple VoIP signaling protocols such as SIP and H.323.
¡°Advanced Video Communications¡±, New Criterion of Selecting a Video Phone
AP-VP280 is a high-performance multi-functional IP video phone where the state-of-the-art video processing technology is added to the voice processing technologies developed by AddPac in the VoIP field. AP-VP280 has better video features since it ensures high definition video due to a high-quality 7¡± LCD and you can enjoy a large screen connected to the external monitor. Since AP-VP280 supports networks of 64 Kbps to several Mbps, it is available at any Internet-enabled place. Above all, AP-VP280 ensures the best video quality due to the ¡®rate control¡¯ function that ensures the best video quality and frame rate at a limited bandwidth and the high-end error resilience technology for troubleshooting various packet failures on the Internet. In case of MPEG-4 video codec, it supports max. 30 fps (frame per second) of VGA(640 x 480) video image.
Why 'Audio' Important to Video Communication
High quality audio determines the perceived quality of video because audio delivers the key part of communication. AddPac AP-VP280 is an advanced video solution with its high quality audio. It offers 16 KHz sampling G.722 wide-band codec in addition to conventional 8 KHz sampling codec of G.XXX series. AP-VP280 delivers unparalleled end-to-end true IP video conferencing service.
Firmware Upgrade Enabled
The high-performance RISC CPU and DSP of AP-VP280 are all programmable; thus, the features of AP-VP280 can continue to be improved, changed, or added. If you download an added or changed feature from the home page directly or set an automatic upgrade option whenever feature addition or change is done, you can use the latest feature without further operations.
Various Supplementary Services
The supplementary services of AP-VP280 as well as its various features would meet your needs. AP-VP280 provides various services that allow you to use a phone easily, which include a phone book, a latest call log, and Caller ID (CID). Also, this product as well as AddPac IP-PBX solutions supports a wide variety of supplementary services such as voice and video mail services in addition to calling services such as a call transfer. The advantage of AP-VP280 is to support the unique supplementary services of AddPac. Broadcasting, instant messaging, DVR monitoring, IPTV, and VoD service are the main supplementary services of AddPac. If AP-VP280 is connected to the AddPac Technology¡¯s IP broadcasting server equipment, AP-VP280 can be used as IP voice and video broadcasting terminal as well as Video Phone terminal. This product inter-works with the instant messaging server, IPTV server, and enterprise VoD solution of AddPac to provide advanced services.
Reliable Video Phone
AP-VP280 is integrated network equipment that enables routing, NAT/PAT, DHCP Server/Relay, public IP sharing, and QoS. Advanced QoS and security as well as various network services should be supported to adapt to a variety of network environments such as high-speed individual subscriber networks (e.g. xDSL, cable networks, and FTTH), Metro Ethernet, Metro ATM, leased lines, and flexible IPs. In this regard, AP-VP280 has two 10/100 Mbps Fast Ethernet ports to support a variety of network and security services such as high-performance LAN-to-LAN routing, bridge, and NAT/PAT. In addition, AP-VP280 supports H.323 and SIP VoIP signaling protocols concurrently. The technologies of AP-VP280 are differentiated from those of the traditional equipments in that one AP-VP280 supports two VoIP signaling protocols concurrently; thus, even if AP-VP280 moves to another Internet Telephony Service Provider (ITSP) whose VoIP signaling protocol is different, AP-VP280 can easily adapt to a new environment without change. AP-VP280 is a reliable solution that ensures good technologies.

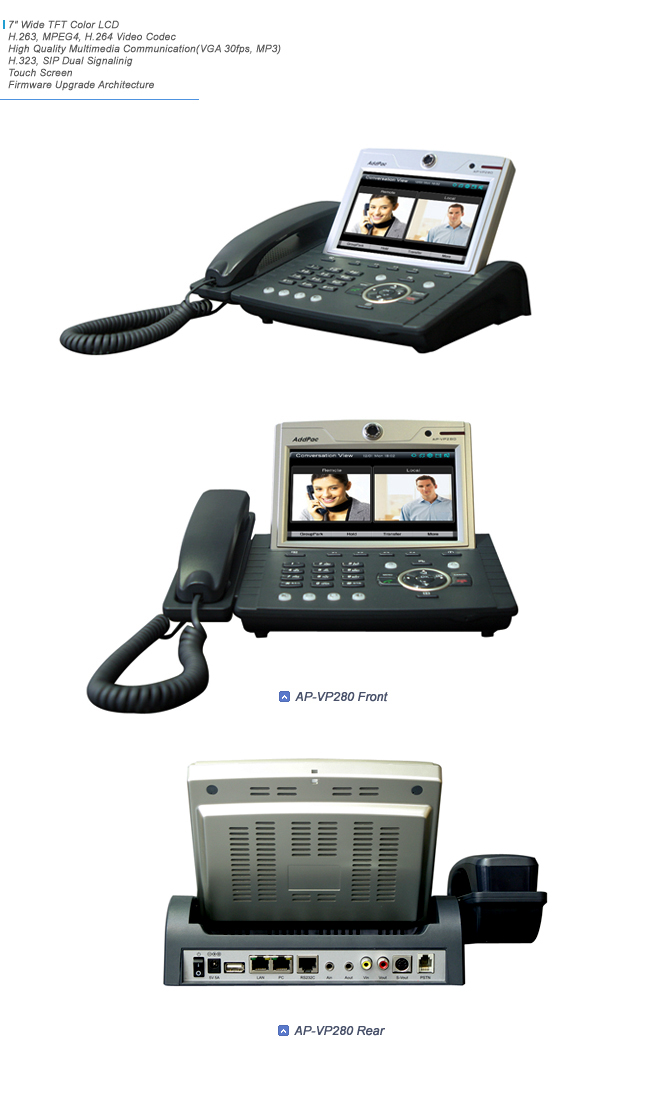

The rear panel of AP-VP280 has the USB master mode interface. AP-VP280 supports standard USB flash memory, a USB hard disk, a USB keyboard, and a USB mouse. Several USB devices can be connected by using a USB hub. A separate power supply device should be used for a USB device that requires much power consumption since limited power is supplied to the USB device. If USB memory is used, AP-VP280 enables a file browser, and decodes JPEG, PMA (video stream format of AddPac) files. Video data that require much memory can be saved in external USB memory.
Privacy and Security
AP-VP280 supports reliable service security as well as network access security. This product allows you to check the target phone number before answering a phone through Caller ID Detection (CID) and to disable the audio or video functions easily by using the wireless remote control. If you select the 'Privacy' menu, you can disable either or both of voice and video in advance.
The performance and reliability of AddPac VoIP, Video and Multimedia equipments have been recognized in global markets as well as the Korean market. AP-VP280, which is a collection of experiences and know-how accumulated in the enterprise and service provider markets, would be a solution that meets the needs of customers that ask for next-generation communications.
Supports high quality video communications of 30 fps.
Enables dual monitor emulation.
Supports rate control for the best video quality and
frame rate at a limited bandwidth.
Applies high-end error resilience to troubleshoot various
packet failures on a network.
LCD: 7 inches (VGA Display)
Touch Screen Built-in
Remote Control (Remocon) : Option
High performance programmable DSP
H.323, SIP dual stack
PSTN FXO interface (RJ11) : Option
Expanded Video I/O Interface: Composite (RCA)¡¿2, Video
