GIS MAP based geological SIP emergency call management software display the current security situation like as SIP emergency phone device on MAP. The SIP emergency device or system overlay display on MAP help to understand the current security situation intuitively. AddPac GIS MAP based geological SIP emergency call management software consists of security management monitoring and GIS MAP editor function. MAP based security monitoring software is located in main security management software and several MAP display can be located in main security management software as tile style. AddPac GIS MAP software for emergency call center, CCTV VMS supports EMAP, Off-line MAP and On-Line MAP

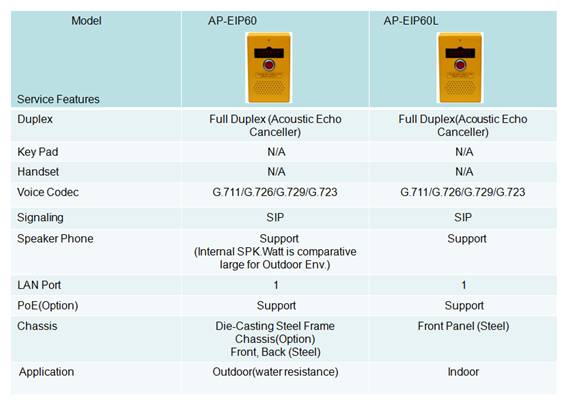

AddPac IP based emergency IP phones (AP-EIP100, AP-EIP90, AP-EIP70,,etc) enable the high-quality voice communications by using internet. This phone can be used in many different places requiring emergency call features and supports voice telephony service at optimum level in the general internet environment. Emergency call button, 3 x 4 dial button, SIP VoIP signaling, various voice codec, speaker interface, off-hook dialing feature and Power over Ethernet (PoE) are hardware, software main features of AddPac IP emergency call phone.
Many features of AddPac IP emergency phone are highly distinguished and they have been designed in high voice quality DSP-based hardware architecture and integrated with Acoustic Echo Canceller which supports the built-in microphone and 2-way communication of Full Duplex. Also IP emergency phone supports SIP VoIP signaling protocols and a wide range of voice codec of G711, G726, G729 and G.723.1 depending on bandwidth availability, so AddPac IP emergency phones can be used in just about anywhere with internet connection. This emergency telephone has been implemented with QoS to comply with the packet error and all different kinds of latency on internet, especially in a limited bandwidth situation

IPNext600 fault tolerant IP-PBX delivers a new cost effective IP communication solution for ‘All IP’ environment as a core system of AddPac’s comprehensive IP Telephony solution which features various IP terminals such as AP-IP300 IP phone, AP-IP120 IP phone, etc. Designed on the foundation of high performance embedded RISC CPU, IPNext600 supports the dual system processor boards. Also, IPNext600 supports the dual module type power supply. It’s ideal IP-PBX system for medium size enterprise taking a full advantage of system stability. AddPac IPNext600 NGN(Next Generation Network) IP-PBX provides the Active-Standby system duplication features for fault tolerant architecture. For the system duplication, it use the dual(2) Hot-Swap CPU boards at the front part of chassis. Also, it also comes with two(2) 10/100Mbps fast ethernet port and console port per CPU board. Also the front of IP Next600 also provides LED array which has been designed to grasp system and network utilization at a glance.

AddPac Technology IP phones are designed to provide enhanced IP telephony functionality to meet the wide range of business user requirements. This IP telephones optimally deliver rich featured voice telephony service on ordinary internet infrastructure as well as AddPac IP-PBX environment on local LAN as a fully featured IP extension for the complete AddPac VoIP solution. The new and versatile AddPac IP phone bring the integrated solution for the IP based voice communication and the broadcasting feature to maximize business potentials. It provides feature keys, customizable hot-keys, two(2) ethernet ports, the latest QoS, public IP sharing. It supports not only the major VoIP signaling protocols such as SIP, H.323 but also G.711, G.726, G.729, G.723 voice codec, stereo audio in/out interfaces for external Headset MIC, etc.

Smart Attendant Console is an IP based soft attendant console that interoperates with AddPac IP-PBX products, which are based on its next generation multi-media IP telephony solution. This product together with AP-IP300 IP phone can be used for IP based soft attendant console solution. In large-scale enterprise, government, etc, for inbound/outbound call processing, call transfer, call exchange, dedicated persons or department are necessary. Smart Attendant Console is IP based soft attendant console solution for them. Smart Attendant Console based on MS-Window program supports all different kinds of services such as messenger service, unified message (voice mail, short message), remote IP broadcasting, alarm registration/processing, beside basic attendant console function like as user presence Board, inbound call rerouting, telephone directory. Smart Attendant Console can be operated by AddPac Technology’s proprietary protocol called Smart Service Control Protocol (SSCP), which is managed between AddPac’s IP PBX and IP terminal like as Video Phone, IP Phone, etc.

AddPac IP voice recording solution provides high performance network based digital voice recording/processing function by interworking with AddPac SIP call manager like as IPNext600, IPNext180. For IP voice recording service, SIP emergency call phone at site is connected to call center SIP phone via SIP call manager RTP proxy function. For voice recording service, SIP call manager transmits RTP packet and SIP call detail information (calling/called party number, call duration, etc) to the IP based network voice recording system such as AP-NR1500. Stability/redundancy of system is flexible due to IP based design structure.

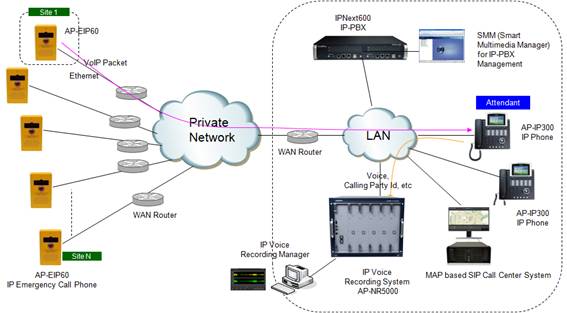

Network Diagram
