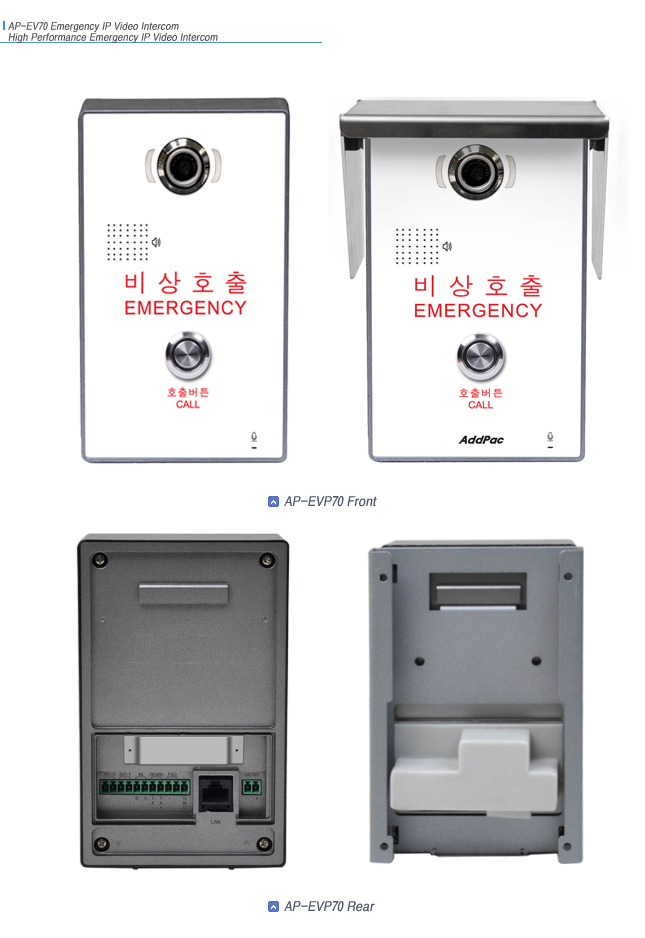

AP-EVP70

AP-EVP70, AddPac emergency IP video intercom, is the emergency call phone that enables the high-quality video communications. This phone can be used in many different places requiring emergency call features and supports video telephony service at optimum level in the general internet environment such as ADSL through all different kinds of voice codec, speaker interface and Power over Ethernet (PoE). AP-EVP70 supports the steel chassis frame for stability in tough environment.

IP based Video Emergency Phone

AP-EVP70 is an IP video emergency intercom that AddPac has accumulated from Video, VoIP and IP telephony application all the while and integrated with video/voice processing, signal processing and network technologies. Many features of AP-EVP70 are highly distinguished and they have been designed in high video quality DSP-based hardware architecture and integrated with Acoustic Echo Canceller which supports the built-in microphone and 2-way full duplex communication. Also AP-EVP70 supports SIP VoIP signaling protocols and a wide range of video codecs of H.264, MPEG4, H,.263, etc and voice codecs of G711, G726, depending on bandwidth availability, so AP-EVP70 can be used in just about anywhere with internet connection. This emergency telephone has been implemented with QoS to comply with the packet error and all different kinds of latency on internet, especially in a limited bandwidth situation

Advanced Video Communication

AP-EVP70 emergency IP video intercom is combination of signaling/voice processing technology and video processing technology. AP-EVP70 provides 128Kbps~1Mbps network with internet connection. Especially, it applies high end “error resilience” technology to cope with various packet errors and “rate control” to secure optimum level of resolution/frame rate in limited bandwidth environments. It also supports MPEG4 along with H.264 video codec and supports max. 30 fps (frame per second) of VGA (640 x 480) video image.

Power over Ethernet

AP-EVP70 has one (1) 10/100M fast ethernet port for Power over Ethernet (PoE) which can be connected to PoE Ethernet switch or PoE converter for use.

Smart Web Manager Function

AP-EVP70 IP emergency video phone is embedded with smart web manager for video phone management. User may setup/manage emergency IP video phone through PC, smart phone, and tablet device.

Firmware Upgradable Structure

The hardware architecture of AP-EVP70 is designed on programmable high-performance RISC CPU, so that the AP-EVP70 is capable of adopting new capabilities and improvement by downloading firmware from the website or setting its auto-upgrade option, you can always use the latest version of features without much effort.

AddPac IP Multimedia Telephony Total Solution

AddPac Technology is not just another vendor of IP emergency video phone, but provides various product families appropriate for your network environment. To meet your needs, AddPac supports IP-PBX, VoIP and media gateways, IP audio/video broadcast, and audio/video recording solutions, etc. In the future all IP-based multimedia telephony environment, various audio/video resources should be shared on an IP network; thus, the integration of the entire solution and that of solutions for each area are very important. AddPac IP-PBX is designed considering the integrated multimedia solution, and can meet your various needs.

The performance and reliability of AddPac IP-PBX, VoIP gateway series and multimedia network devices have been recognized in many global market places. IP emergency video intercom, which is a collection of experiences and know-how accumulated in the enterprise and service provider markets, would meet the needs of customers who ask for a next-generation IP emergency call center solution.

LAN Protocol	Static and IEEE 802.1Q VLAN Routing
WAN Protocol	Point-to-Point Protocol (PPPoE for ADSL), etc.
Video Service	Codec	H.264, MPEG4, H.263 etc
	Resolution	QCIF(176x144), CIF(352x288), QVGA(320x240), VGA(640x480)
	Frame Rate	Up to 30fps with VGA-Resolution
	Operating Bandwidth	128Kbps ~ 1Mbps
Audio Service & Signaling Protocol	Voice Codec - G.711, G.726, etc.
	SIP Signaling Stack Support
	Voice Processing Features Supports - VAD, DTMF, CNG, G.168
	Enhanced QoS Management Features for Voice Traffics
Network Management	Standard SNMP Agent (MIB v2) Support
	Traffic Queuing and Frame-Relay Flow Control
	Remote Management using Console, Rlogin, Telnet
	Web based Managements using HTTP Server Interface
Security Functions	Standard & Extended IP Access List
	Access Control and Data Protections
	Enable/Disable for Specific Protocols
	Multi-Level User Account Management
	Auto-disconnect for Telnet/Console Sessions
	PPP User Authentication Supports → Password Authentication Protocol(PAP) → Challenge Handshake Authentication Protocol (CHAP)
Operation & Management	System Performance Analysis for Process, CPU, Connection I/F
	Configuration Backup & Restore for APOS Managements
	Debugging, System Auditing, and Diagnostics Support
	System Booting and Auto-rebooting with Watchdog Feature
	System Managements with Data Logging
	IP Traffic Statistics with Accounting
Other Scalability Features	DHCP Server & Relay Functions
	Network Address Translation (NAT) Function
	Port Address Translation (PAT) Function
	Transparent Bridging (IEEE Standard) Function → Spanning Tree Bridging Protocol Support → Remote Bridging Support → Concurrent Routing and Bridging Support
	Cisco Style Command Line Interface(CLI) via Telnet
	Network time Protocol(NTP) Support

Presentation

AP-EVP70 Emergency Call IP Video Phone Presentation File
