IP-based Next-Generation IP-PBX

The front panel of AddPac IPNext100 Next Generation Network (NGN) IP-PBX supports LED displays of device status. Its rear panel supports FXS, FXO, and VoIP interfaces depending on options, and has two 10/100 Mbps Fast Ethernet ports, the RS-232C console port for Command Line Interface (CLI), and USB host mode interface port. The VoIP gateway interface on the rear panel can be connected to 2-port FXO and 2-port FXS VoIP interface ports, and supports media gateway features as well as IP-PBX features. The USB host mode port allows you to add the features of IP-PBX in addition to supporting the basic features by being connected either to USB-based memory such USB HDD, USB Flash Memory, and USB wireless LAN or to a network interface device. The call scenarios supported by IPNext100 provide SIP-based basic calls, color ring services, music on hold, blind transfer, call pickup, group call pickup, consult calls, switching calls, consult transfer, call waiting, call waiting notification, call park, call pickup remote, and hunt group. In addition to supporting small capacity voice mails that use internal flash memory, this product is designed to provide application services that require much memory such as voice/video mails using external USB memory such as USB Flash and USB HDD.

RTP Proxy Features

Since the enterprise network environments configured with an SIP server and IP phones require several IP phones, either IP Version 6 or a private IP address in the NAT environment must be supported to the enterprise networks due to the deficient resources of a public IP address. In such a private IP address environment, the RTP proxy feature is required for reliable multimedia communications between endpoint terminals.

The RTP proxy feature of IPNext100 is used to make a communication between a private IP terminal and a public IP terminal among endpoint terminals such as IP phones, make a communication between a private IP terminal and a public IP terminal in the NAT environment, make a communication between private IP terminals, make audio/video broadcasting in private and public IP environments, and to enable audio/video conference calls in private and public IP environments. The RTP proxy feature can operate regardless of VoIP signaling protocols such as H.323 and SIP, and supports dual address systems such as IP Version 4 and IP Version 6.

Intelligent IVR Features

One of the most important IP-PBX features is either ARS or IVR. Different IVR features are required by regular companies, government offices, and call centers respectively. AddPac IP-PBX solutions provide an IVR support tool to meet your requirements. Also, the solutions provide an IVR scenario editor to allow you to make and enable a desired call scenario.

Firmware Upgrade Enabled

Since the high-performance RISC CPU of IPNext100 is programmable, the features of IPNext100 can continue to be improved, changed, or added. If you download an added or changed feature from the home page directly or set an automatic upgrade option whenever feature addition or change is done, you can use the latest features without further operations.

Reliable IP-PBX Solution

IPNext 100 is an integrated network device that supports routing services, NAT/PAT, DHCP Server/Relay, and Quality of Service (QoS). If you want to adapt to a variety of network environments such as Metro Ethernet, Metro ATM, dedicated lines, flexible IP environments, and high-speed private subscriber networks such as xDSL, cable networks, and FTTH, advanced QoS and security features in addition to multiple network services should be supported. In this regard, IPNext 100 supports two 10/100 Mbps Fast Ethernet interfaces. Based on this support, IPNext 100 supports advanced LAN-to-LAN routing and bridge services as well as various network and security services such as NAT/PAT. AddPac IPNext 100 IP-PBX is a reliable solution built by using excellent technologies.

AddPac IP-PBX Total Solution

AddPac Technology is not just a vendor of IP-PBX, but provides various product families appropriate for your network environment. To meet your needs, AddPac supports VoIP and media gateways, audio/video terminals, PoE support switches, external audio/video MCU, IP audio/video broadcast, VoD solutions, network DVR, audio/video recording solutions, and traffic controller QoS device solutions. In the future all IP-based multimedia telephony environment, various audio/video resources should be shared on an IP network; thus, the integration of the entire solution and that of solutions for each area are very important. AddPac IP-PBX is designed considering the integrated multimedia solution, and can meet your various needs.
The performance and reliability of AddPac VoIP gateway series and multimedia network devices have been recognized in global markets. IPNext 100, which is a collection of experiences and know-how accumulated in the enterprise and service provider markets, would meet the needs of customers who ask for a next-generation IP-PBX solution.

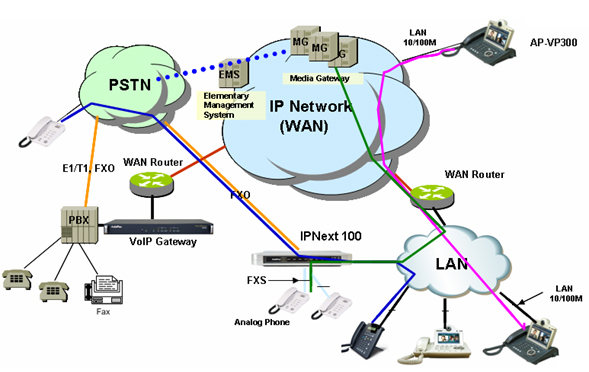

Network Diagram
