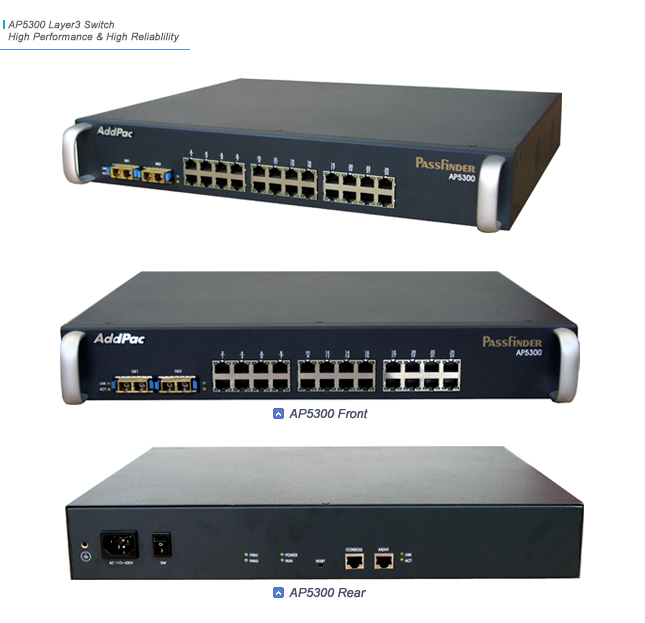

AddPac's intelligent Layer 3 switch, AP5300 targets enterprise networks with its ample and easy-to-operate features. Today, the edge networks are facing major challenges of applications requesting large bandwidth, desktop PCs with unprecedented computing capability and next-generation network appliances such as VoIP and IP phones. Enhanced adoptability, security, scalability and automatic QoS guarantee AP5300 as the perfect choice for rapidly emerging networking services.
Comprehensive Edge Network Solution
Network managers are confronting continued demands of the rapidly evolving networks. AddPac's AP5300 is optimized for BcN (Broadband convergence Network) with its higher adaptability, security, manageability and enhanced QoS. As the real edge network solution, AP5300 L3 switch offers distinct features as presented below.
Enterprise-level Layer3 Switch
AP5300 delivers advanced features such as enhanced QoS, security access control list, multicast management, dynamic IP routing, to name a few. Based on these features, middle and large scale work groups are enable to enjoy cutting-edge multi-layer switching service. Also, by implemented as broadband LAN access solution, it delivers both intelligent routing and secured communication service.
Enhanced QoS and Security
For the time-sensitive traffic such as IP telephony and video, AP5300 is an ideal solution with is port-based bandwidth control and auto QoS feature which realizes optimum traffic queuing by monitoring IP phones and V2oIP gateway to ensure maximum performance of these equipment. Moreover, in terms of security, it blocks unauthorized access and manages the user-level.
Robust Service Management Options
AP5300 allows the customers to effectively manage it via web browser. Without CLI-mode commands, users can control almost all of the intelligent features easily. Also, Telnet and Serial Console mode are supported for comprehensive in-band management.

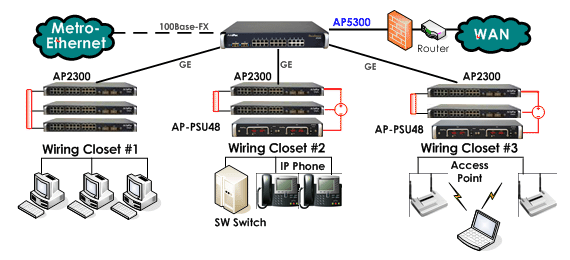

More Differentiated Service; as Backbone Switch
The user can even deploy AP5300 as a backbone switch in small and middle scale sites. With its dual Gigabit Ethernet interfaces, it flexibly supports uplink stacking, thus realizes easy port augmentation. Also, its wiring closet is easily operates with core switch via GBIC module offering high-speed connectivity via 2-port 1000Base-X.
Ethernet Interface: 24-port 10/100Base-TX
Uplink Interface: 1000Base-X GBIC
High Performance RISC Processor
Automatic QoS feature for optimized streaming packet service
