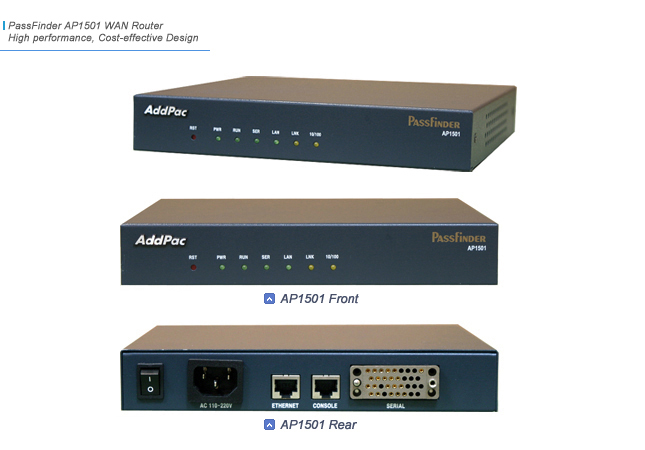

PassFinder AP1501 dedicated line router provides high-performance IP-routing connectivity for small enterprise, government and other public offices as well as Internet game room and Internet based cyber apartment. Moreover, the AP1501 router is able to guarantee almost 100% line utilization with E1/T1(2,048/1,544Mbps) data networking speed for high-speed Internet connectivity via WAN-to-LAN Routing
In addition, AP1501 router supports various WAN protocols such as X.25, PPP, Frame-Relay, HDLC, including Static, RIP v1/2, OSPF v2 routing protocols and network management features such as SNMP MIB v1/2, CLI, etc. This router is typically fixed configuration with the following interface: 10/100Mbps fast Ethernet, a single synchronous serial port (V.35 serial interface), asynchronous serial Port for console.
APOS Internetworking Software for AP Router
AddPac PassFinder Operating System (APOS) is best router software to provide scalability, reliability, stability, and QoS for internetworking solutions. APOS also provides optimized performance and industry standard network functionality with easy-to-use, easy-to-installation, and maintenance.

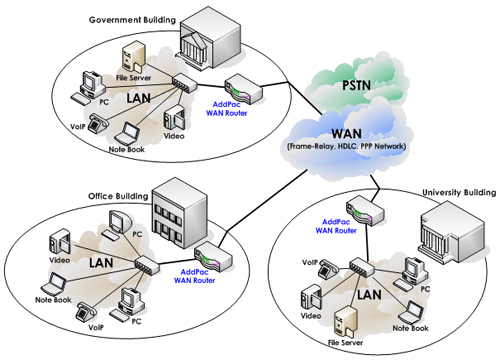

Network Diagram
Standard WAN-to-LAN Router for Data Networking Applications Multi-protocol Routing Solutions between WAN and LAN Access Powerful 32bit RISC Microprocessor Architectures Fixed a Single Fast Ethernet & Serial (WAN) Port for E1/T1 Data Link AddPac APOS Internetworking Software to provide Scalability, Functionality, Stability, and QoS Control for AddPac Router High-performance IP-Routing Capability with Reliability Static, RIP v1/2, OSPF v2, and IEEE 802.1Q VLAN Routing Protocols X.25, PPP, Frame-Relay & HDLC Protocols Traffic Queuing, F/R Flow Control, and SNMP MIB v1/2 for Network Management Features Standard & Extended Access List for Security Functions Supporting NDP(Network Discovery Protocol) offering physical network connection information and management feature Essential Scalability Features such as DHCP Server & Relay, NAT/PAT, IEEE Transparent Bridging, IP Accounting, and Debugging/Diagnostics, etc. Remote Software Upgrade using FTP & TFTP Compact Size Design
Microprocessor
· CPU
32bit RISC Microprocessor
Memory
· Flash Memory
2Mbyte
· Main Memory
16Mbyte High-Speed SDRAM
· Boot Memory
512Kbyte Flash Memory
Network Interface
· Fixed WAN Port
One(1) E1/T1 Serial Port
· Fixed LAN Port
One(1)10/100BaseTx Ethernet
· Console Port
One(1) RS-232C Interface
Power & Operation Environments
· Power Requirement
VAC 110~220V, 50/60Hz, 15Watt
· Operating Temperature
0°C to +50°C (32° to 122°F)
· Storage Temperature
-40°C to +85°C (-40° to 185°F)
· Relative Humidity
5% to 95% (Non-condensing)
Dimension
· H x W x D (mm)
36mm x 215mm x 208mm
· Weight (Kg)
1.3Kg
IP Routing Protocols
Static, RIP v1/2 ,OSPF v2, and IEEE 802.1Q VLAN Routing
WAN Protocols
X.25 Standard Protocol Support
Point-to-Point Protocol (PPP)
Frame-Relay PVC with Inverse ARP
High-level Data Link Control (HDLC) Protocol
HDLC Encapsulation (Interoperability with CISCO HDLC)
System Performance Analysis for Process, CPU, Connection I/F
Configuration Backup & Restore for APOS Managements
Debugging, System Auditing, and Diagnostics Support
System Booting and Auto-rebooting with Watchdog Feature
System Managements with Data Logging
IP Traffic Statistics with Accounting
Other
Scalability
Features
DHCP Server & Relay Functions
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging (IEEE Standard) Function
→ Spanning Tree Bridging Protocol Support
→ Remote Bridging Support
→ Concurrent Routing and Bridging Support
Standard WAN-to-LAN Router for Data Networking Applications
