AP-SNC2000 Smart Sensor Network Controller is an enterprise centralized sensor network controller for multiple smart Zigbee/Zwave sensor hub systems like as AddPac AP-SH50, etc. AP-SH50 smart hub for zigbee/zwave sensors is an IP connectivity device for zigbee/zwave sensor devices. It uses LAN interconnection feature, providing an excellent scalability by interworking with various zigbee/zwave sensor devices.
AP-SNC2000 Smart Sensor Network Controller and AP-SNC2000 application software for smart phone will help to connect to various zigbee/zwave based sensors, light switches, thermostats, and other devices via AddPac smart sensor hub systems.
A smart sensor hub system is compatible with zigbee/zwave base smart sensors from various manufactures, so smart hub can easily add new smart sensor devices in your smart sensor network like as at enterprise application, outdoor collaboration application, etc.
Total Solution for Smart Sensor Device Application (Smart Security for Enterprise, Factory, etc)

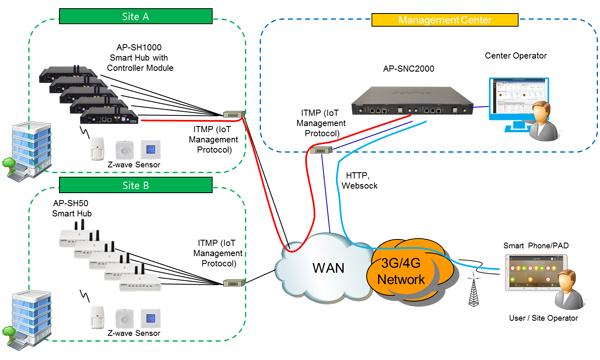

AddPac smart sensor network controller solution is to control zigbee/zwave smart sensor devices, to control the visitor access through SIP video door phone which can be installed at enterprise or factory entrance, and to monitor IP camera video with internet connectivity. AddPac smart enterprise sensor equipment solution consists of smart sensor network controller, sip video door phones, smart hubs for zigbee/zwave sensor devices, various zigbee/zwave based sensor devices, video phones for security guard, and smart pad/tab and smart phone appl, to provide an excellent scalability.
Firmware Upgradeable Structure
AP-SNC2000 RISC CPU is programmable structure so that user may use the latest features without much effort by simply setting an auto upgrade option or download from the homepage.
Smart Web Manager Function
AP-SNC2000 is embedded with smart web manager for easy control of multiple smart sensor hubs. User may setup/manage smart sensor hub systems via AP-SNC2000 through PC, smart phone, and tablet device application software.
AddPac various VoIP, Video and multimedia products are well recognized in terms of performance and stability throughout the world. With our accumulated experience in enterprise market and communication market, AP-SNC2000 and smart sensor hub system will satisfy the needs of customer along with AddPac smart senor application solution.
Multiple Smart Hub Support for Zigbee/Zwave
Embedded H/W Platform with Dual CPU Module Slots
Fault Tolerant and Reliability Service
Support RTP based Video Door Phone Control
Support RTSP based Network Video Encoder (Video
Codec, IP camera, etc)
Mini Call Manager Function for Smart Phone,
Web Server function for Smart Tab, Smart Phone
Two(2) Module Slots for Smart Sensor Network
Control Service Module
Smart Sensor Network Control Module
Two(2) Port 10/100/1000Mbps Gigabit Ethernet
One(1) RS232C Interface
Power VAC 110~220V, 50/60Hz, 5V 8A
0°C to + 50°C (32° to 122°F)
-40°C to + 85°C (-40° to 176°F)
5% to 95% (Non-condensing)
Dimensions(H x W x D)
56mm x 440mm X 360mm
Static and IEEE 802.1Q VLAN Routing
Smart Sensor Network Control Service
Smart Sensor Hub Systems
Multiple Smart Sensor Hub System Support
Web Server Function for Smart Phone, Tab, etc
SIP Signaling Support
RTP Protocol Support
Mini Call Manager Support
Video Streaming Service
RTSP Streaming Protocol
RTSP based Streaming Service
Session Description Protocol (SDP)
302 Moved Temporarily,
REDIRECT method (Optional, when the client
