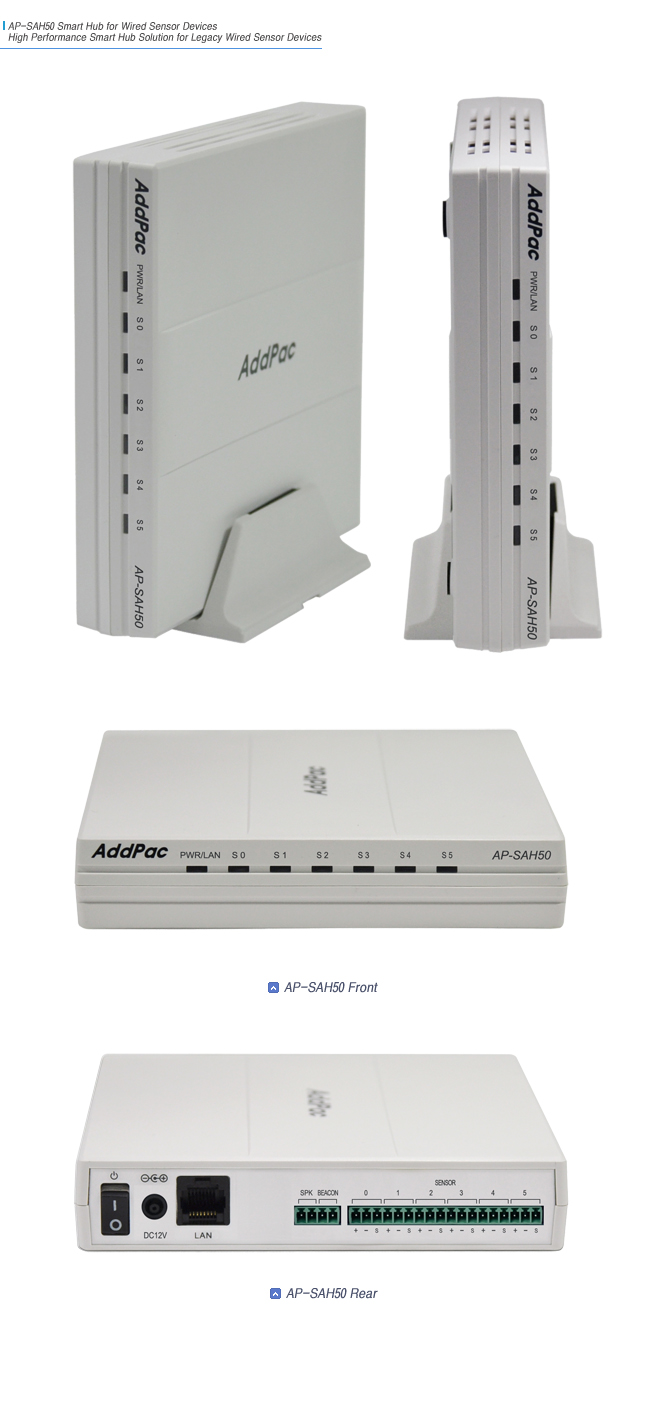

AP-SAH50 smart hub for wired sensor devices is an IP connectivity device for legacy wired sensor devices. It uses LAN interconnection feature, providing an excellent scalability by interworking with various legacy wired sensor devices. AP-SAH50 smart hub and AP-SAH50 application software for smart phone will help to connect to various wired based sensors, motion sensors, door lock sensors, and other devices. AP-SAH50 smart hub supports 6-port legacy wired sensor interface.
Total Solution for Legacy Wired Sensor Device Application (Smart Home, Smart Security, etc)
AddPac smart home equipment solution is to control legacy wired sensor devices, to control zigbee/zwave smart home sensor devices, to control the visitor access through SIP video door phone which can be installed at the home entrance, and to monitor the smart home IP camera video with internet connectivity. AddPac smart home equipment solution consists of smart wall pad(AP-VWP80, AP-VWP100), sip video door phones, smart hub for zigbee/zwave sensor devices, smart hub for legacy wired sensor devices, video phones for security guard, and smart pad/tab and smart phone appl, to provide an excellent scalability.
Firmware Upgradeable Structure
AP-SAH50 RISC CPU is programmable structure so that user may use the latest features without much effort by simply setting an auto upgrade option or download from the homepage.
Smart Web Manager Function
AP-SH50 is embedded with smart web manager for easy control of smart hub. User may setup/manage smart hub through PC, smart phone, and tablet device.
AddPac various VoIP, Video and multimedia products are well recognized in terms of performance and stability throughout the world. With our accumulated experience in enterprise market and communication market, AP-SAH50 will satisfy the needs of customer along with AddPac smart senor application solution.

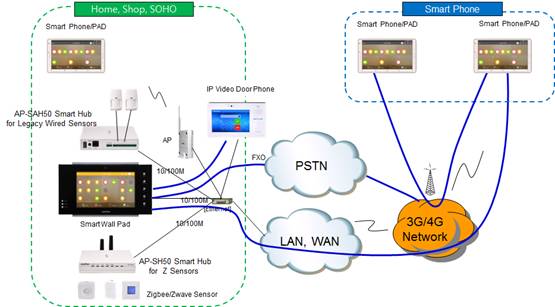

Network Diagram
Overall Features
Smart Hub Solution for Wired Sensor Devices
Support various Legacy Wired Sensor Devices
Wired Sensor Network to IP connectivity support
6-Port Wired Sensor Interface Support
High Performance Programmable RISC Processor
Smart Web Manager
Network interface: 10/100Mbps fast Ethernet
interface x 1
Smart Phone Application Software Support
Optional PoE Support
CPU
High Performance RISC H/W Architecture
Network Interface Module
LAN Port
One(1) 10/100Mbps Fast Ethernet
Sensor Interface
Wired Type
6-Port Wired Sensor Interface (Alarm Input, DC
power output(+,-)),Speaker, Beacon Interface
Power Requirement
External Power VAC 110~220 VAC, 50/60Hz, 12V 3A
PoE (Power over Ethernet)
IEEE802.3af compliant
Input voltage range 36V to 57V
Short-circuit Protection
