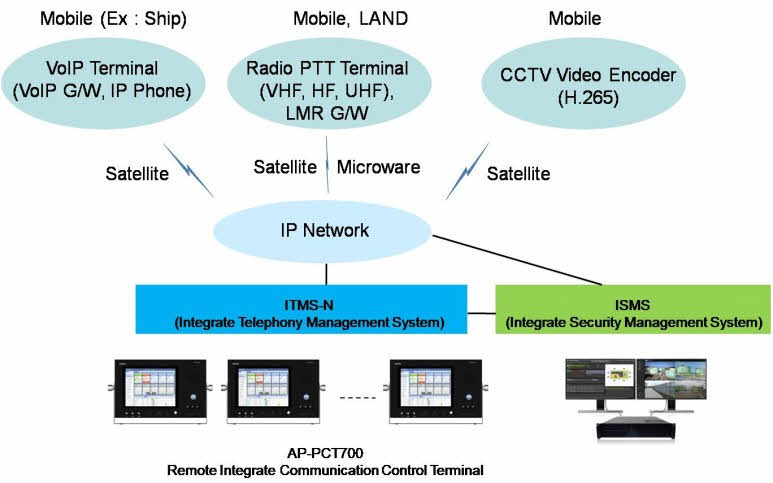

AddPac RoIP solution consists of AP-LMR500 LMR gateway, AP-PCT700N RoIP dispatcher, and Integrate Telephony Management System ITMS server.

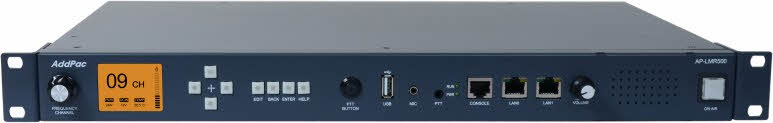

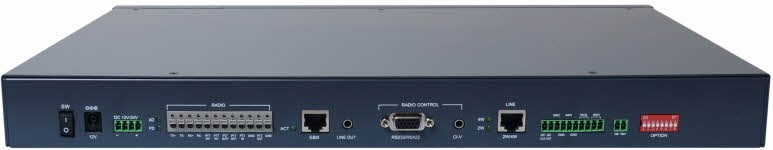

AP-LMR500 next generation LMR gateway provides an optimal level of radio over IP service when it interoperates with conventional radio device. AP-LMR500 LMR gateway provides high-performance radio over IP service by interworking AddPac server and PTT IP terminals.
19inch rack mountable AP-LMR500 supports remote frequency control rotary switch, color TFT LCD, PTT button, MIC input, PTT Hand MIC, volume control rotary switch, etc.

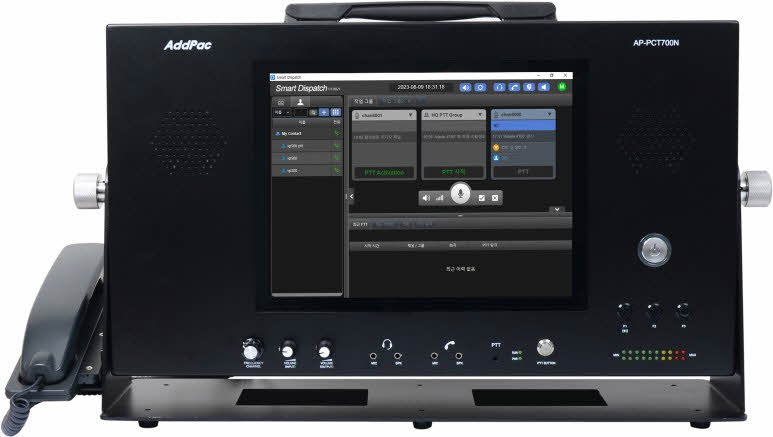

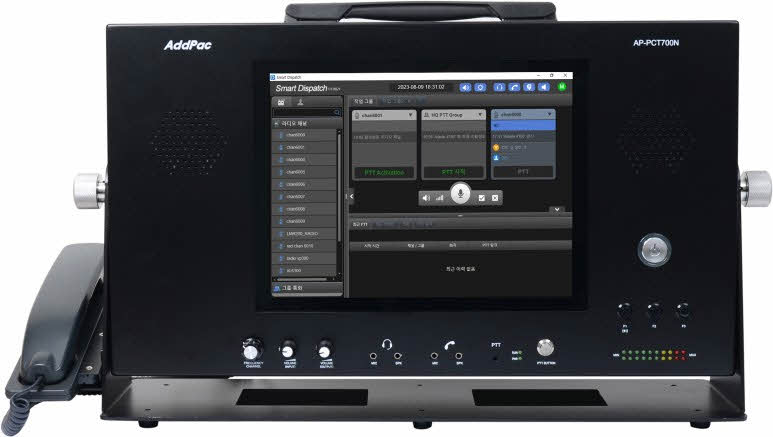

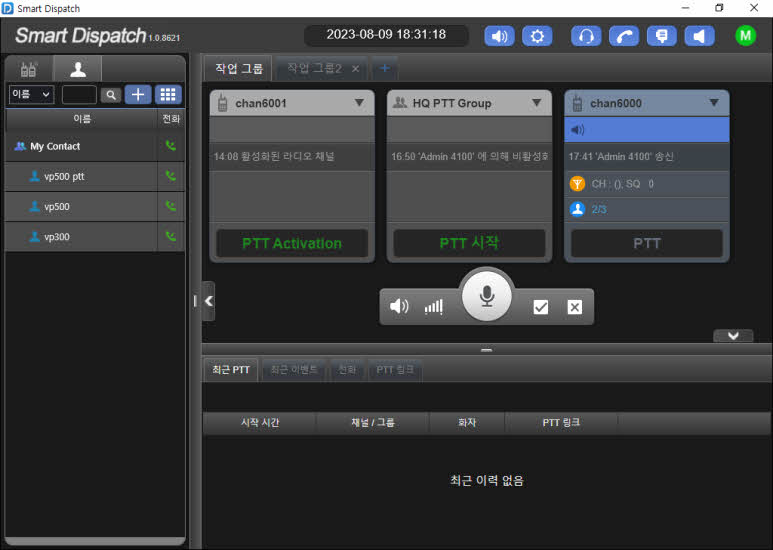

AP-PCT700N smart RoIP dispatcher connects, controls and manages various PTT groups like LMR gateway, VoIP gateway and PTT IP phone in RoIP network.
AP-PCT700N supports PTT service using dual speakers, a handset, headset and a PTT dedicate MIC. And it supports volume control switch for Handset, PTT and internal speaker.

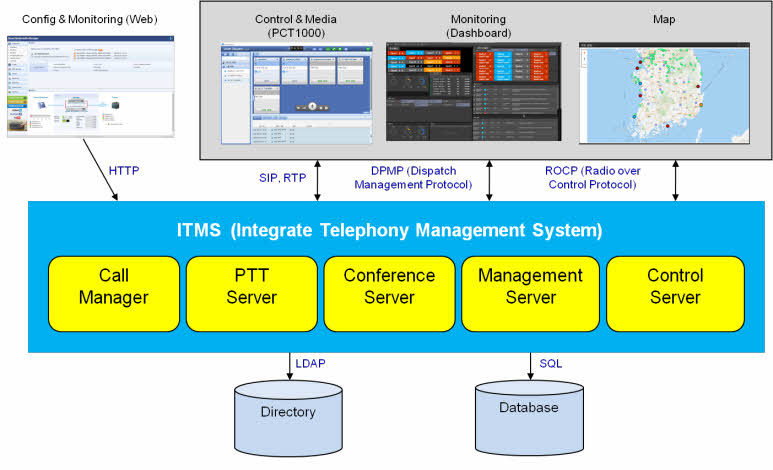

AddPac ITMS is software based call control, recording, and management server for VoIP and Radio Telephony Integrated service. ITMS software package supports SIP call manager server and push-to-talk PTT server. Also, ITMS supports fault tolerant redundancy scheme and dark and black user interface (UI) for management.
Demonstration
1. PTT call from AP-PCT700N RoIP dispatcher to radio
2. PTT call from radio with AP-LMR500 RoIP gateway to the other radio
